  5. HDMI USB Android LCD Controller Board for 18.5" G185HAN01.0 40P TTL LCD Screen lcd controller board hdmi hdmi lcd controller board hdmi controller for lcd
Print This Page
HDMI USB Android LCD Controller Board for 18.5
HDMI USB Android LCD Controller Board for 18.5
HDMI USB Android LCD Controller Board for 18.5
HDMI USB Android LCD Controller Board for 18.5
HDMI USB Android LCD Controller Board for 18.5
HDMI USB Android LCD Controller Board for 18.5
HDMI USB Android LCD Controller Board for 18.5
HDMI USB Android LCD Controller Board for 18.5
HDMI USB Android LCD Controller Board for 18.5
HDMI USB Android LCD Controller Board for 18.5
HDMI USB Android LCD Controller Board for 18.5

HDMI USB Android LCD Controller Board for 18.5" G185HAN01.0 40P TTL LCD Screen lcd controller board hdmi hdmi lcd controller board hdmi controller for lcd

Model NO.
K002530-VS-TY2660H-V818 for LQ123K1LG03
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
LCD Controller Board:
HDMI USB Android LCD Controller Board Work for LVDS 40Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
Come In Standby Model When Not Input Signal
Standby Model <1W

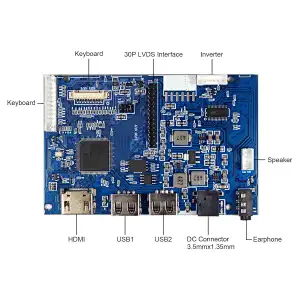

Video Input: HDMI1.4 USB
USB Port:
Support Video Play
Support WIFI Module
Support Connect Keyboard and mouse
Support 5Vdc 500mA output
Support OS Android Screen projection via USB Cable or wifi Module
Audio Input: HDMI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

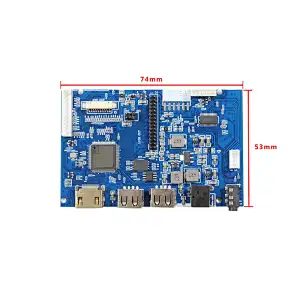

Board Size: 74mm x 53mm x 12mm

Compatible Work With:
18.5inch 1920x1080
G185HAN01.0

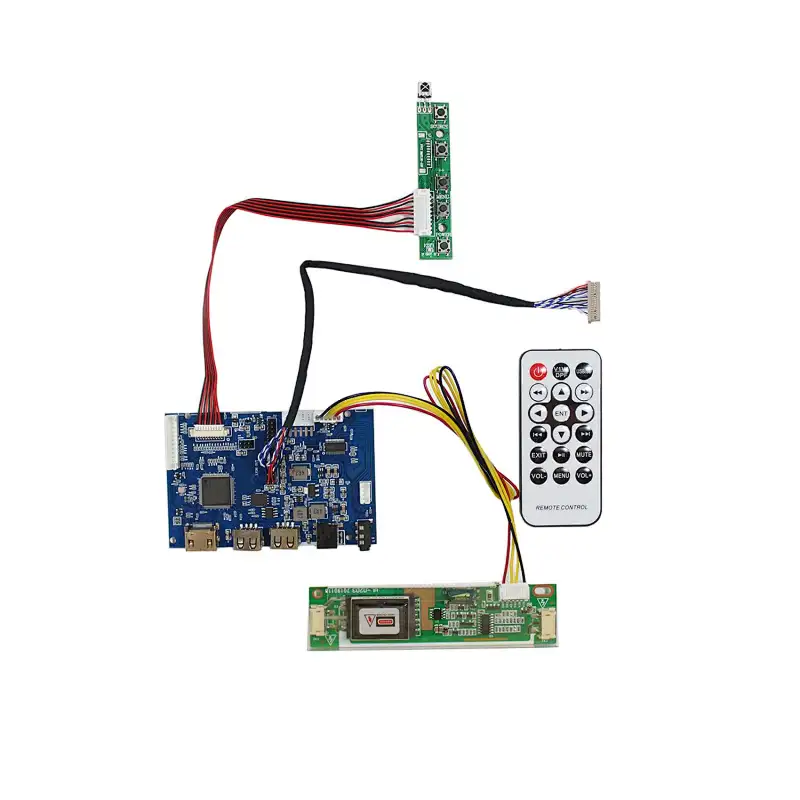

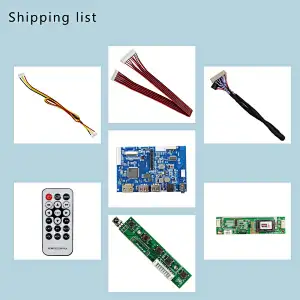

Packing list:
1× HDMI Audio LCD Controller Board VS-TY2660H-V818
1× LVDS Cable
1× Backlight Cable
