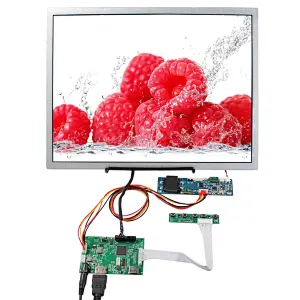

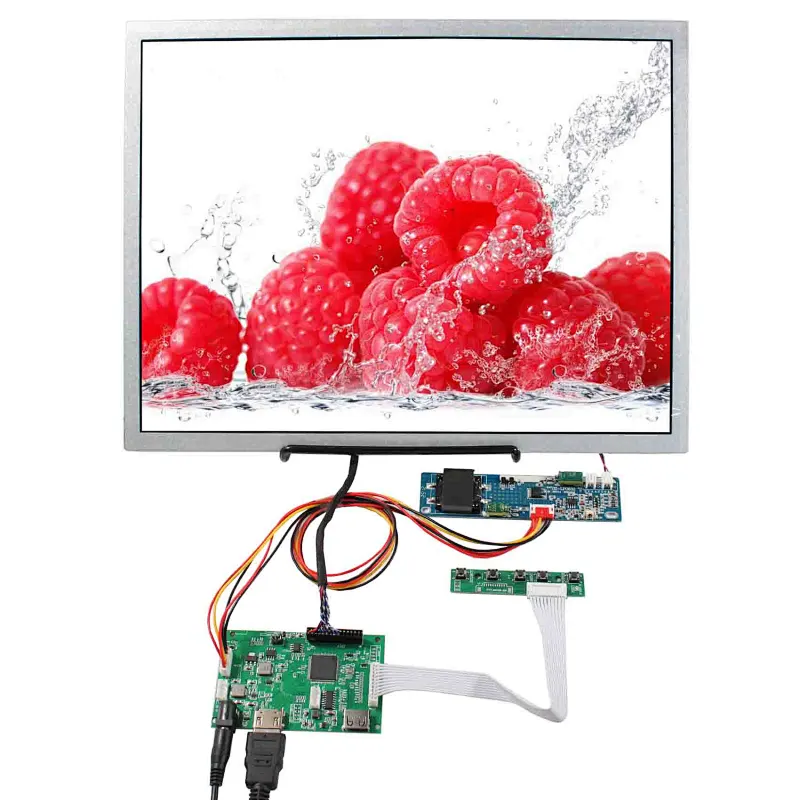

HDMI.USB LCD Board for 30Pin LVDS TFT 15" G150XVN01.0-1000nits 1024x768 tft lcd

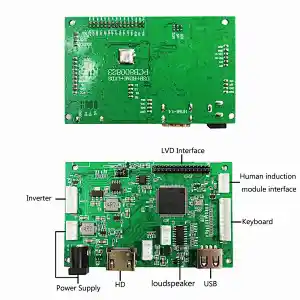

 LCD Controller Board:

HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS

Interface LCD Screen

Input Power Adapter: 12Vdc More than 5A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Voltage To LCD Panel： 3.3V 5V 12V (Jumper optional)

Video Input: HD-MI USB

HD-MI: Support HD-MI 1.4

USB: Support Video Playback, Picture Playback, Text Playback

Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and

plugged into the USB of the driver board, the power can be upgraded, and it will automatically

restart after completed)

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 90.7mm x 57.3mm x 14mm

15"G150XVN01-1000 1024x768 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1024X（RGB)×768

Outline Size 326.5×253.5×10.1mm (H×V×D)

Display Area 304.128× 228.096mm (H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10

Signal Interface Parallel LVDS (1 ch, 8-bit), 30 pins ,

Backlight WLED

Input Voltage 5V (Typ.)

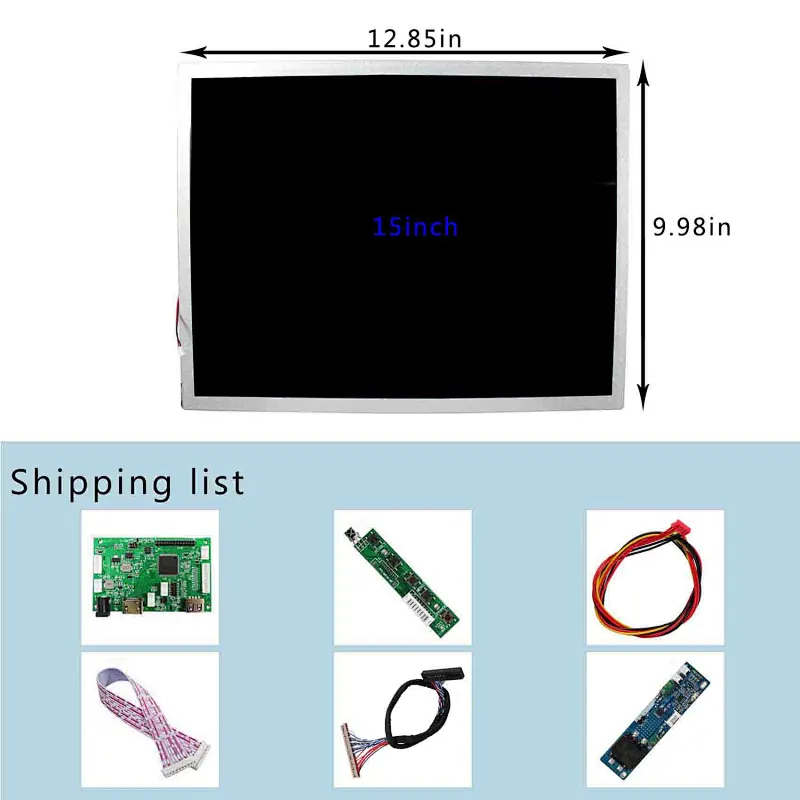

Packing list:

1× HD-MI USB LCD Board for 30Pin VS-TY2660HU-823

1×15inchG150XVN01 -1000 1024x768 LCD Screen

1× Inverter Board

1× LVDS Cable

1× Keyboard With Cable
