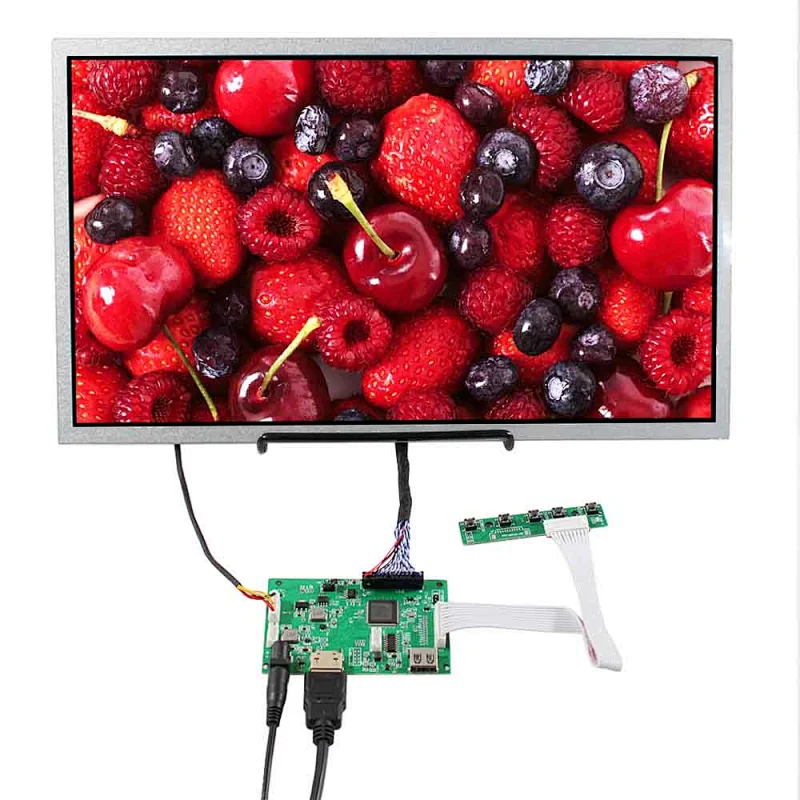

HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board
HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board
HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board
HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board
HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board
HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board
HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board
HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board
HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board
HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board
HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board

HDMI USB LCD Controller Board With 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 USB lcd controller board

Model NO.
K003041-VS-TY2660HU-823+G156HTN02.1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
LCD Controller Board:
HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HD-MI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 56mm x 14mm

15.6"1920X1080 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920(RGB)×1080, FHD, 141PPI
Outline Size 363.8(W)×215.9(H) ×12.5(D) mm
Display Area 344.16(W)×193.59(H) mm
Brightness 400 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 3.3V (Typ.)

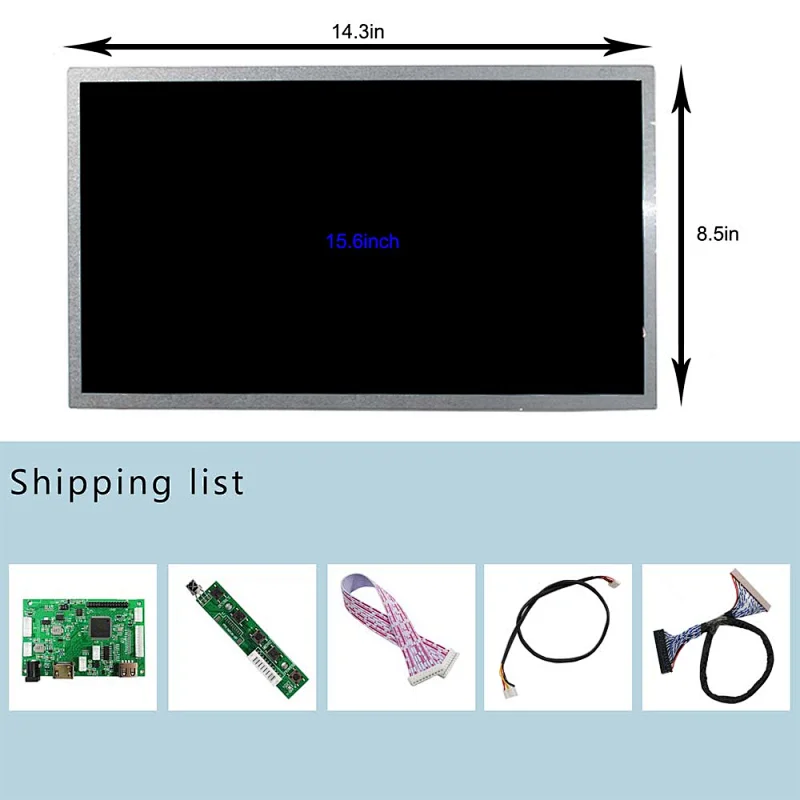

Packing list:
1× HD-MI LCD Board for 30Pin VS-TY2660HU-823
1×15.6"1920X1080 LCD Screen
1× Inverter Board
1× Backlight Cable
1× Keyboard With Cable
