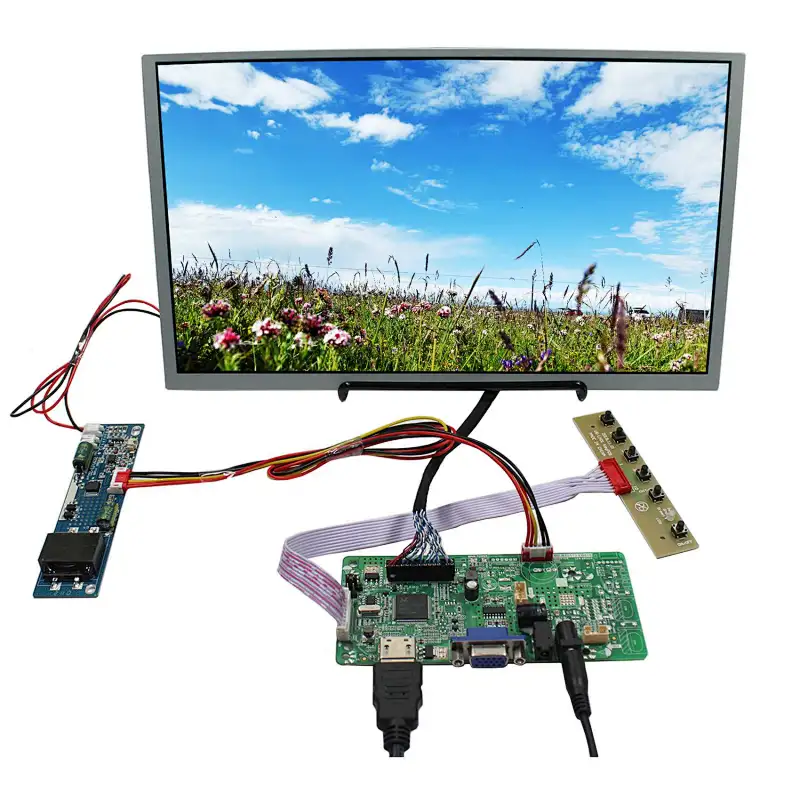

HDMI VGA Audio LCD Board for 30Pin LVDS Interface 13.3" TFT LCD Screen 1000 Brightness

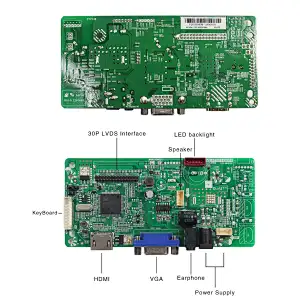

 LCD Controller Board:

HD-MI VGA Audio LCD Board for 30Pin LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <0.2W

Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)

Video Input: HD-MI VGA

VGA: Earphone Input

HDMI: Support HD-MI 1.4

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

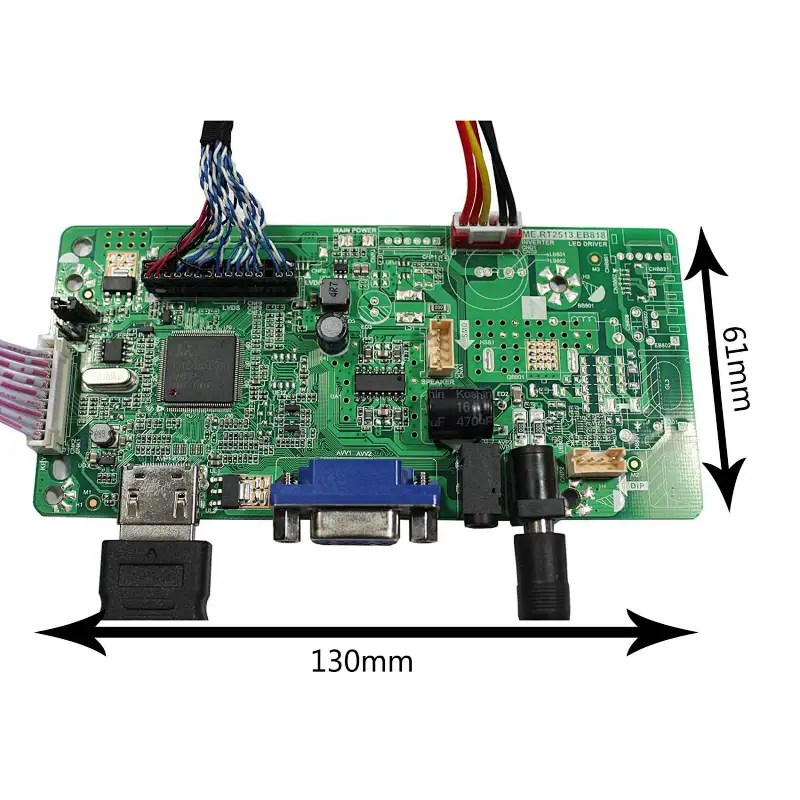

Board Size: 130mm x 61mm x 12mm

13.3"LQ133M1LW02-1000 1920X1080 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 1920RGB)×1080

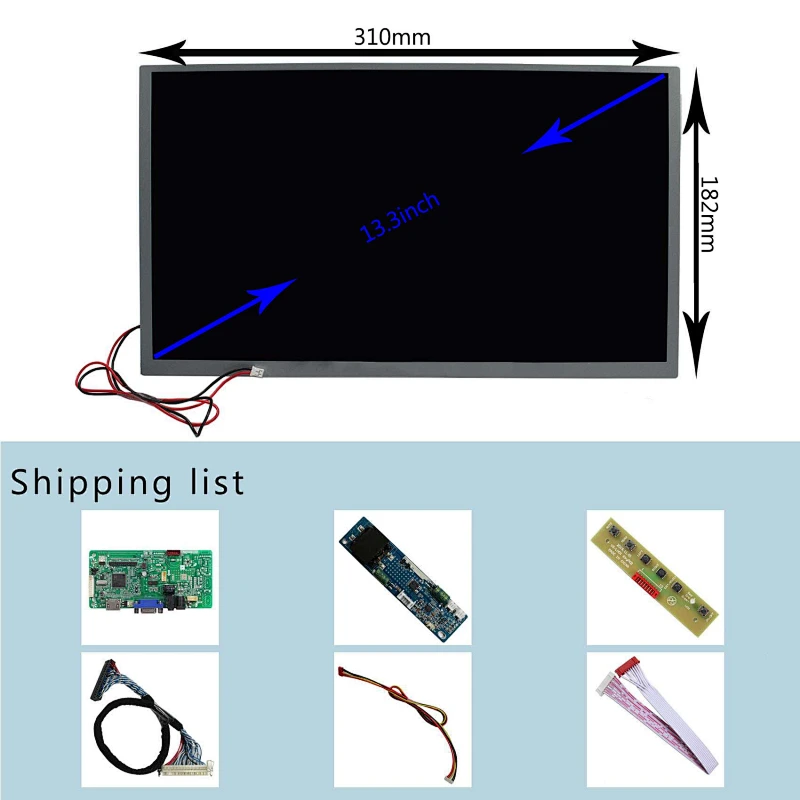

Outline Size 310.6(H)×182.2(V)×13.1(D) mm

Display Area 293.76(H)×165.24(V) mm

Brightness 1000 cd/m²(Typ.)

Contrast Ratio 900:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10)

Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector

Backlight  WLED

Input Voltage  5.0V (Typ.)

Packing list:

1× HD-MI VGA LCD Controller Board RT2513-818

1× 13.3" LQ133M1LW02-1000 1920X1080 LCD Scree

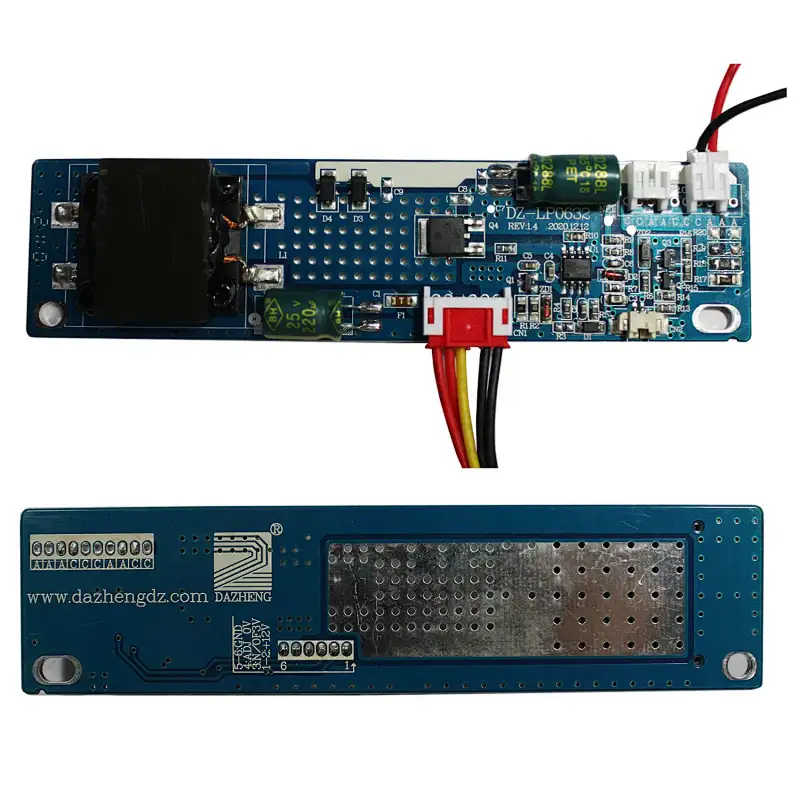

1× Converter Board

1× LVDS Cable

1× Keyboard With Cable
