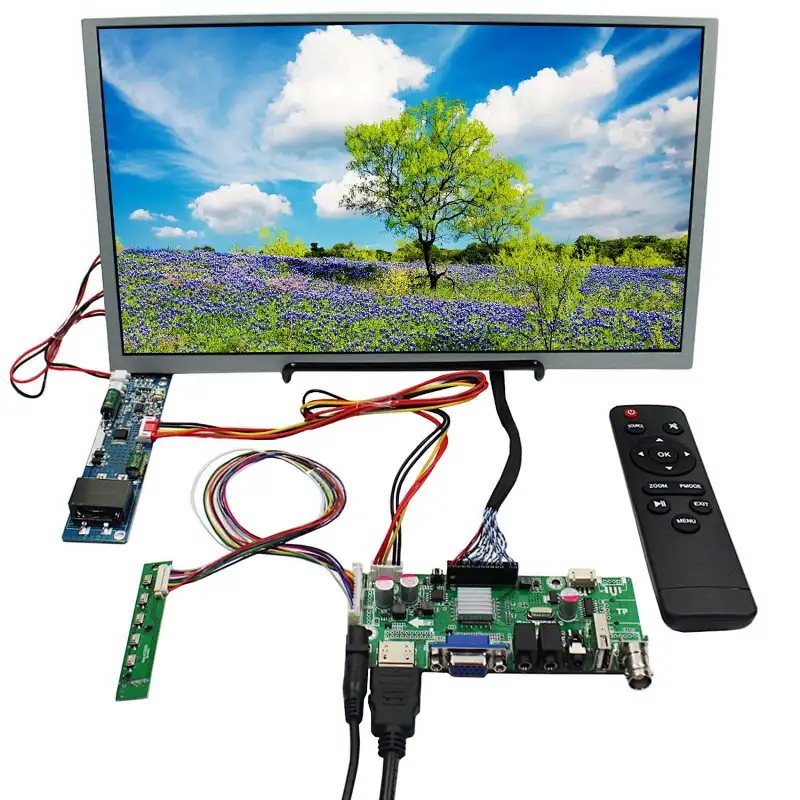

HDMI VGA AV USB LCD Board Work for LVDS LCD Screen LQ133M1LW02 13.3inch tft lcd screen

 LCD Controller Board:

HD-MI VGA  AV USB LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

HD-MI Port Support Transform Audio Compatible With HD-MI 1.3/1.4，HDCP 1.2

USB Support Video

AVCompatible With PAL And NTSC

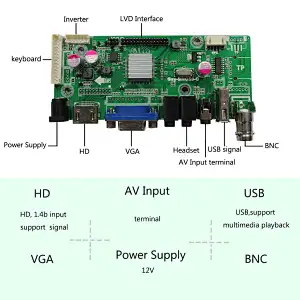

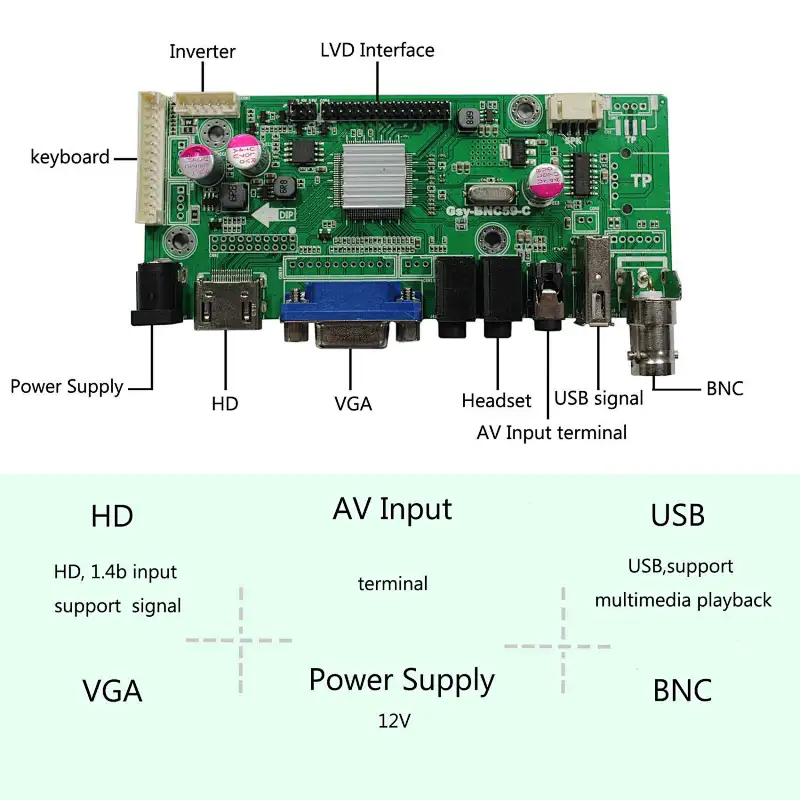

Video Input: HD-MI VGA AV USB

Audio Input: HD-MI PC-Audio

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

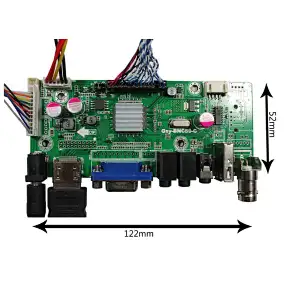

Board Size: 122mm x 52mm x 17mm

13.3"LQ133M1LW02-1000 1920X1080 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 1920RGB)×1080

Outline Size 310.6(H)×182.2(V)×13.1(D) mm

Display Area 293.76(H)×165.24(V) mm

Brightness 1000 cd/m²(Typ.)

Contrast Ratio 900:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10)

Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector

Backlight  WLED

Input Voltage  5.0V (Typ.)

Packing list:

1× HD-MI+VGA+AV+USB LCD Controller Board VS-V59AV-V2

1× 13.3" LQ133M1LW02-1000 1920X1080 LCD Scree

1× Converter Board

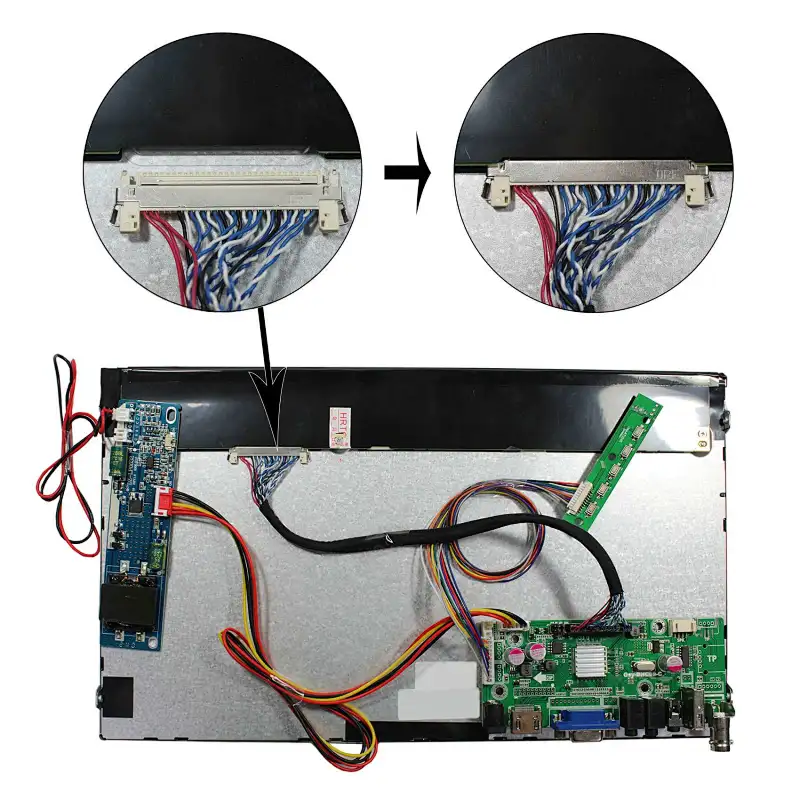

1× LVDS Cable

1× Keyboard With Cable
