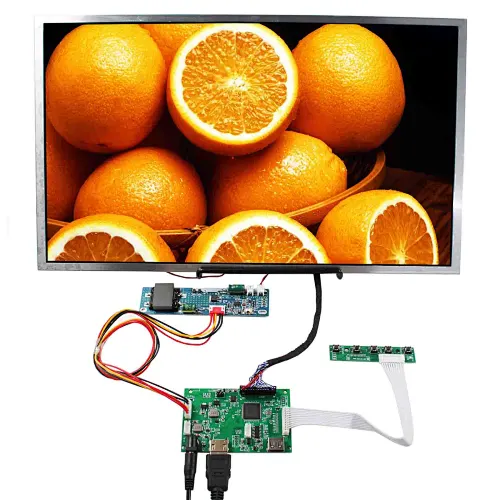

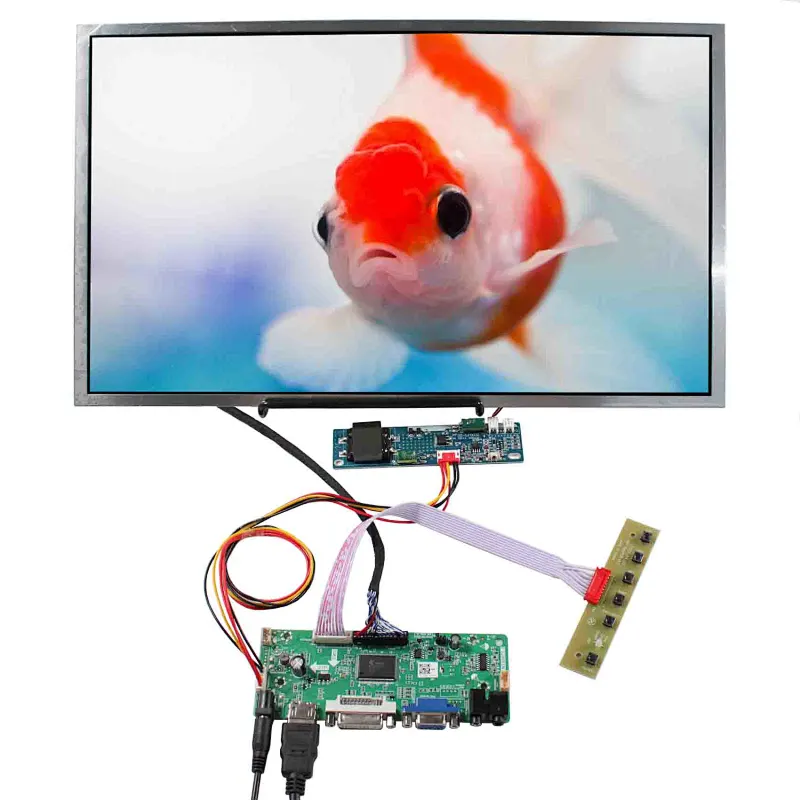

M.NT68676 hdmi board with17.3" VS173GF-1000nits 1920X1080(G173HW01.V0) tft lcd screen

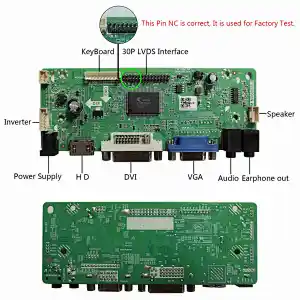

 LCD Controller Board:

HD DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 3A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD DVI VGA

Audio Input: HD

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

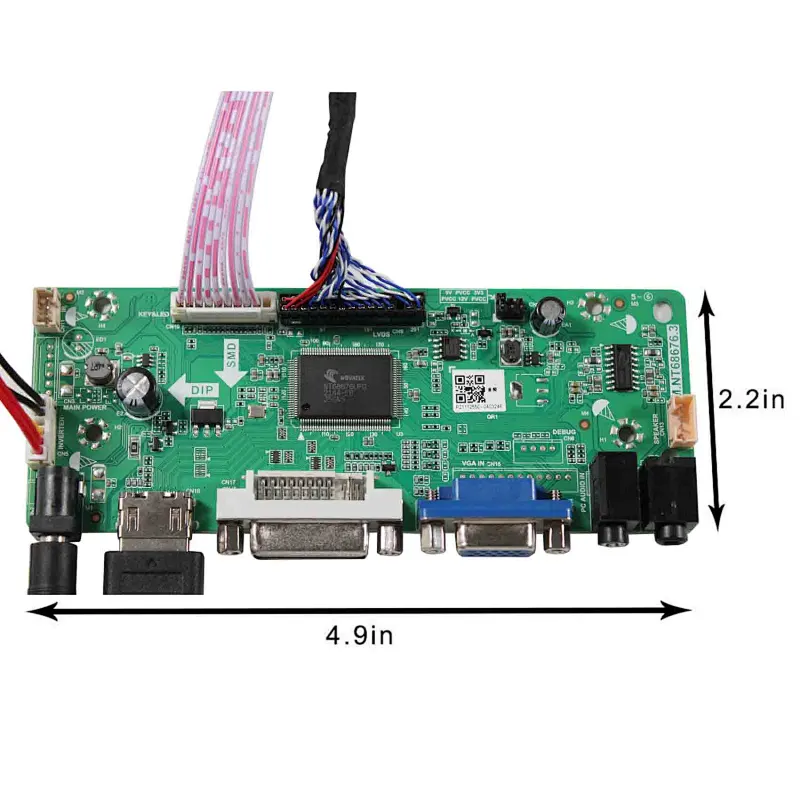

Board Size: 125mm x 53mm x 17mm

17.3"VG173GF -1000 1920x1080 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1920X（RGB)×1080

Outline Size 403×240×13 mm (H×V×D)

Display Area 381.888× 214.812 mm (H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 80/80/609/80 (Typ.)(CR≥10

Signal Interface Parallel LVDS (2ch, 8-bit) ,30 pins ,

Backlight WLED

Input Voltage 5V (Typ.)

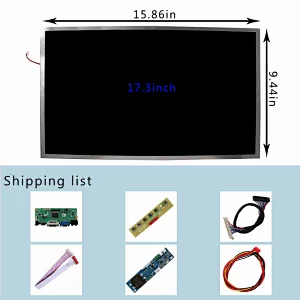

Packing list:

1× HD VGA DVI LCD Controller Board M.NT68676

1× 17.3inch VS173GF -1000 1920x1080 LCD Screen

1× Inverter Board

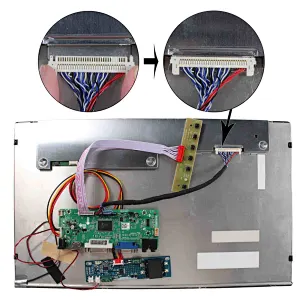

1× LVDS Cable

1× Keyboard With Cable
