10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board

10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board

Model NO.
K002804 T.SK105A.03+G104SN03-1000 800X600 1000nit
Minimum order quantity:
1
Quantity:
LCD Controller Board:
HD-MI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HD-MI 1.3/1.4，HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HD-MI VGA AV USB RF
Audio Input: HD-MI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

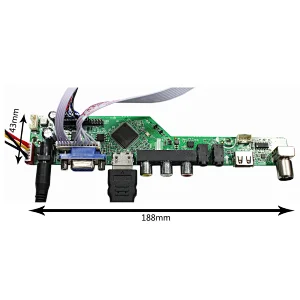

Board Size: 188mm x 43mm x 17mm

10.4" G104SN03-1000 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 236 ×174.3×4.9 (H×V×D)
Display Area 211.2 ×158.4 (H×V)
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

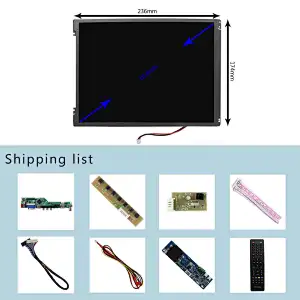

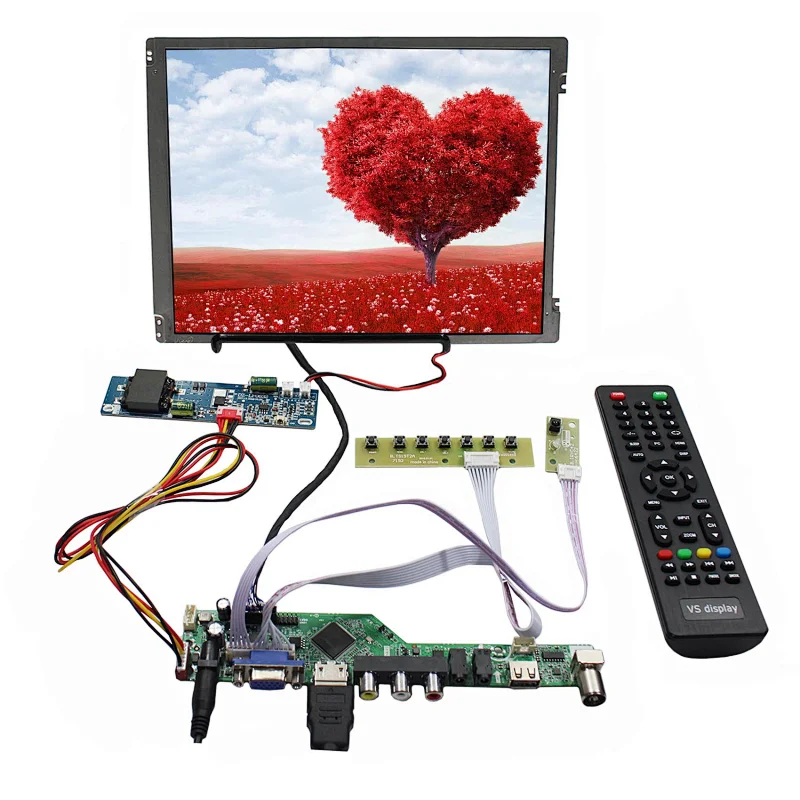

Packing list :
1× HDMI VGA AV USB RF LCD Controller Board T.V56.03
1×10.4inch G104SN03-1000 800X600 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
