HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen

HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen

Model NO.
K002806 KYV-N5 V3+G104SN03-1000 800X600
Minimum order quantity:
1
Quantity:

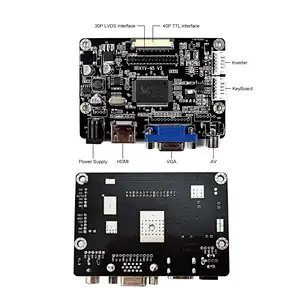

LCD Controller Board:
HD-MI VGA AV LCD Board Work for LVDS Interface LCD Screen
40Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

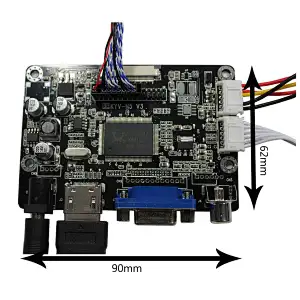

Board Size: 90mm x 62mm x 15mm

10.4" 1000nit  800X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 236 ×174.3×4.9 (H×V×D)
Display Area 211.2 ×158.4 (H×V)
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

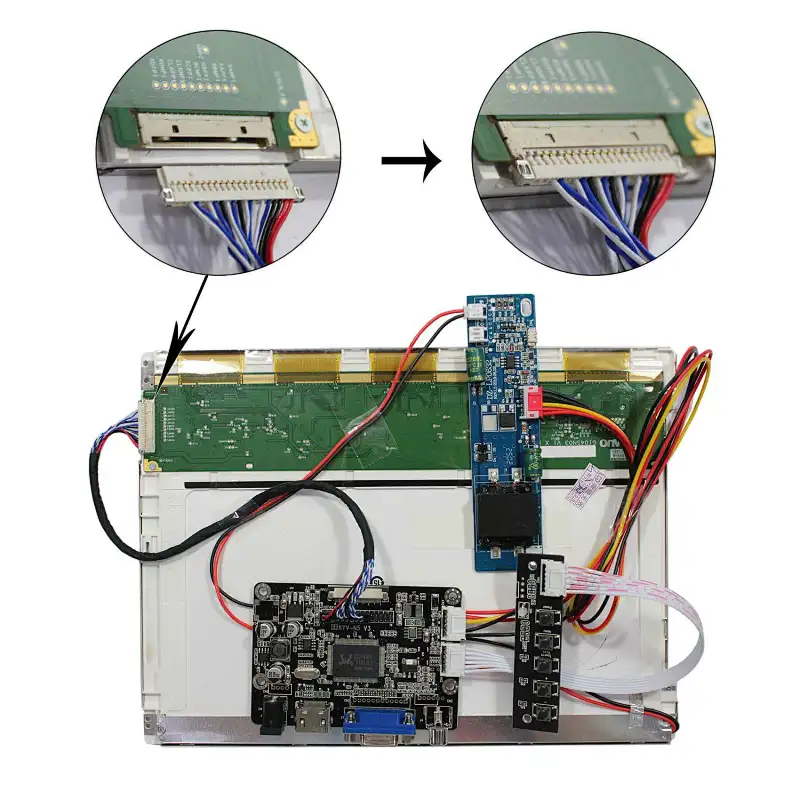

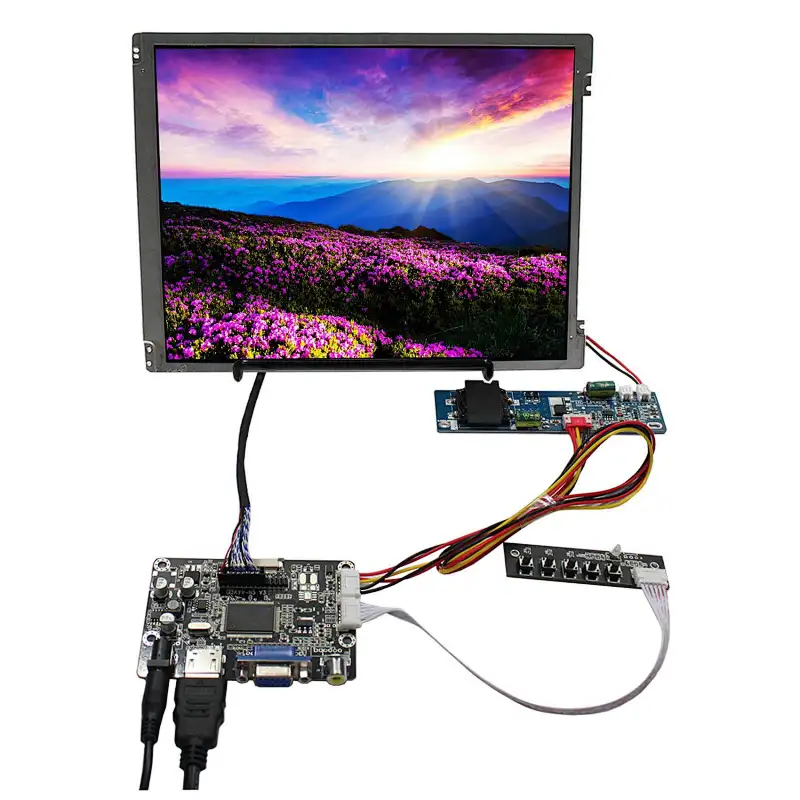

Packing list :
1× HD-MI VGA AV LCD Controller Board KYV-N5 V3
1×10.4inch 1000nit 800X600 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
