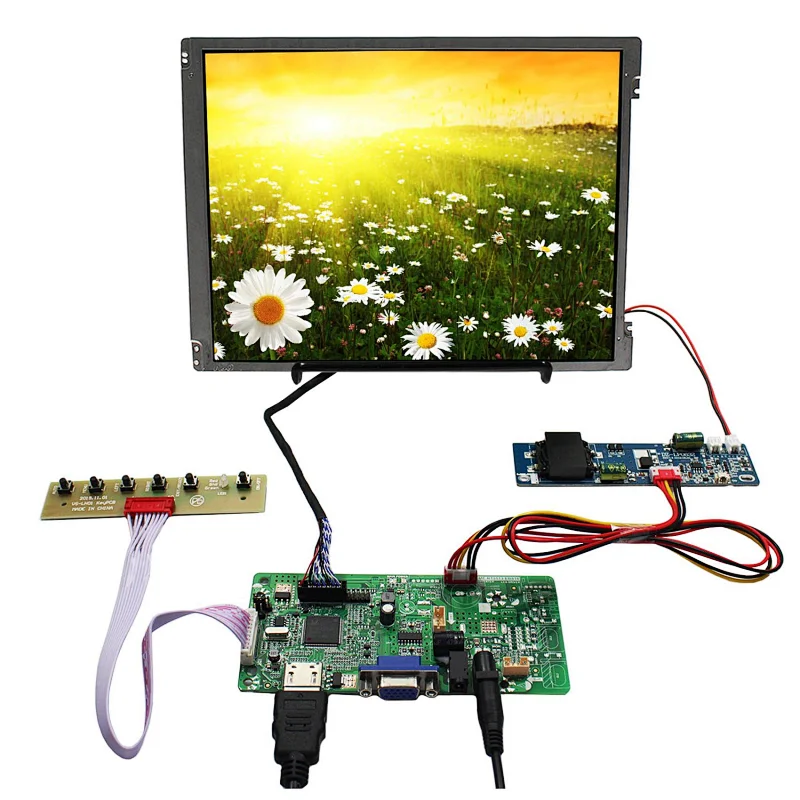

10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board
10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board
10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board
10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board
10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board
10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board
10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board
10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board
10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board
10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board
10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board

10.4inch 800X600 1000nit High Brightness TFT- LCD Screen With VGA LCD Controller Board

Model NO.
K002808 VS-TY2660HU-823+G104SN03-1000 800X600
Minimum order quantity:
1
Quantity:

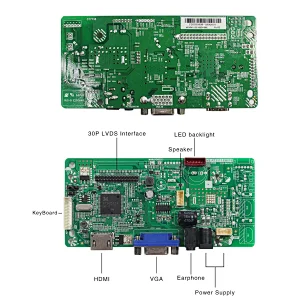

LCD Controller Board:
HD-MI VGA Audio LCD Board for 30Pin LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.2W
Voltage To LCD Panel：3.3V 5V 12V( Jumper optional)
Video Input: HD-MI VGA
VGA: Earphone Input
HD-MI: Support HD-MI 1.4
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 130mm x 61mm x 12mm

10.4" G104SN03-1000 800X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 236 ×174.3×4.9 (H×V×D)
Display Area 211.2 ×158.4 (H×V)
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

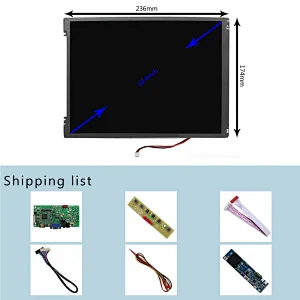

Packing list :
1× VGA LCD Controller Board RT2513-818
1×10.4inch G104SN03-1000 800X600 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
