12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board
12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board

12.1inch AA121TD02 1280x800 Outdoor Display LCD Screen With VGA LCD Controller Board

Model NO.
K002267 RT2270C-A+AA121TD02 1280X80
Minimum order quantity:
1
Quantity:

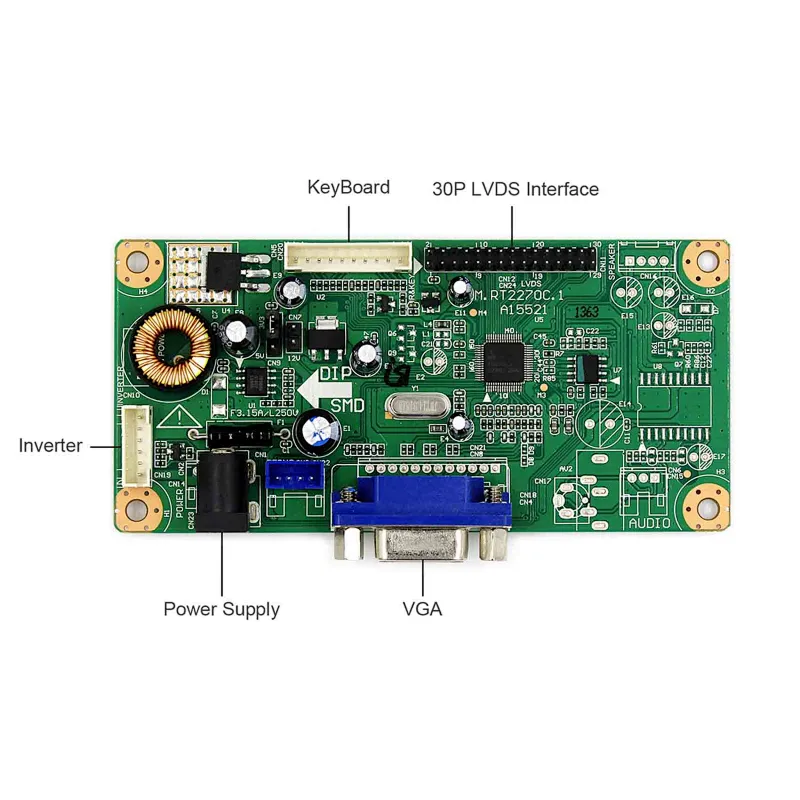

LCD Controller Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

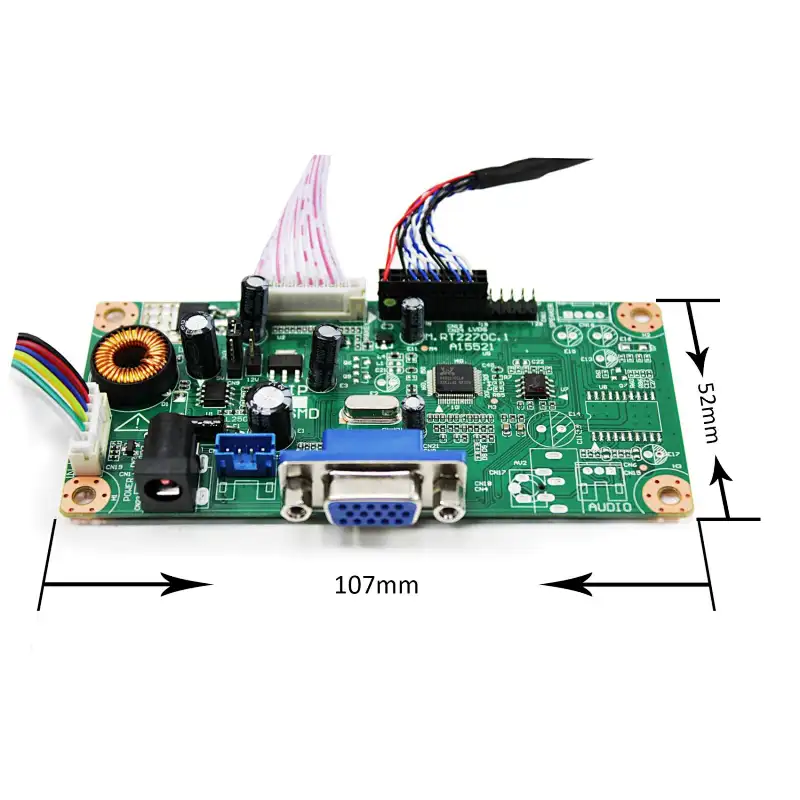

Board Size:107mm x 52mm x 18mm

12.1" AA121TD02 1280X800 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1280RGB)×800
Outline Size 283×185.1×10(H×V×D)
Display Area 216.12 ×163.2 (H×V)
Brightness 1000 cd/m²(Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 80/80/80/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

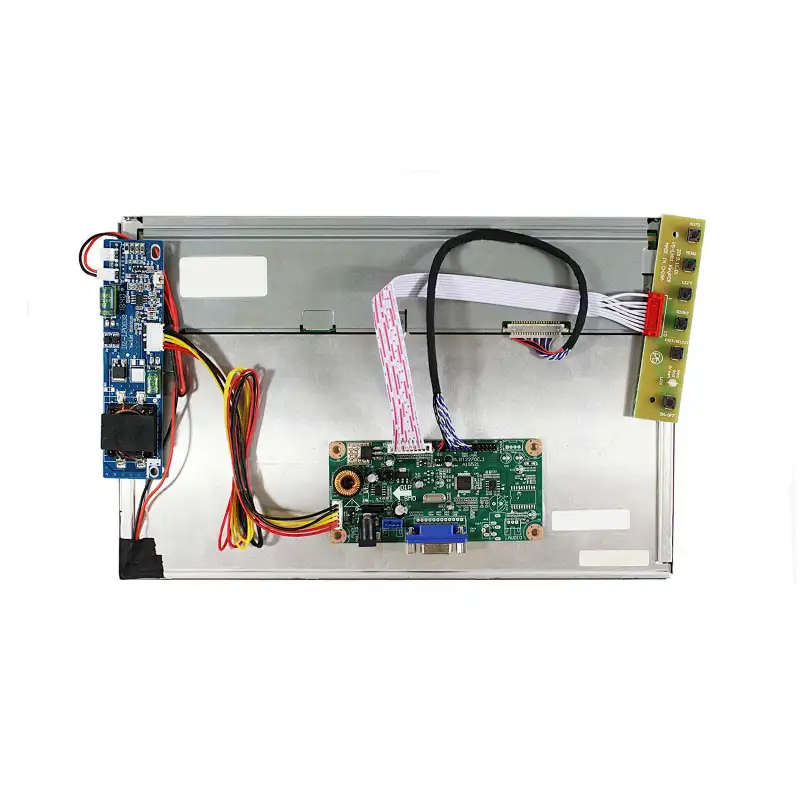

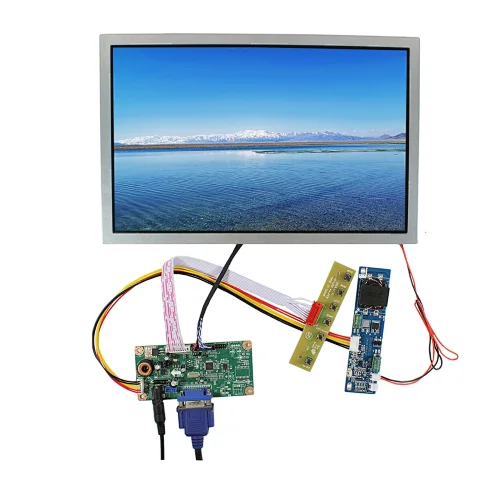

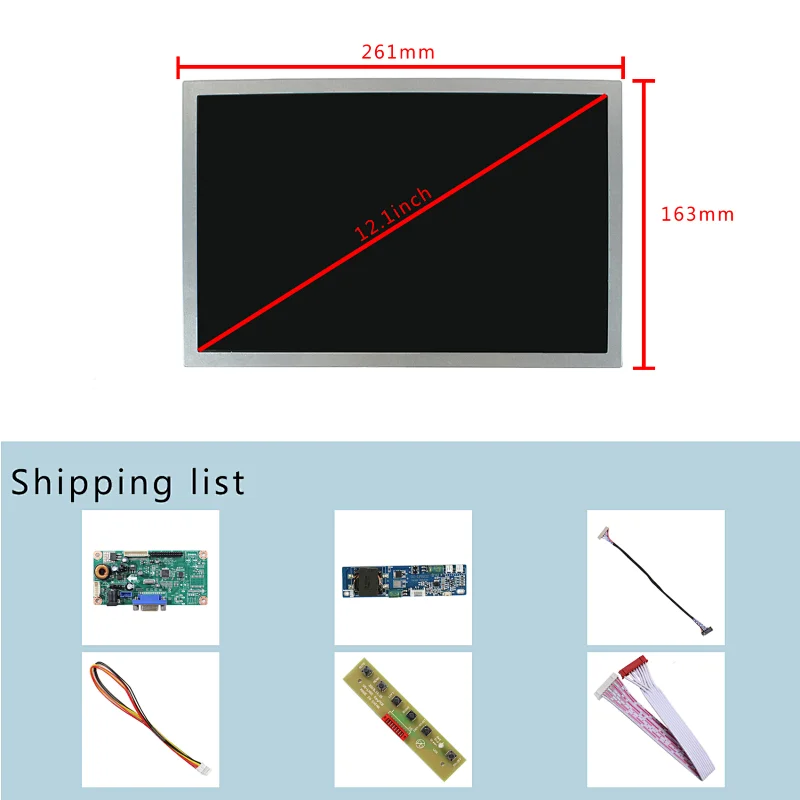

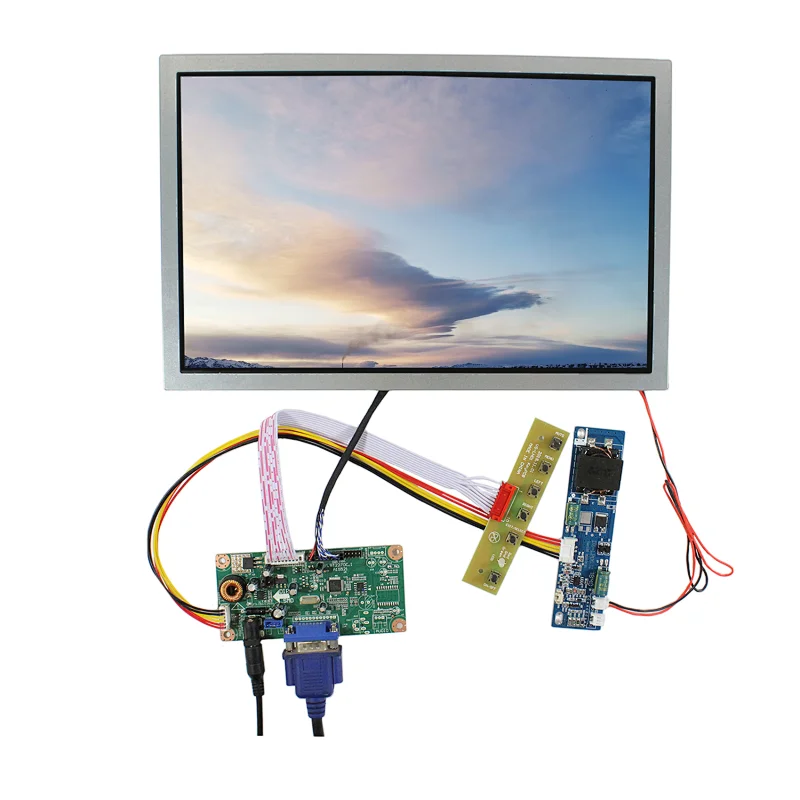

Packing list :
1× VGA LCD Controller Board RT2270C-A
1×12.1inch AA121TD02 1280x800 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
