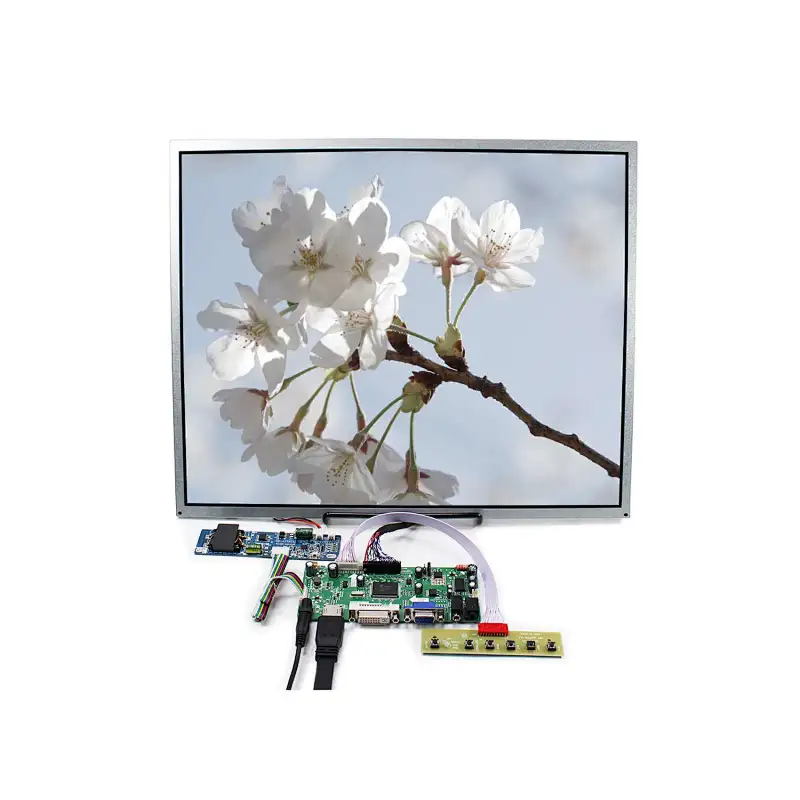

17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board
17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board

17.0inch Brightness 1000nit M170ETN01.1 1280X1024 LCD Screen with HDMI VGA DVI LCD Controller Board

Model NO.
K002680-M.NT68676+M170ETN01.1 1280X1024
Minimum order quantity:
1
Quantity:

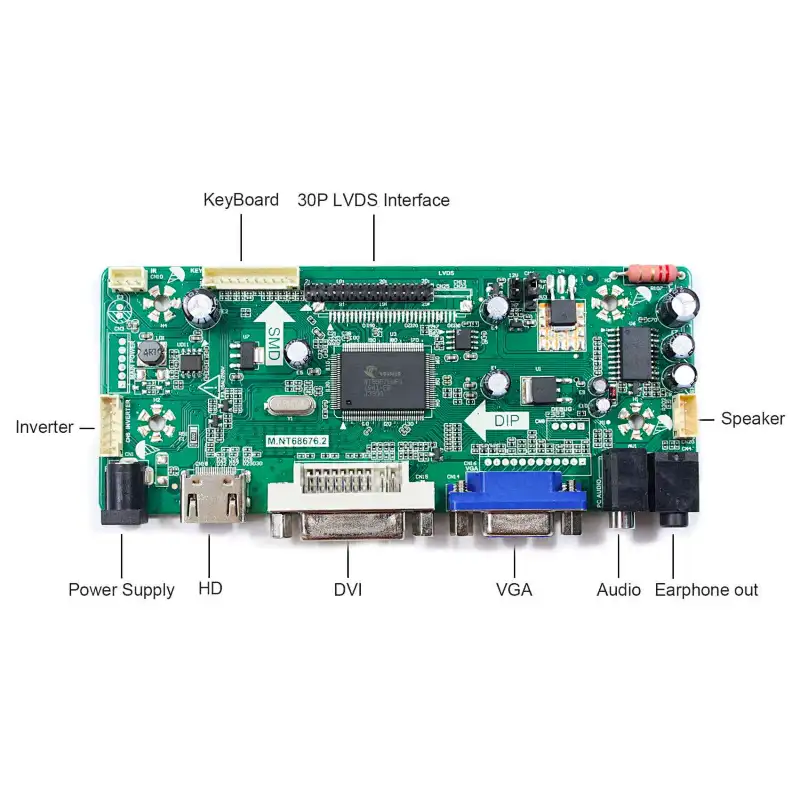

LCD Controller Board:
HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI DVI VGA
Audio Input: HD-MI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

17.0" M170ETN01.1 1280X1024 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280(RGB)×1024, SXGA, 96PPI
Outline Size 358.5(W)×296.5(H)×10.8(D) mm
Display Area 337.92(W)×270.336(H) mm
Brightness1000 cd/m²(Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

Packing list:
1× HDMI VGA DVI LCD Controller Board M.NT68676
1×17.0" M170ETN01.1 1280X1024 LCD Screen

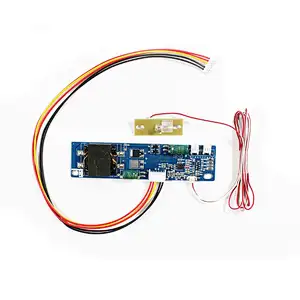

1× Inverter Board
1×Backlight Cable
1× Keyboard With Cable
