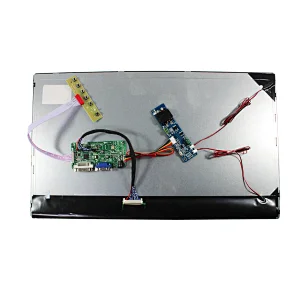

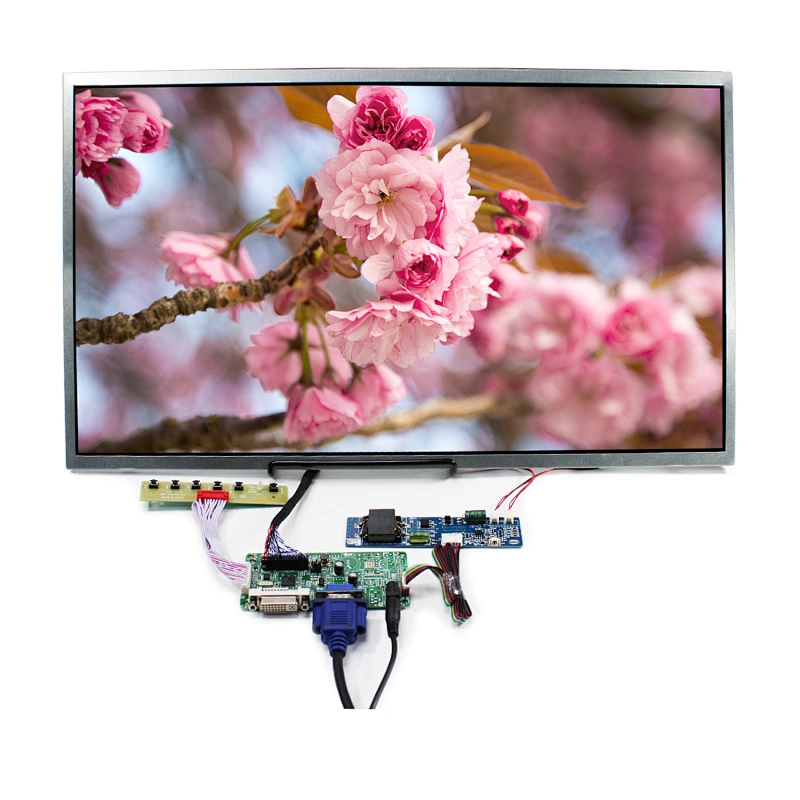

21.5" 1000nit M215HJJ-P02 1920x1080 21.5inch outdoor LCD Screen With VGA DVI LCD Controller Board

Model NO.
K002963-RT2281+M215HJJ-P02 1920x1080
Minimum order quantity:
1
Quantity:

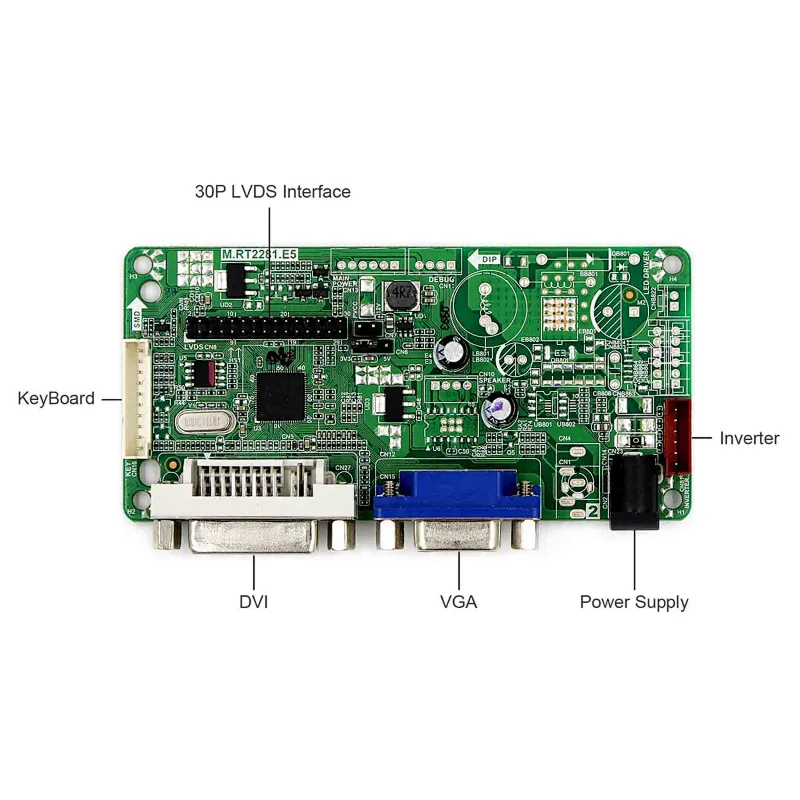

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

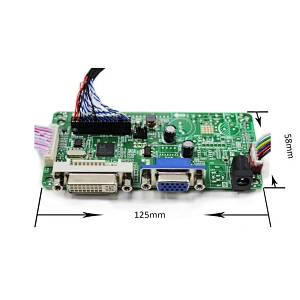

Board Size: 125mm x 58mm x 17mm

21.5"M215HJJ-P02 1920x1080 LCD Screen:
Display Mode  MVA, Normally Black, Transmissive
Resolution 1920(RGB)×1080, FHD, 102PPI
Outline Size 487.664(W)×279.286(H) ×1.29(D) mm
Display Area 476.064(W)×267.786(H) mm
Brightness 1000 cd/m²
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥20)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

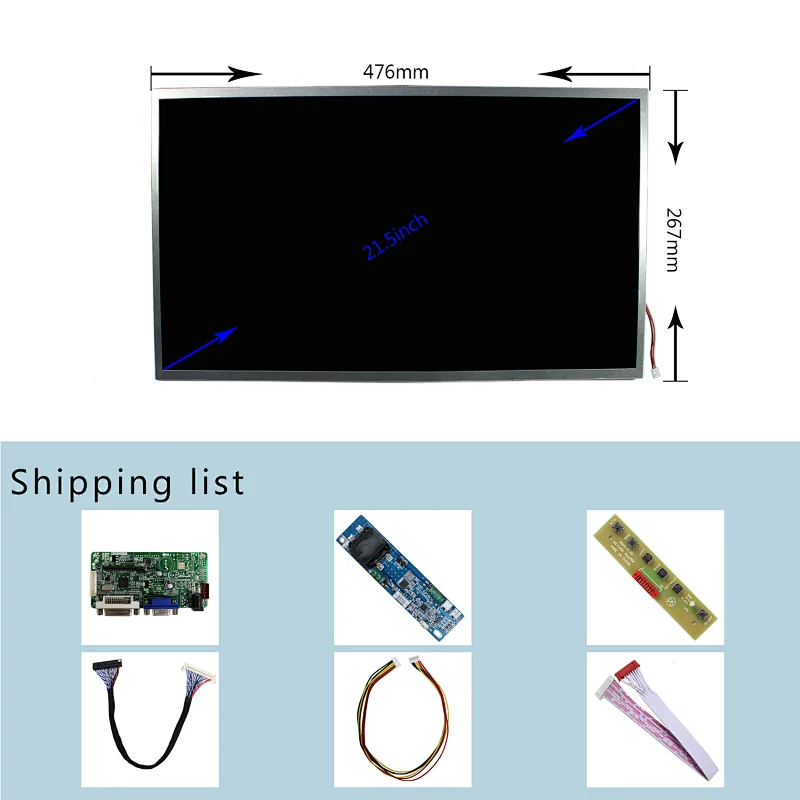

Packing list:
1× VGA+DVI LCD Controller Board RT2281
1×21.5" M215HJJ-P02 1920x1080 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
