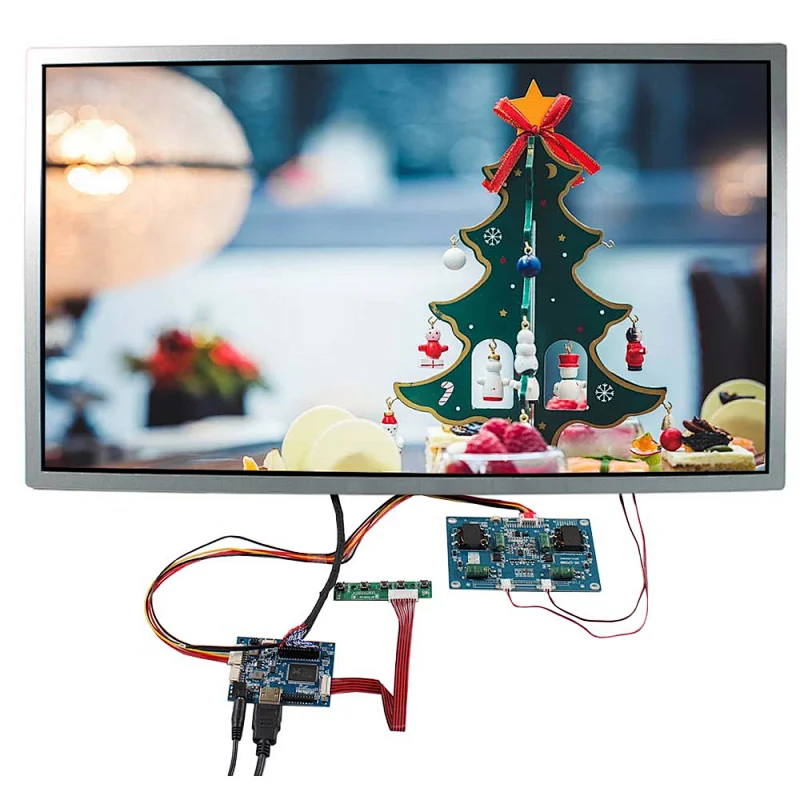

27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board
27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board

27inch 1920X1080 VS270GF 1500nit High Brightness TFT-LCD Screen With HDMI LCD Controller Board

Model NO.
K003047- VS-TY2660H-V661+27寸 VS270GF-1500 高亮1920X1080
Minimum order quantity:
1
Quantity:

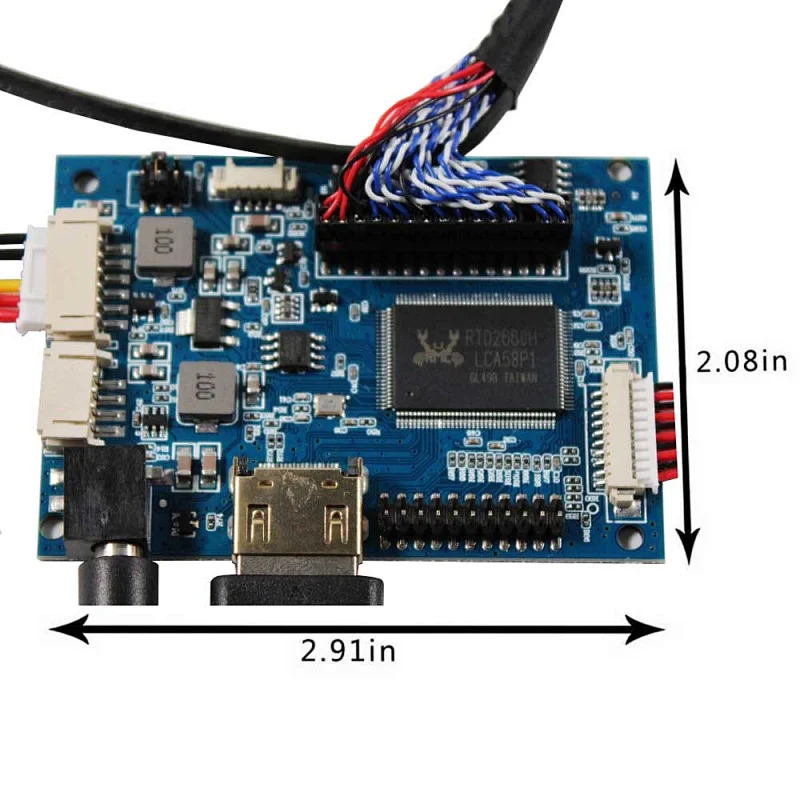

LCD Controller Board:
HDMI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
Audio Input: HDMI
Audio Output: Speaker (4Pin PH1.25 connector)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm

27" VS270GF-1500 1920X1080 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920X(RGB)×1080
Outline Size 611.5×355.8×14MM (H×V×D)
Display Area 597.888×336.312mm (H×V)
Brightness1500 cd/m² (Typ.)
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10
Signal Interface Parallel LVDS (2 ch, 8-bit) , 30 pins ,
Backlight WLED
Input Voltage 5V (Typ.)

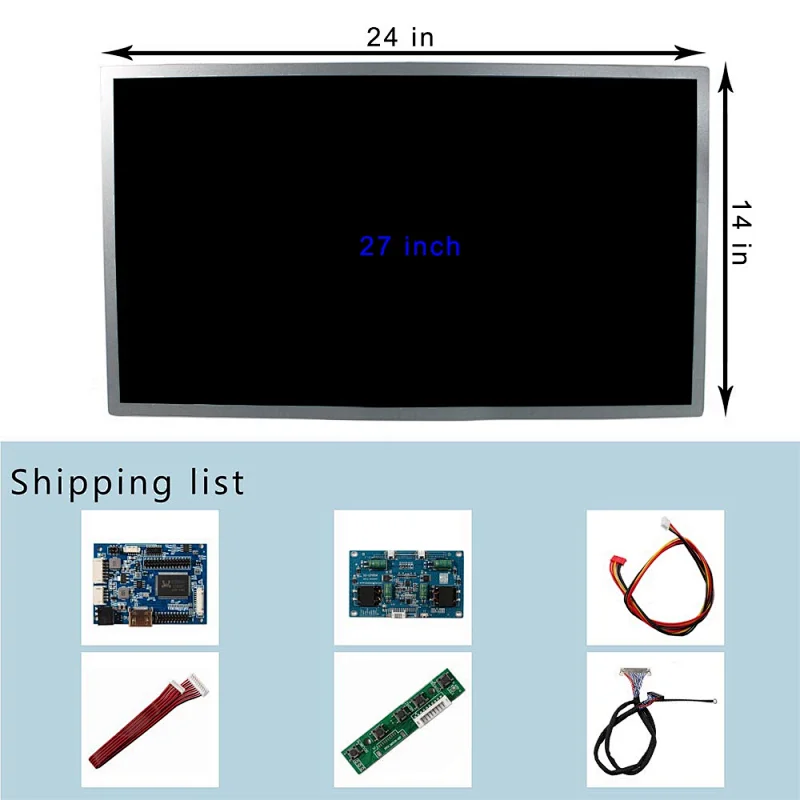

Packing list :
1× HDMI LCD Controller Board VS-TY2660H-661
1× 27inch VS270GF-1500 1920X1080 LCD Screen
1× LED Driver Board
1× LVDS Cable
1× Keyboard With Cable
