12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board
12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board
12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board
12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board
12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board
12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board
12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board
12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board
12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board
12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board
12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board

12.3 inch IPS HSD123KPW1 1920X720 Stretch Bar Screen TFT-LCD Screen With HD-MI VGA AV LCD Controller Board

Model NO.
K002822-KYV-N5 V3+HSD123KPW1-A30 1920X720
Minimum order quantity:
1
Quantity:

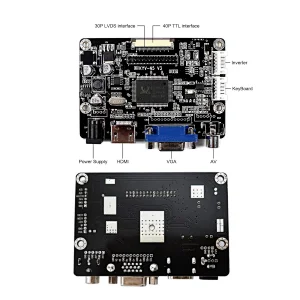

LCD Controller Board:
HD-MI VGA AV LCD Board Work for LVDS Interface LCD Screen
40Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

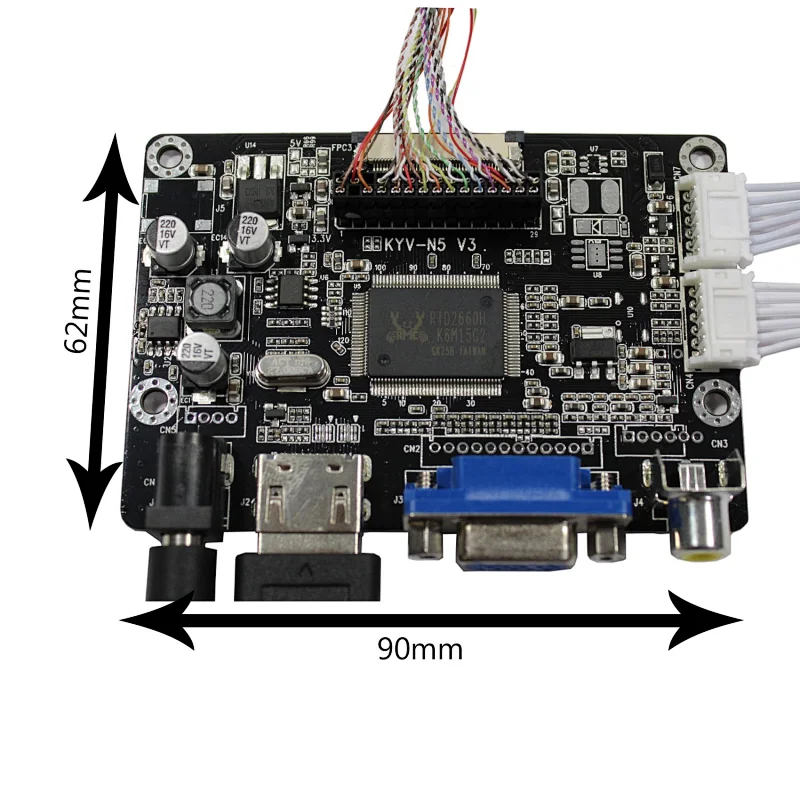

Board Size: 90mm x 62mm x 15mm

12.3"HSD123KPW1-A30 1920X720 LCD Screen:
Display Mode  IPS Pro, Normally Black, Transmissive
Resolution1920RGB)×720
Outline Size 308.1 ×130×15.6(H×V×D)
Display Area 292.032 ×109.512 (H×V)
Brightness850 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch,8-bit) , Connector , 50 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

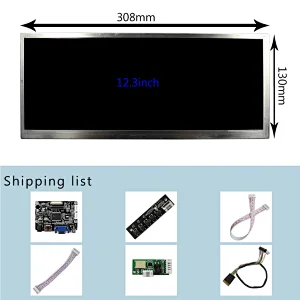

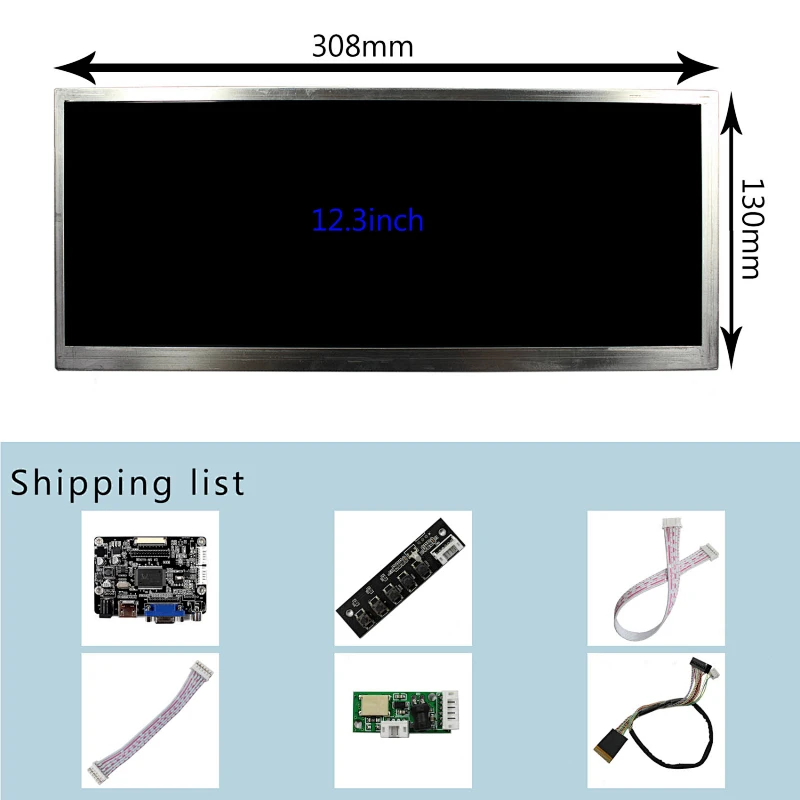

Packing list:
1× HD-MI VGA AV LCD Controller Board KYV-N5 V3
1×12.3inchHSD123KPW1 1920X720 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
