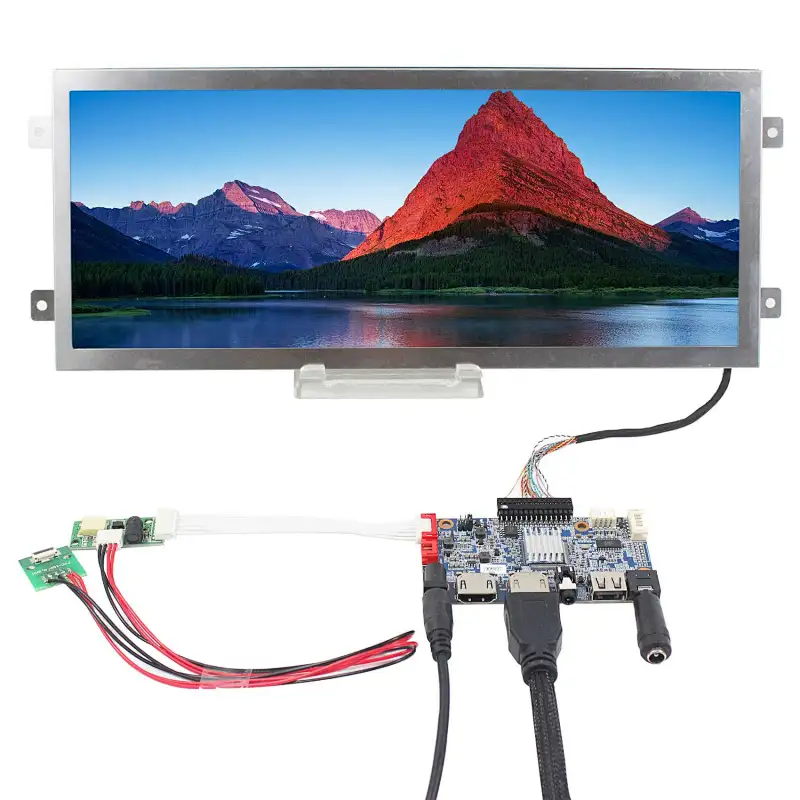

12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board
12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board
12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board
12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board
12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board
12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board
12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board
12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board
12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board
12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board
12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board

12.3inch 850nit HSD123IPW1-A00 1290X720 TFT-LCD Screen with HDMI USB LCD Controller Board

Model NO.
K002359 VS-56S1+12.3inch HSD123IPW1-A00 1920X720
Minimum order quantity:
1
Quantity:

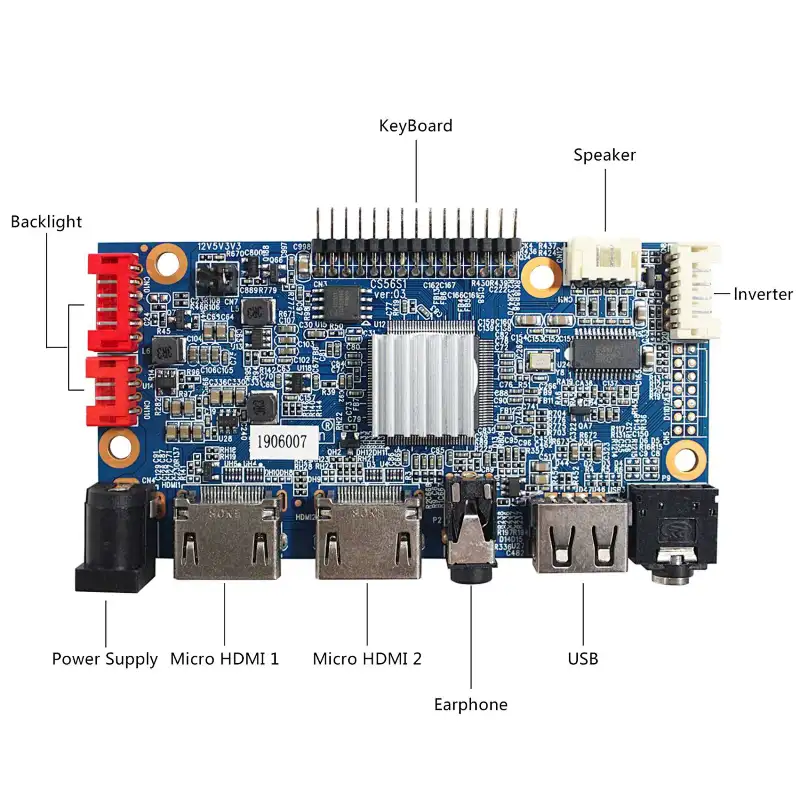

LCD Controller Board:
HDMI USB LCD Controller Board Work for 12.3 in LVDS LCD Screen
Input Power Adapter: 12Vdc more than 2A
Come In Standby Model When Not Input Signal
Standby Model <0.3W
OSD: Support Menu Contrast Brightness
Audio Input: HDMI USB
AudioOutput:Speaker Earphone
Key Board: Power Menu Up Down Exit
Language: English
Board Size: 90mm x 40mm x 15mm

12.3"HSD123IPW1-A00 1920X720 LCD Screen:
Display Mode  IPS Pro, Normally Black, Transmissive
Resolution1920RGB)×720
Outline Size 335.8 ×132.2×13.3(H×V×D)
Display Area 292.032 ×109.512 (H×V)
Brightness850 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

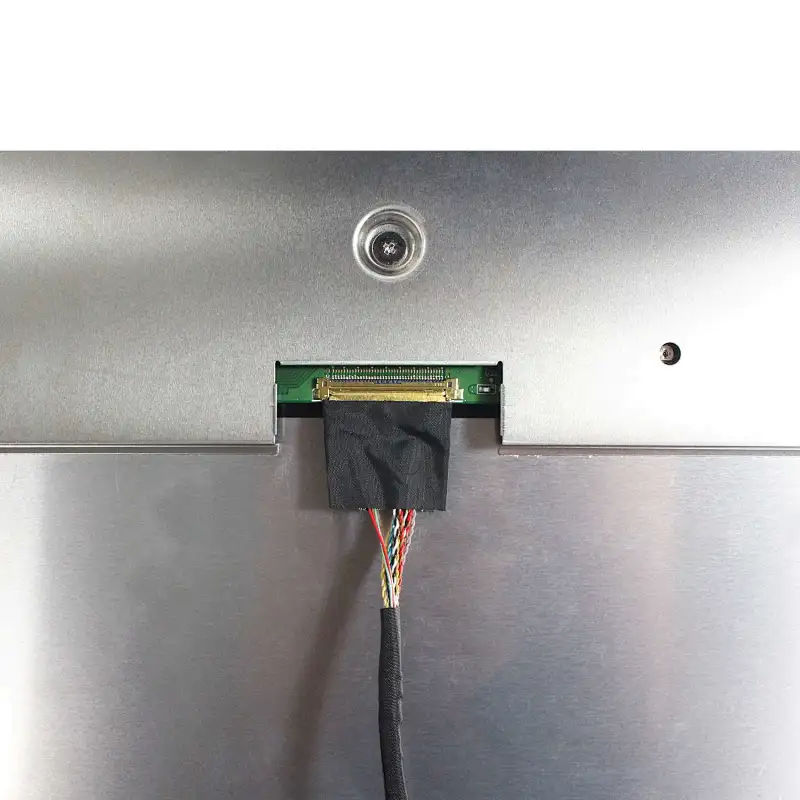

Signal Interface LVDS (2 ch,8-bit) , Connector ,40 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

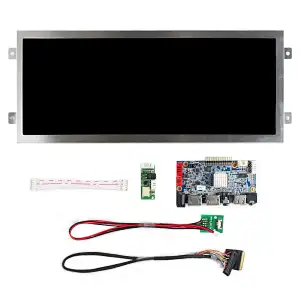

Packing list :
1×HDMI USB LCD Controller Board VS56S1
1×12.3inchHSD123IPW1-A00 1290X720 LCD Screen
1× Converter Board
1× Signal Cable
1× Keyboard With Cable
