12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen With VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen With VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen With VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen With VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen With VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen With VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen With VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen With VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen With VGA DVI LCD Controller Board

12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen With VGA DVI LCD Controller Board

Model NO.
K000847-RT2281+LQ123K1LG03
Minimum order quantity:
1
Quantity:

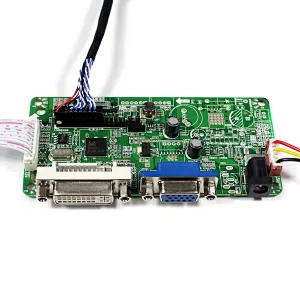

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:125mm x 58mm x 17mm
12.3"LQ123K1LG03 1280X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280RGB)×480
Outline Size 312.4 ×130.4×8 (H×V×D)
Display Area 291.84 × 109.44 (H×V)
Brightness 330 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 65/65/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  20 pins LVDS (1 ch, 8-bit) , Connector
Backlight  CCFL
Input Voltage  3.3V (Typ.)

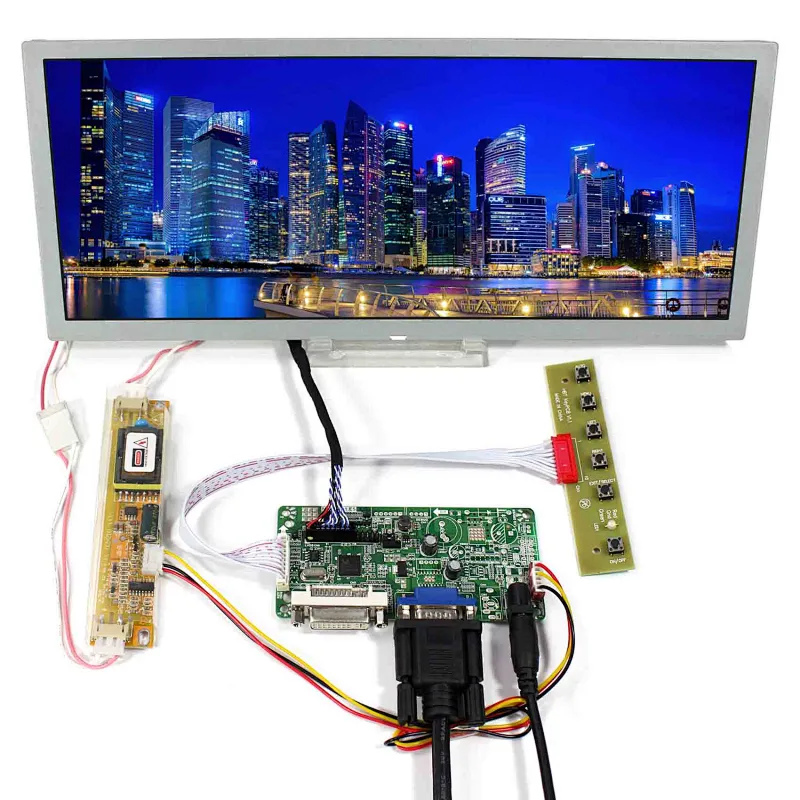

Packing list :
1× VGA+DVI LCD Controller Board RT2281
1× 12.3inchLQ123K1LG03 1280X480 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
