14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen
14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen

14.9inch LTA149B780F 1280X390 TFT-LCD Screen With VGA LCD Controller Board 14.9inch lta149b780f 14.9inch 1280x390 lcd lcd with vga comtroller board 14.9inch screen

Model NO.
K000993-RT2270+LTA149B780F
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
LCD Controller Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:107mm x 52mm x 18mm

14.9"LTA149B780F 1280X390 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280RGB)×390
Outline Size 470.5 × 136×20.5(H×V×D)
Display Area 360.94 × 109.98 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/45/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

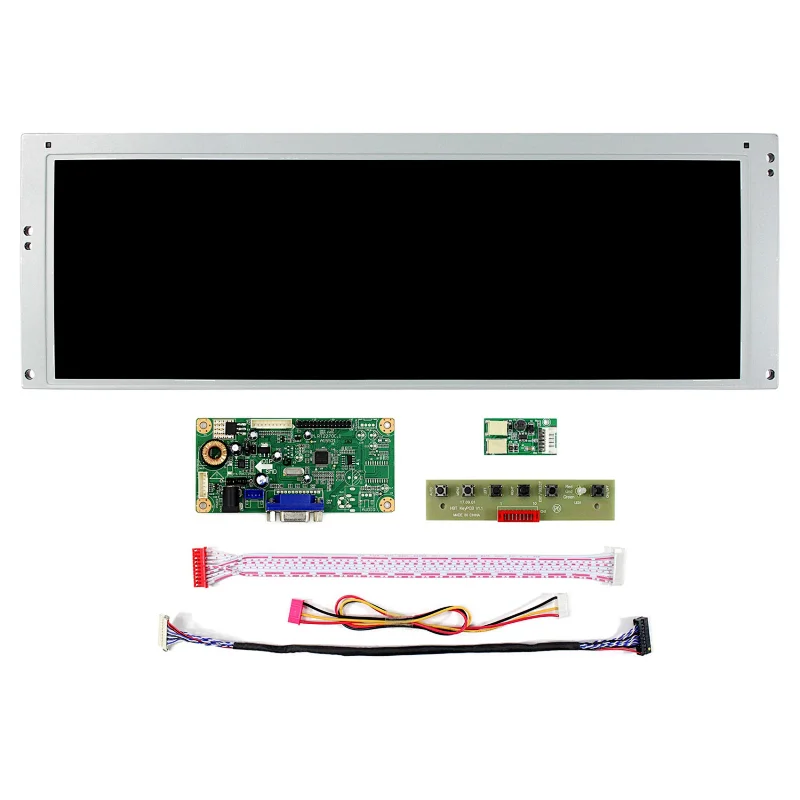

Packing list :
1× VGA LCD Controller Board RTMC1B-A
1× 14.9inchLTA149B780F 1280X390 LCD Screen
1×LVDSCable
1× Converter Board
1× Keyboard With Cable
