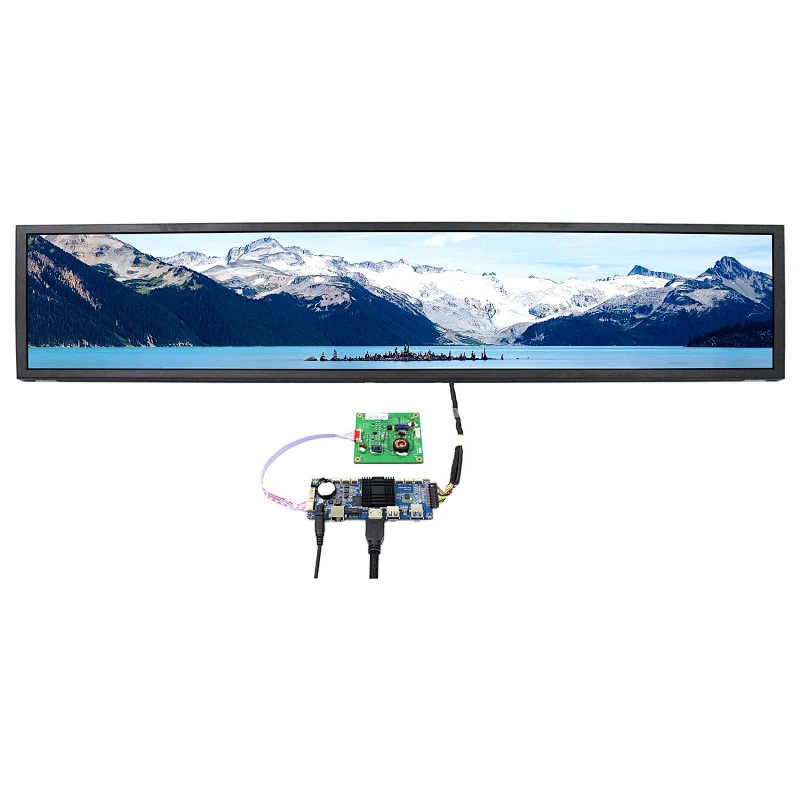

43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board
43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board

43inch Stretched Bar Display VSFHD43IIE01 1920X355 IPS LCD Screen With Android 4.4 LCD Controller Board

Model NO.
K002208-VS-HSV320A2-V10+VSFHD43IIE01 1920x355
Minimum order quantity:
1
Quantity:

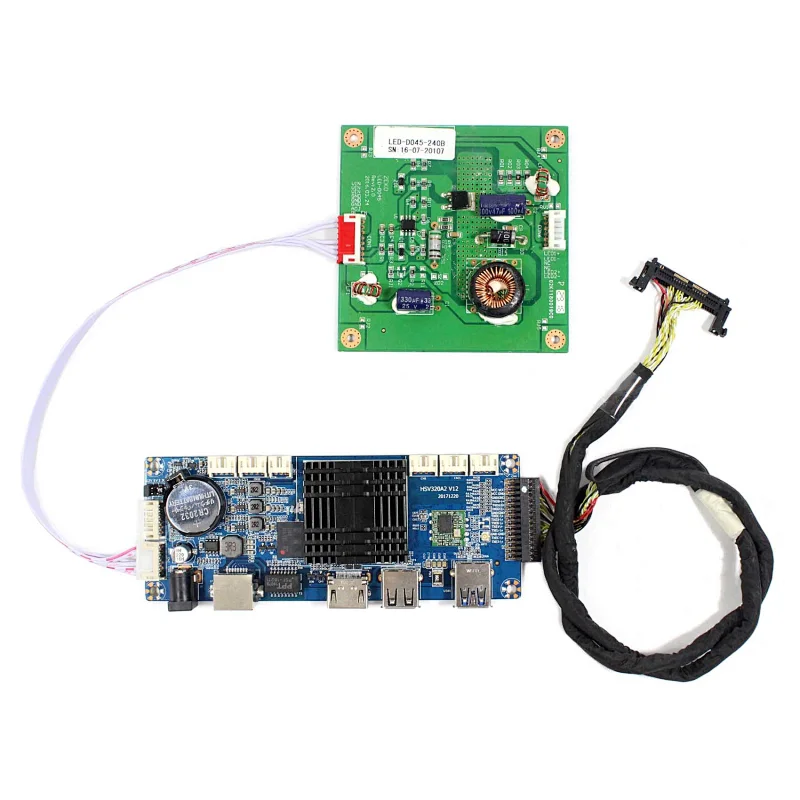

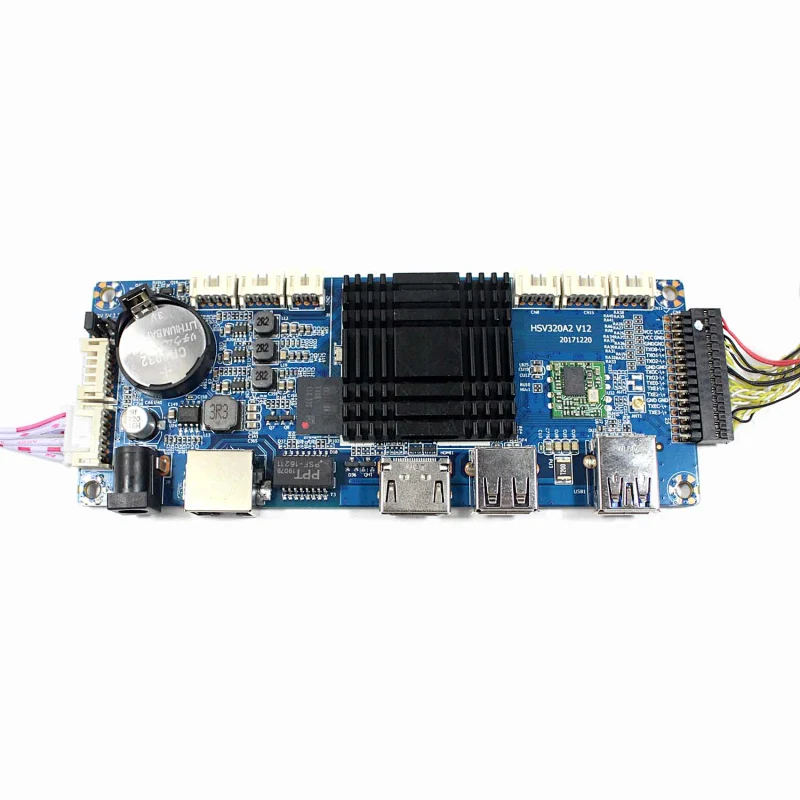

LCD Controller Board:
Android 4.4 LCD Controller Board For LCD Screen
Input Power Adapter: 12Vdc
Support 4K2K@30fps 1080P@60fps
USB 3G/4G InternetModule RJ45 WIFI Module
Come In Standby Model When Not Input Signal Bit
CPU HI3751V320 ARM Dual-Core Cortex-A53 64-bit 4 Mali450 GPU
RAM DDR3：512MB
Flash Memory 8GB
OS: Android 4.4
Board Size: 138mm x 53mm x 10mm

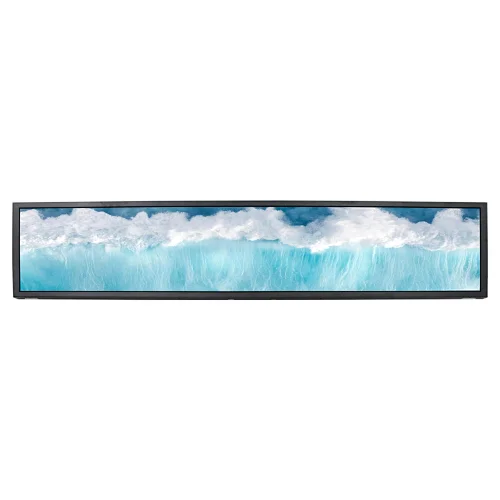

43" VSFHD43IIE01 1920X355 LCD Screen:
Display Mode  ADS, Normally Black, Transmissive
Resolution1920RGB)×355
Outline Size 1112.3 ×228.5×19.3 (H×V×D)
Display Area 1073.78×199(H×V)
Brightness750 cd/m² (Typ.)
Contrast Ratio 5000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

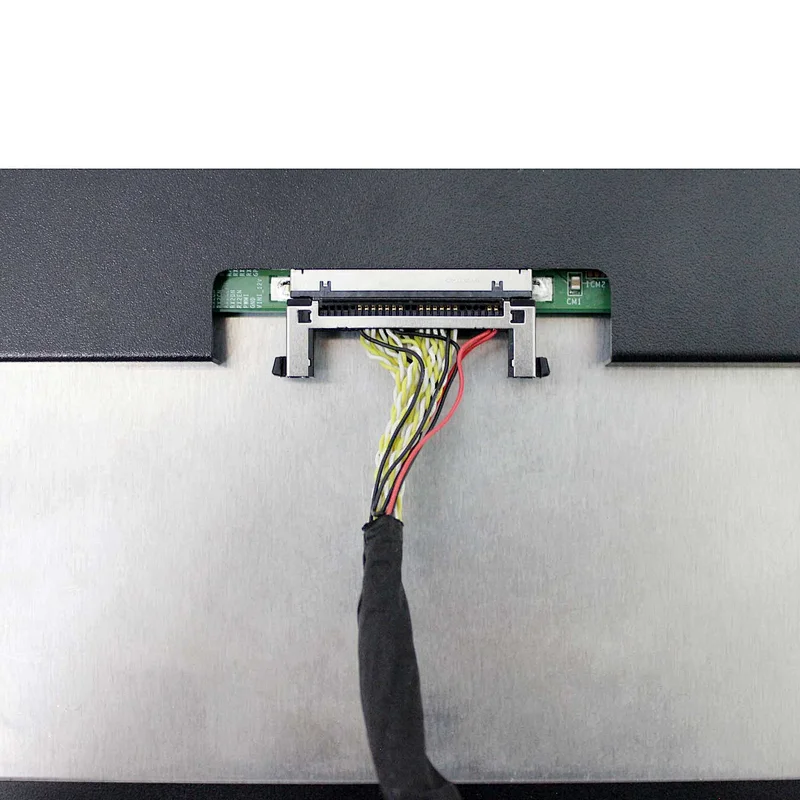

Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)
Weight 4.9kg

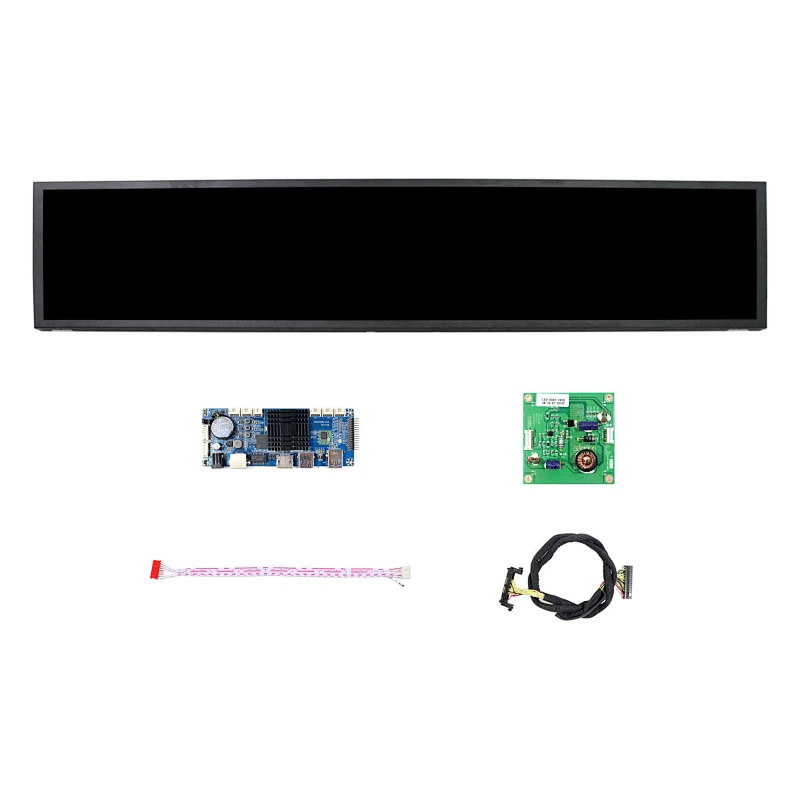

Packing list :
1×Android 4.4 LCD Controller Board HSV320A2 V10
PS: The Battery on Board not Included.Connector Mouse and keyboard Controller The Board.
1× 43inchVSFHD43IIE01 1920X355 IPSLCD Screen
1× Signal Cable
1×Backlight Board
