5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board
5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board
5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board
5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board
5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board
5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board
5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board
5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board
5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board
5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board
5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board

5.6inch AT056TN52 640X480 4:3 TFT-LCD Screen With VGA LCD Controller Board

Model NO.
5.6inch AT056TN52 640X480 LCD Screen VGA LCD Controller Board
Minimum order quantity:
1
Quantity:

LCD Controller Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 107mm x 52mm x 18mm

5.6"AT056TN52 V3 640X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 640RGB)×480
Outline Size 126.5 ×100×6 (H×V×D)
Display Area 112.9 × 84.7 (H×V)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)

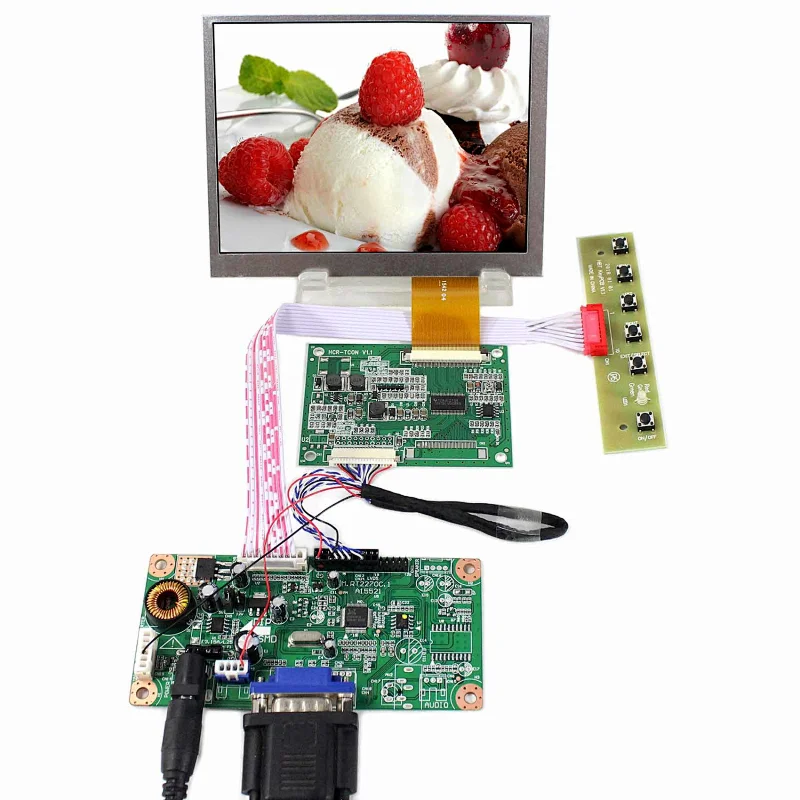

Packing list :

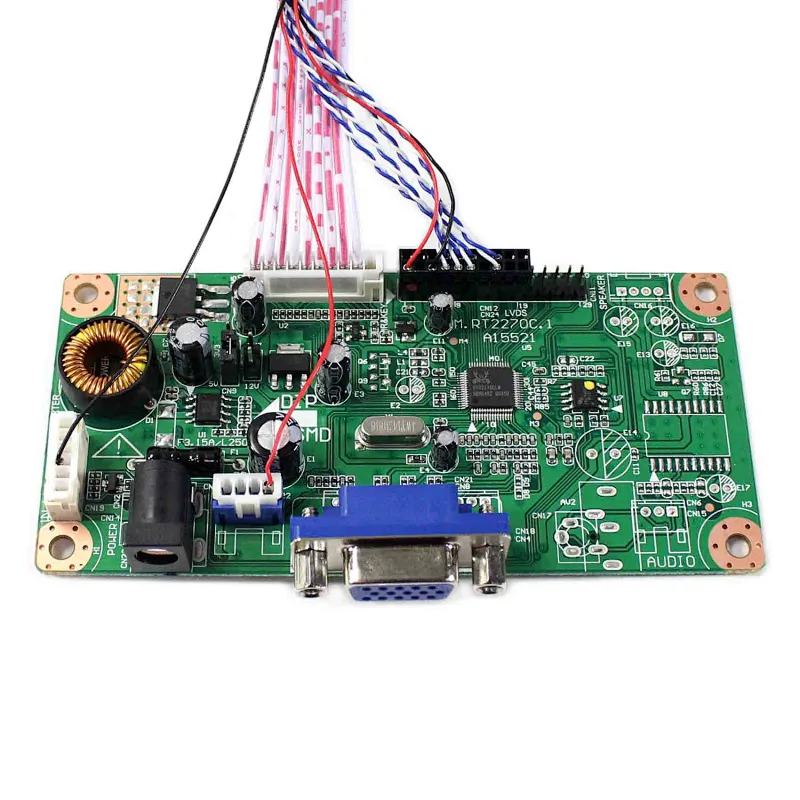

1× VGA LCD Controller Board RT2270C-A
1× 5.6inch AT056TN52 640X480 LCD Screen

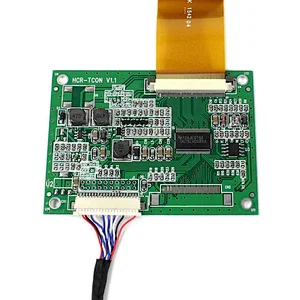

1×T-CON Board HCR-TCON V1.1
1×LVDS Cable
1× Keyboard With Cable
