5.6inch LTD056ET3A 1024X600 16:9 TFT-LCD Screen With VGA+DVI LCD Controller Board
5.6inch LTD056ET3A 1024X600 16:9 TFT-LCD Screen With VGA+DVI LCD Controller Board
5.6inch LTD056ET3A 1024X600 16:9 TFT-LCD Screen With VGA+DVI LCD Controller Board
5.6inch LTD056ET3A 1024X600 16:9 TFT-LCD Screen With VGA+DVI LCD Controller Board
5.6inch LTD056ET3A 1024X600 16:9 TFT-LCD Screen With VGA+DVI LCD Controller Board
5.6inch LTD056ET3A 1024X600 16:9 TFT-LCD Screen With VGA+DVI LCD Controller Board
5.6inch LTD056ET3A 1024X600 16:9 TFT-LCD Screen With VGA+DVI LCD Controller Board
5.6inch LTD056ET3A 1024X600 16:9 TFT-LCD Screen With VGA+DVI LCD Controller Board
5.6inch LTD056ET3A 1024X600 16:9 TFT-LCD Screen With VGA+DVI LCD Controller Board

5.6inch LTD056ET3A 1024X600 16:9 TFT-LCD Screen With VGA+DVI LCD Controller Board

Model NO.
K001546- RT2281+LTD056ET3A
Minimum order quantity:
1
Quantity:

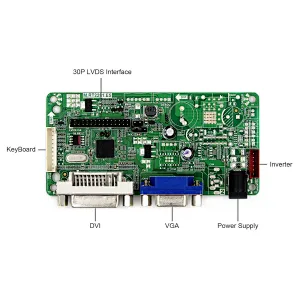

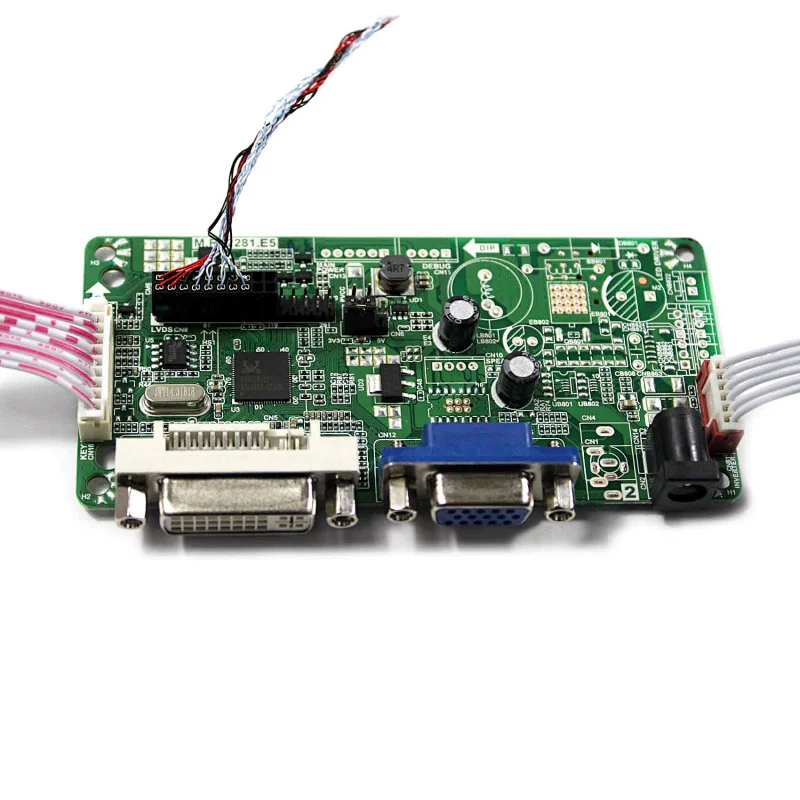

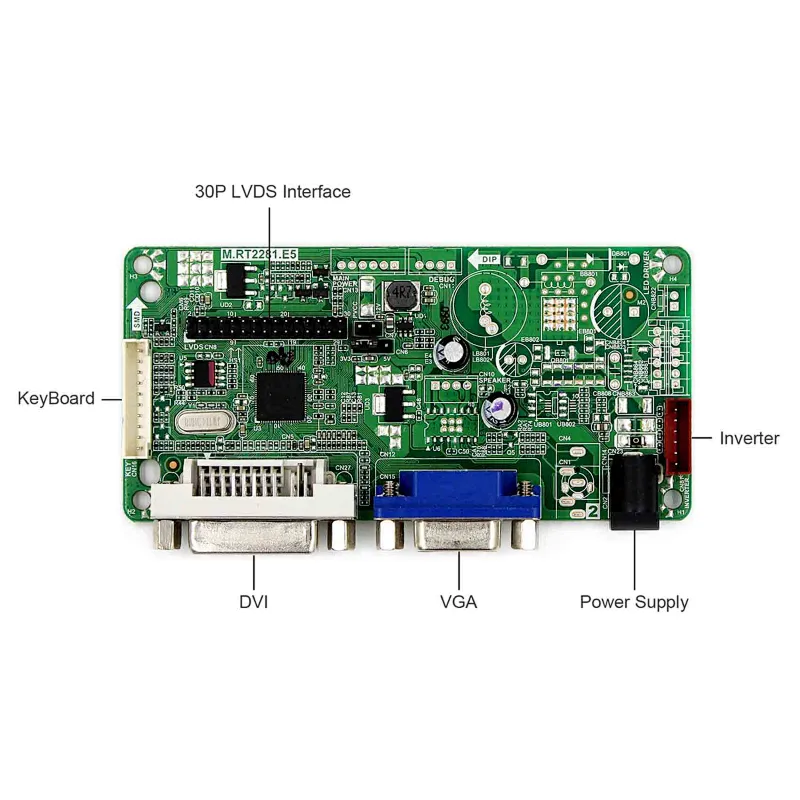

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:125mm x 58mm x 17mm

5.6"LTD056ET3A 1024X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 136.8 × 85.9×4.9 (H×V×D)
Display Area 122.88 × 72 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 25 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

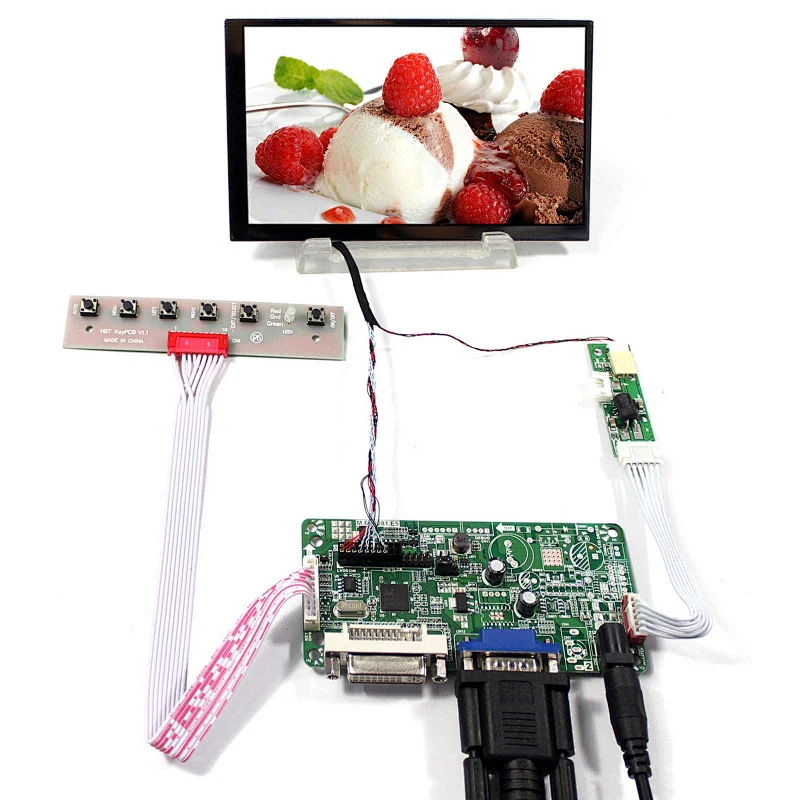

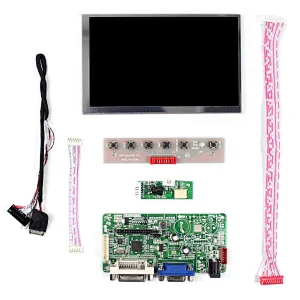

Packing list :
1× VGA+DVI LCD Controller Board RT2281
1× 5.6inch LTD056ET3A 1024X600 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
