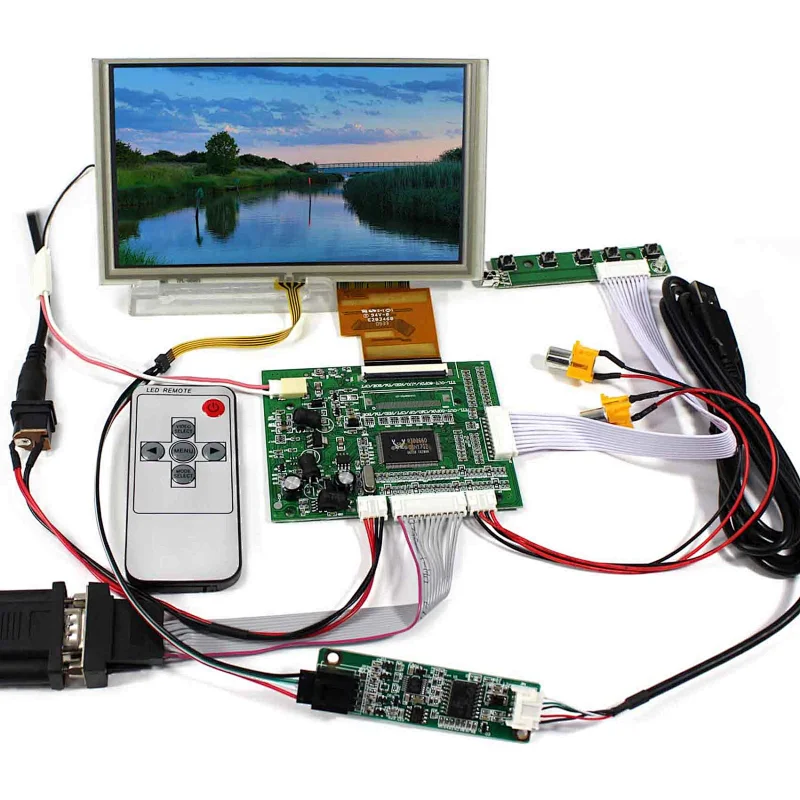

6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board
6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board
6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board
6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board
6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board
6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board
6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board
6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board
6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board
6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board
6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board

6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel + VGA+AV LCD Controller Board

Model NO.
K000120-Y-K000120 VS-TY5060-V1+HSD062IDW1+VS062TP-A1
Minimum order quantity:
1
Quantity:

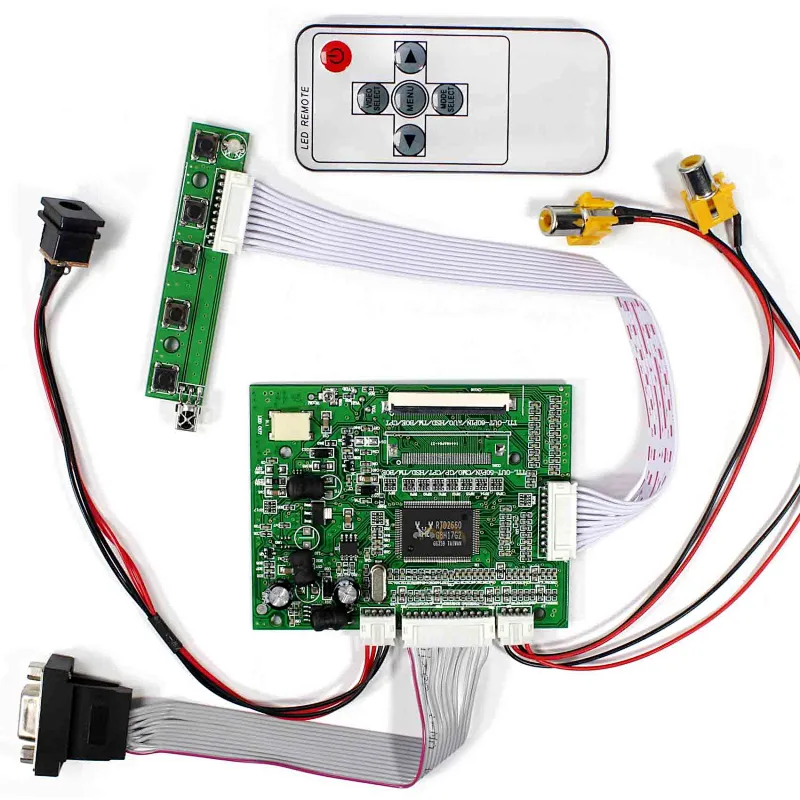

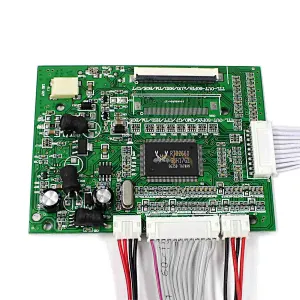

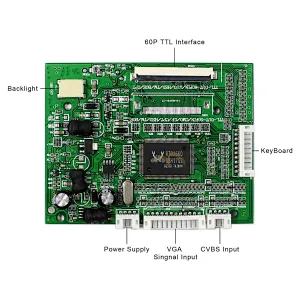

LCD Controller Board:
VGA 2AV LCD Board Work for 50Pin and 60Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:90mm x 70mm x 12mm

6.2"HSD062IDW1 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800（RGB)×480
Outline Size 155.2 ×80.4×6.5 (H×V×D)
Display Area 137.5 ×77.2 (H×V)
Brightness400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 75/75/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6/8-bit) + SPI , FPC , 60 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

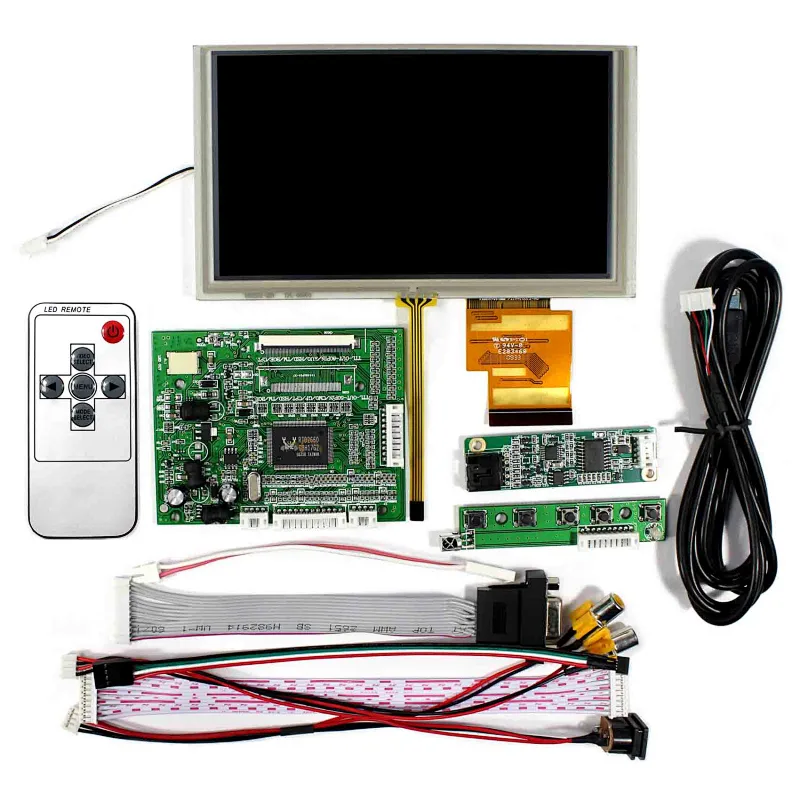

Packing list :
1× VGA+AVLCD Controller Board VS-TY5060-V1
1×6.2inch HSD062IDW1 800X480 LCD With 4-wire Touch Panel
1× Power Supply Cable
1× VGA Cable
1× AV Cable
1× USB Controller Card
1× USB Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)


Send Message

* clear input
*

Related Products

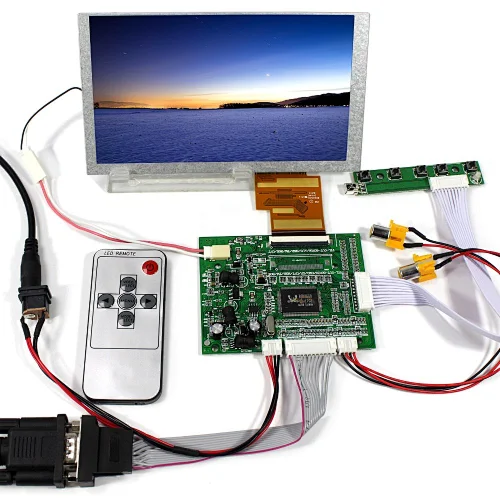

VGA AV lcd controller board with remote,6.2inch 800x480 resolution lcd display
VGA AV lcd controller board with remote,6.2inch 800x480 resolution lcd display
Model NO. K000119 VS-TY5060-V1+HSD062IDW1

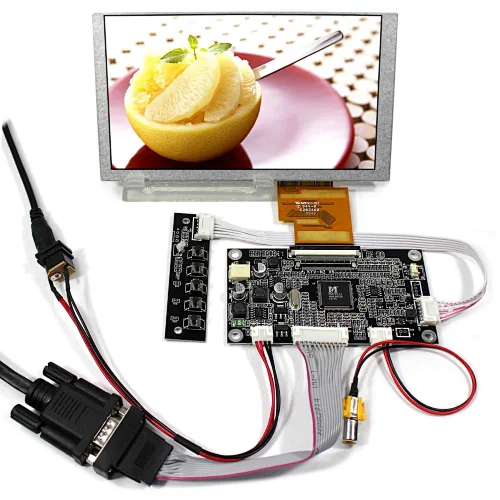

VGA+AV LCD Controller Board 6.2inch 800x480 HSD062IDW1 LCD With Touch screen controller board
