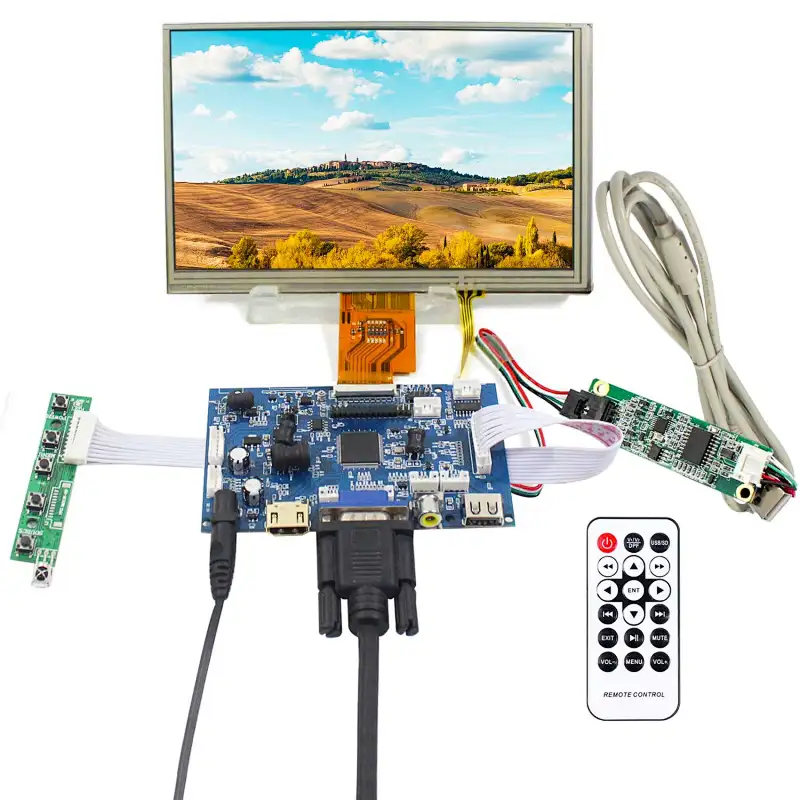

7inch AT070TNA2 1024X600 LCD With Touch Panel Screen HDMI VGA+2AV LCD Controller Board 7inch AT070TNA2 1024X600 hdmi lcd controller board 7inch 1024x600 lcd screen 7inch touch screen

7inch AT070TNA2 1024X600 LCD With Touch Panel Screen HDMI VGA+2AV LCD Controller Board 7inch AT070TNA2 1024X600 hdmi lcd controller board 7inch 1024x600 lcd screen 7inch touch screen

Model NO.: K002487-VS-TY2660-899+AT070TNA2+VS070TP-A7
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

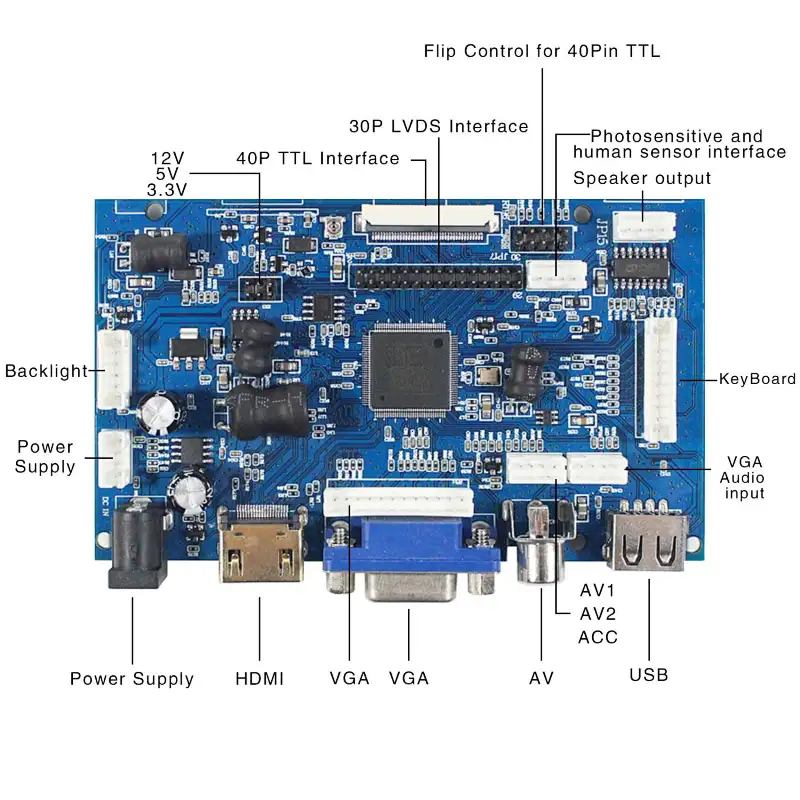

LCD Controller Board:
HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel：3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HDMI VGA AV1 AV2 USB
HDMI: Support HDMI 1.4
VGA: Support Audio Input
CVBS：2 Channel AV-CVBS
ReversingFunction: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
USB: Support VideoPlayback,PicturePlayback,TextPlayback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of thedriver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 110mm x 66mm x 12mm

7"AT070TNA2 1024X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 165.75 × 105.39×3.7 (H×V×D)
Display Area 153.6 × 90(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

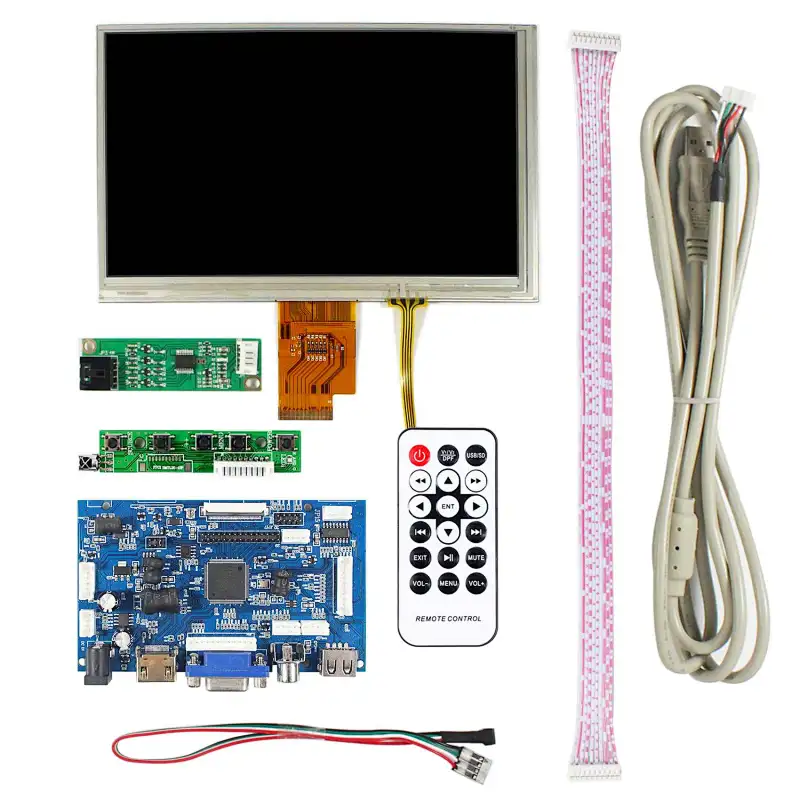

Packing list :
1× HDMI VGA+2AV LCD Controller Board VS-TY2660H-V899
1×7inch AT070TNA2 1024X600 LCD With Touch Panel VS070TP-A7
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
