Model NO.: K002466- VS-TY2660-899+HV080IA-01E 1024X768 IPS
Delivery:: EXW or FON ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

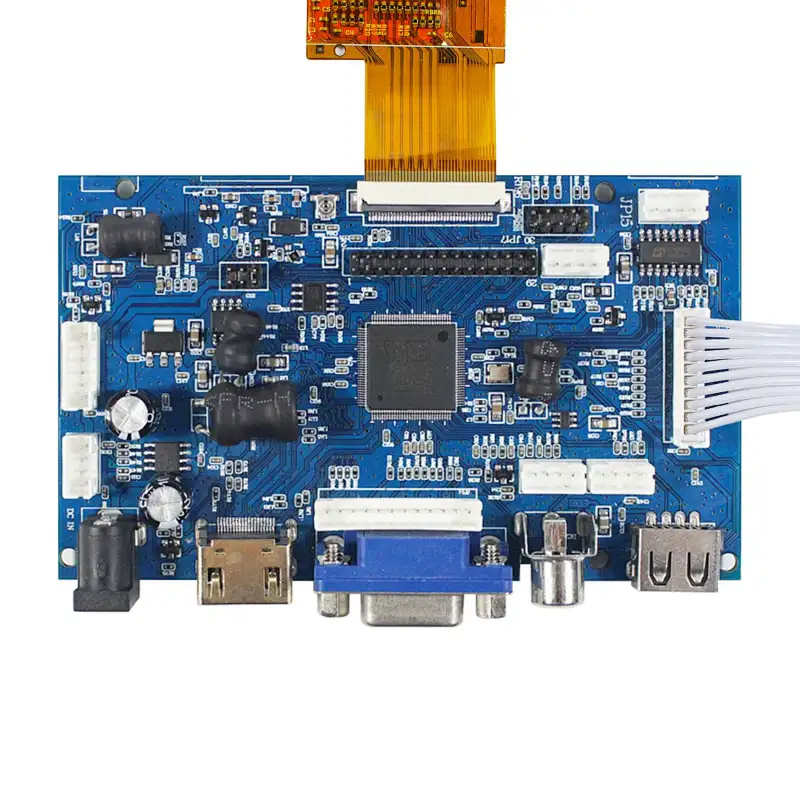

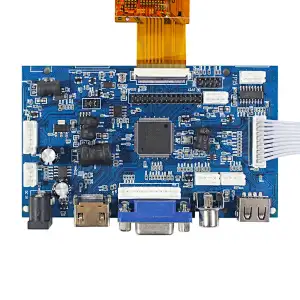

LCD Controller Board:

HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel：3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HDMI VGA AV1 AV2 USB
HDMI: Support HDMI 1.4
VGA: Support Audio Input
CVBS：2 Channel AV-CVBS
ReversingFunction: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
USB: Support VideoPlayback,PicturePlayback,TextPlayback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of thedriver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 110mm x 66mm x 12mm

8"HJ080IA-01E 1024X768 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024RGB)×768
Outline Size 174 × 136×2.75 (H×V×D)
Display Area 162.08 × 121.54(H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

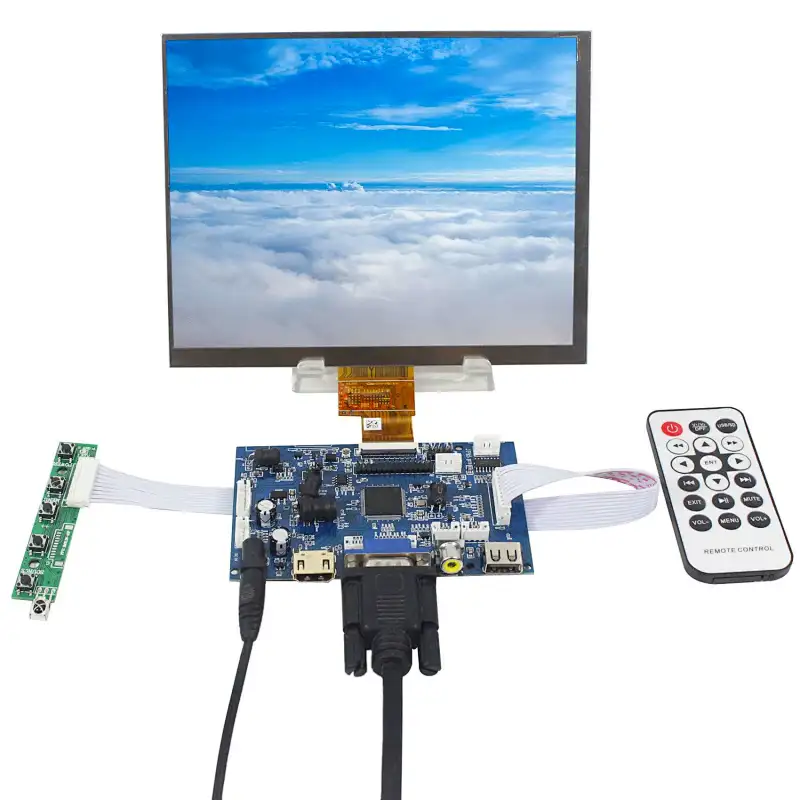

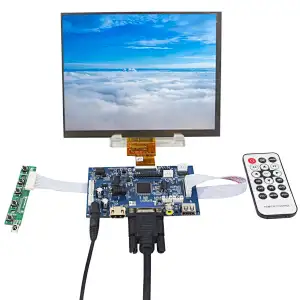

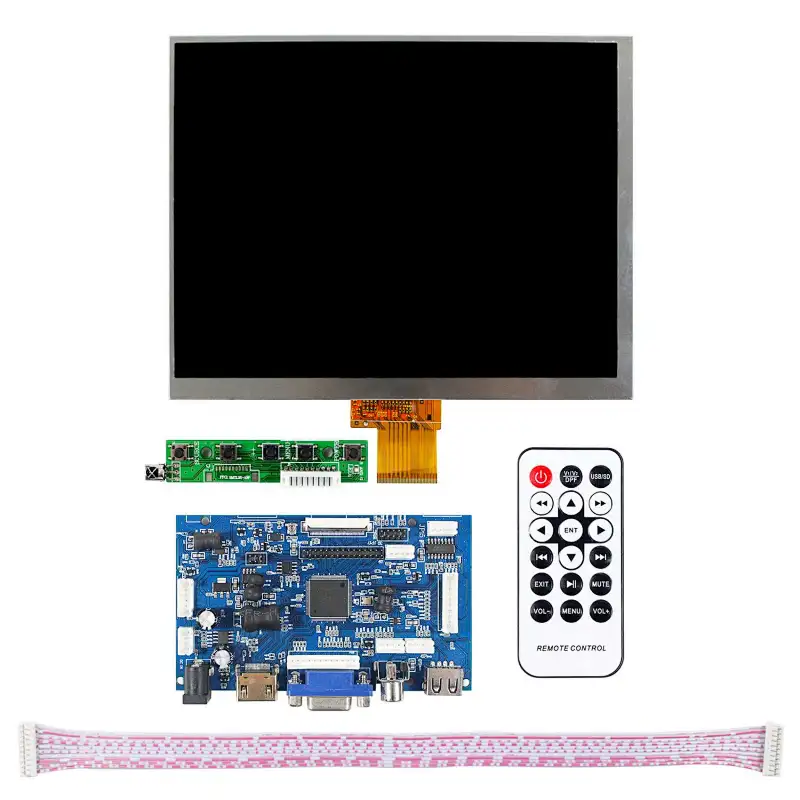

Packing list :
1× HDMIVGA+2AV LCD Controller Board VS-TY2660H-V899
1× 8inch HJ080IA-01E 1024X768 IPS LCD Screen
1× 1 CCFL Inverter Board
1× 30Pin Signal Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
