  5. ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
Print This Page

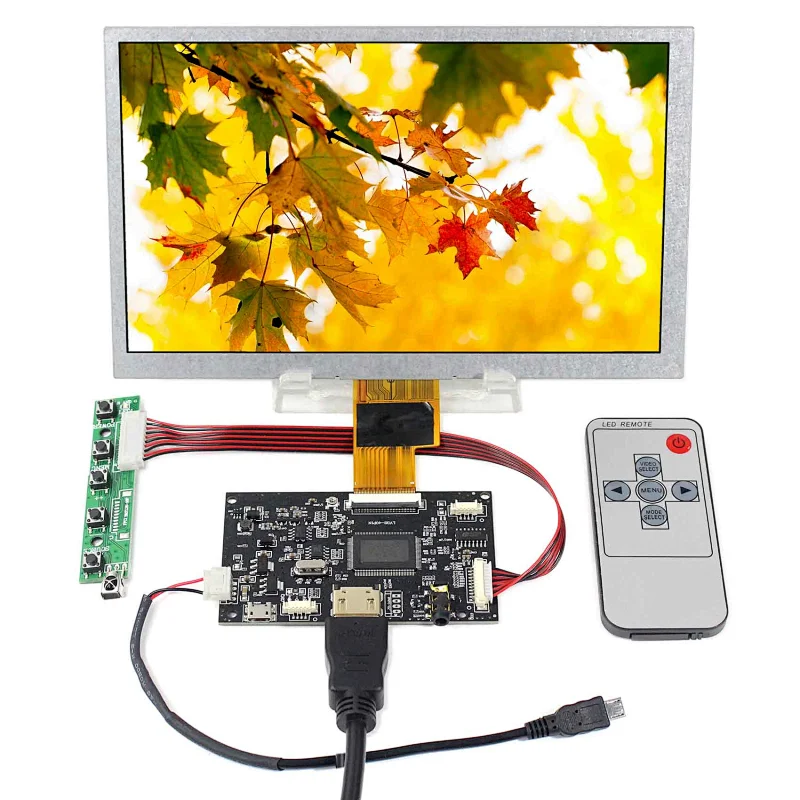

ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd
ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd

ZJ080NA-08A 8inch 1024X600 TFT-LCD Screen With HDMI LCD Controller Board ZJ080NA-08A 8inch 1024X600 hdmi lcd controller board 8inch hdmi controller board hdmi controller for lcd

Model NO.
K001992-VS-TY2660H-V815+ZJ080NA-08A
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

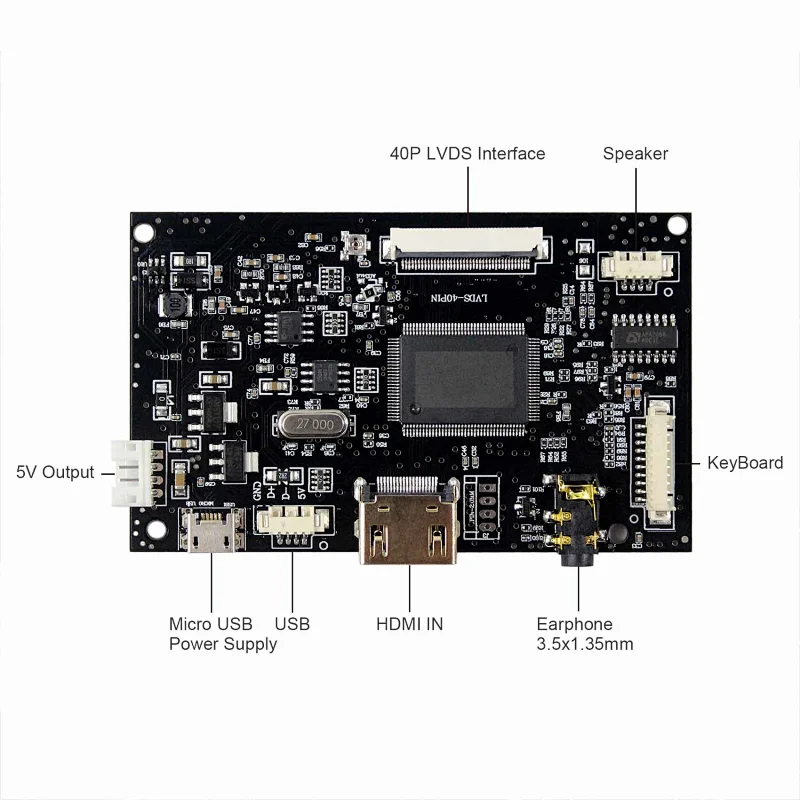

LCD Controller Board:
HDMI LCD Board Work for 40P TTL Interface LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
Audio: Earphone
Power Connector: PH2.0 Micro USB
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 88mm x 53mm x 7mm

8" ZJ080NA-08A 1024X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 192.8 × 116.9×6.7 (H×V×D)
Display Area 176.64 × 99.36(H×V)
Brightness500 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)

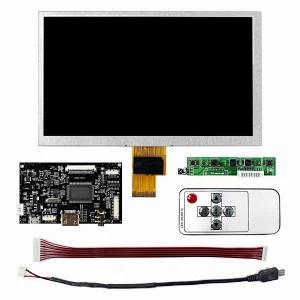

Packing list :
1× HDMILCD Controller Board VS-TY2660H-V815
1×8inch ZJ080NA-08A 1024X600 LCD Screen
1×USB Power Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
