8inch HJ080IA-01E 1024X768 IPS Full Viewing Angle TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board HJ080IA-01E 8inch HJ080IA-01E 1024X768 IPS lcd screen screen and controller board

8inch HJ080IA-01E 1024X768 IPS Full Viewing Angle TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board HJ080IA-01E 8inch HJ080IA-01E 1024X768 IPS lcd screen screen and controller board

Model NO.: K001409 -V59AV1-V1+HJ080IA-01E
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

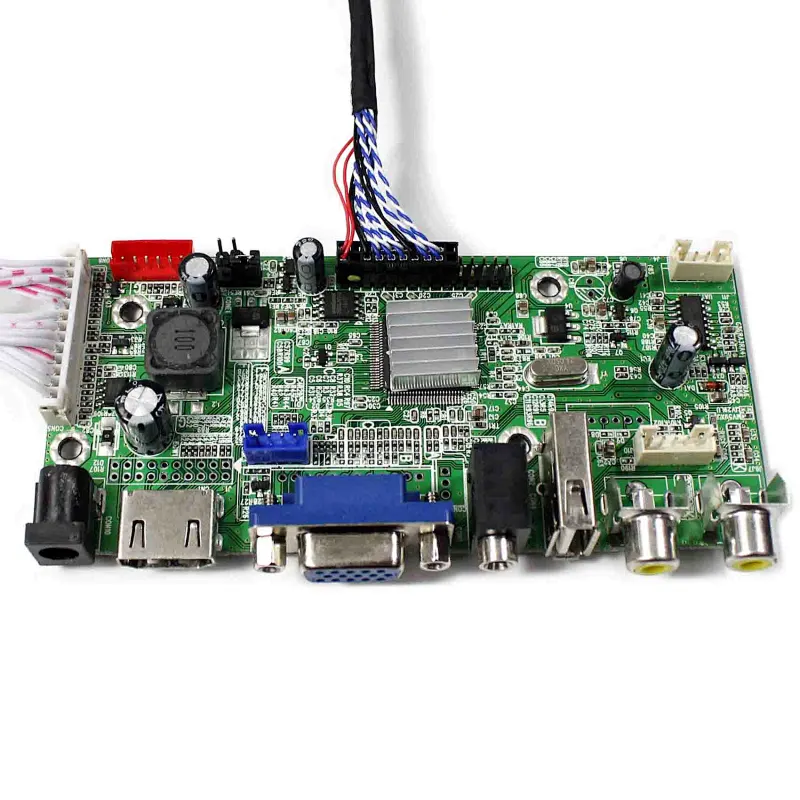

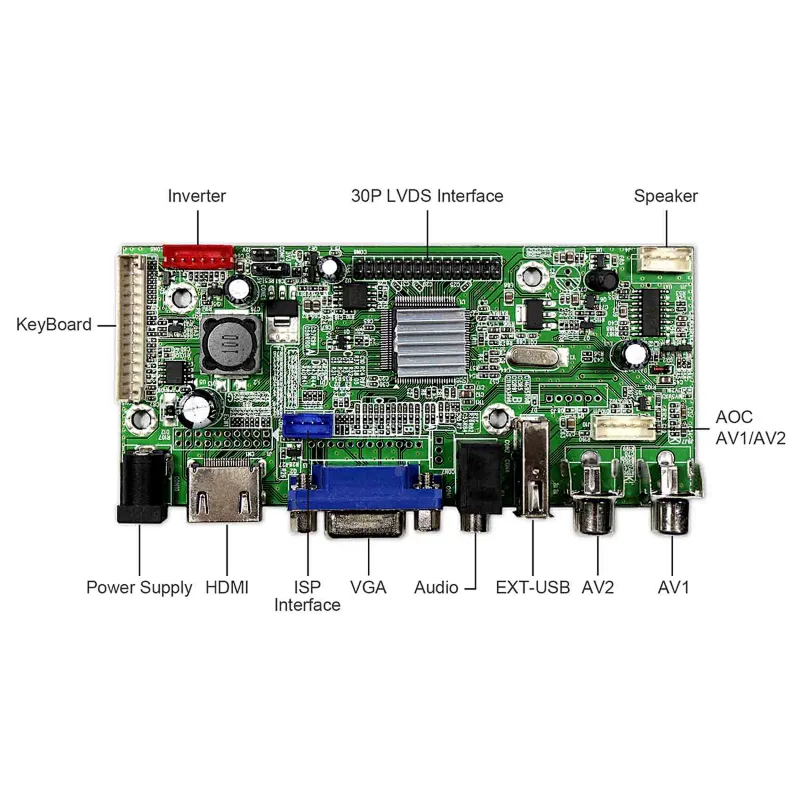

LCD Controller Board:
HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2
USB Support Video
AV1 AV2 Compatible With PAL And NTSC
Video Input: HDMI VGA AV1 AV2 USB
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:118mm x 54mm x 17mm

8"HJ080IA-01E 1024X768 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024RGB)×768
Outline Size 174 × 136×2.75 (H×V×D)
Display Area 162.08 × 121.54(H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

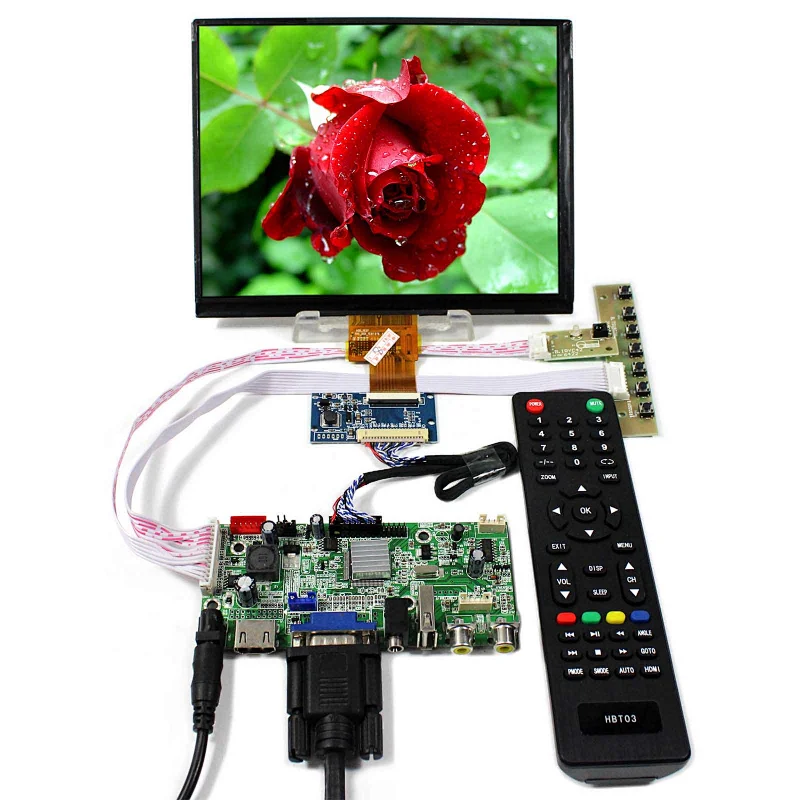

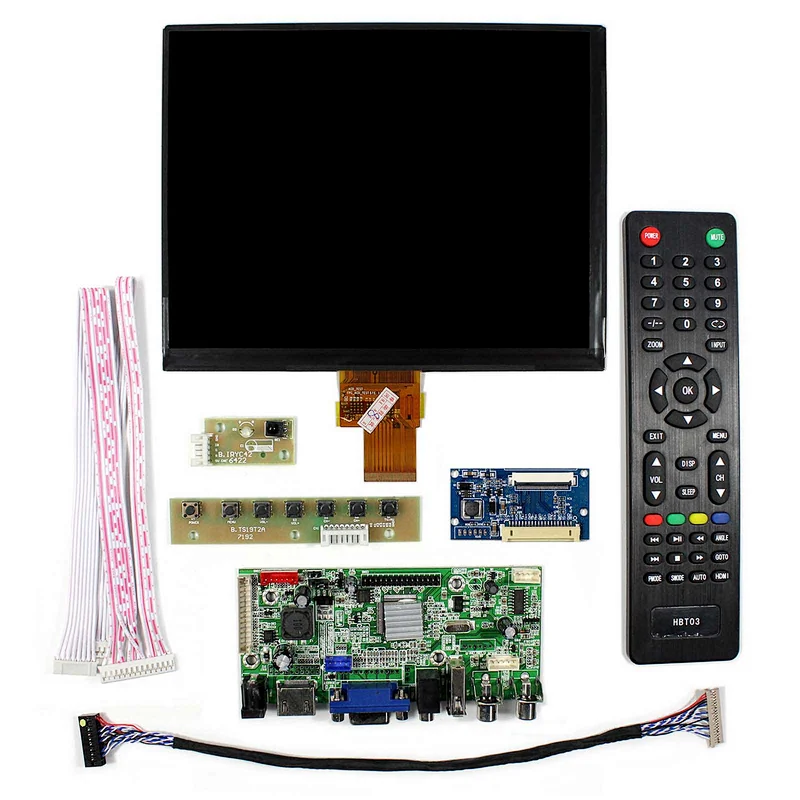

Packing list :
1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
1×8inch HJ080IA-01E 1024X768 IPS LCD Screen
1× Tcon Board VS-TCON40-V1
1× Keyboard With Cable
1× Remote Control(Battery Not included)
