8inch AT080TN64 800X480 TFT-LCD Screen 8inch Touch Panel with HDMI+VGA+AV+USB LCD Controller Board 8inch AT080TN64 800X480 AT080TN64 8inch lcd screen touch screen touch panel

8inch AT080TN64 800X480 TFT-LCD Screen 8inch Touch Panel with HDMI+VGA+AV+USB LCD Controller Board 8inch AT080TN64 800X480 AT080TN64 8inch lcd screen touch screen touch panel

Model NO.: K001402- VS-V59AV1-V1+AT080TN64+TP+USB controller
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

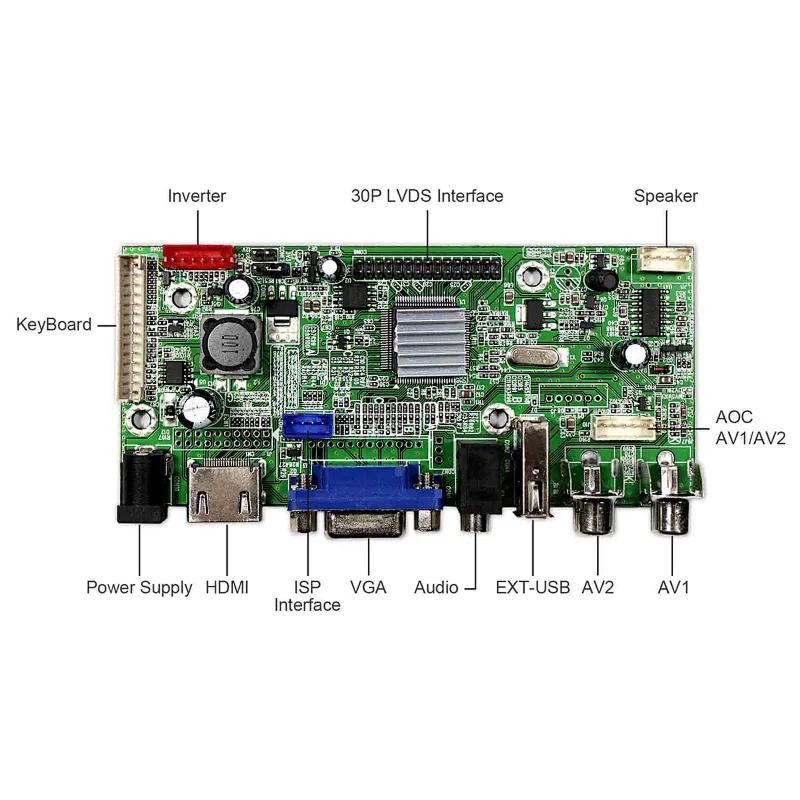

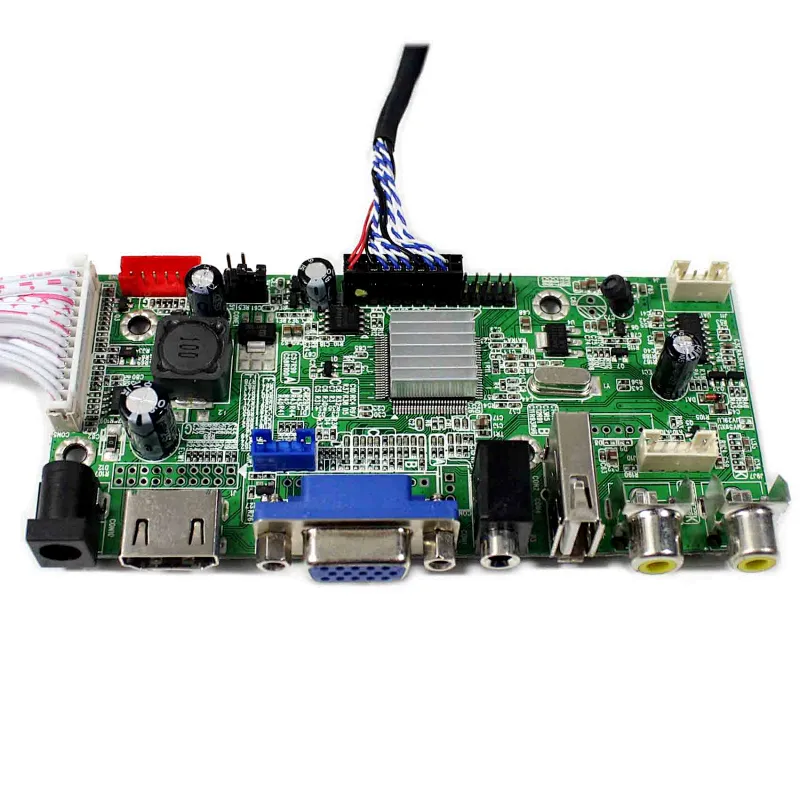

LCD Controller Board:
HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2
USB Support Video
AV1 AV2 Compatible With PAL And NTSC
Video Input: HDMI VGA AV1 AV2 USB
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:118mm x 54mm x 17mm

8"AT080TN64 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800(RGB)×480
Outline Size 192.6 ×116.9×6.7 (H×V×D)
Display Area 176.64 ×99.36 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

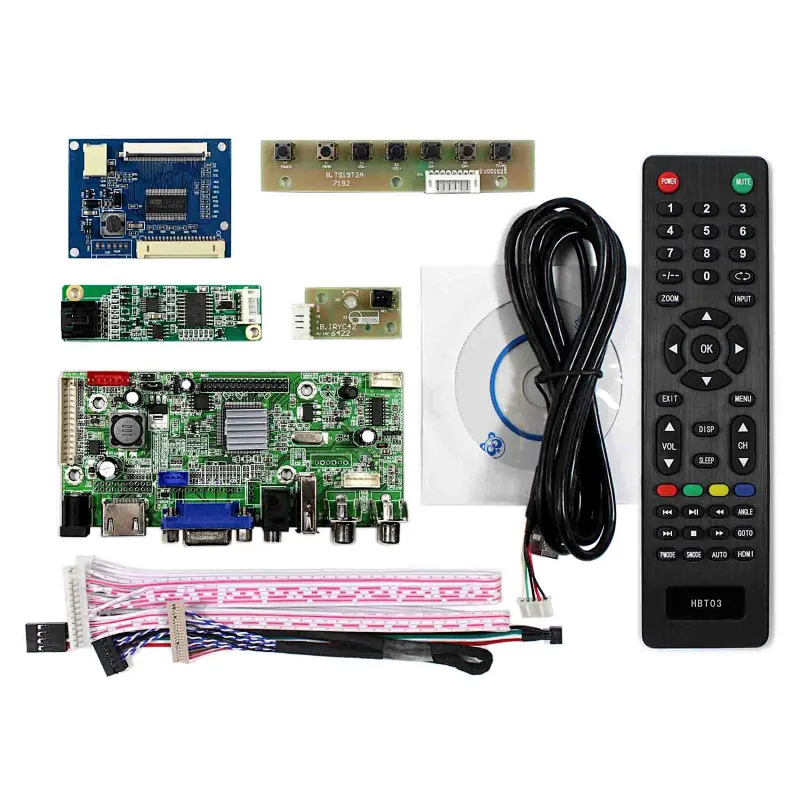

Packing list :
1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
1×8inch AT080TN64 800X480 LCD Screen With Touch Panel VS080TP-A4
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
