Model NO.: K000830- M.NT68676+AT080TN64+VS-TCON50-V1
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

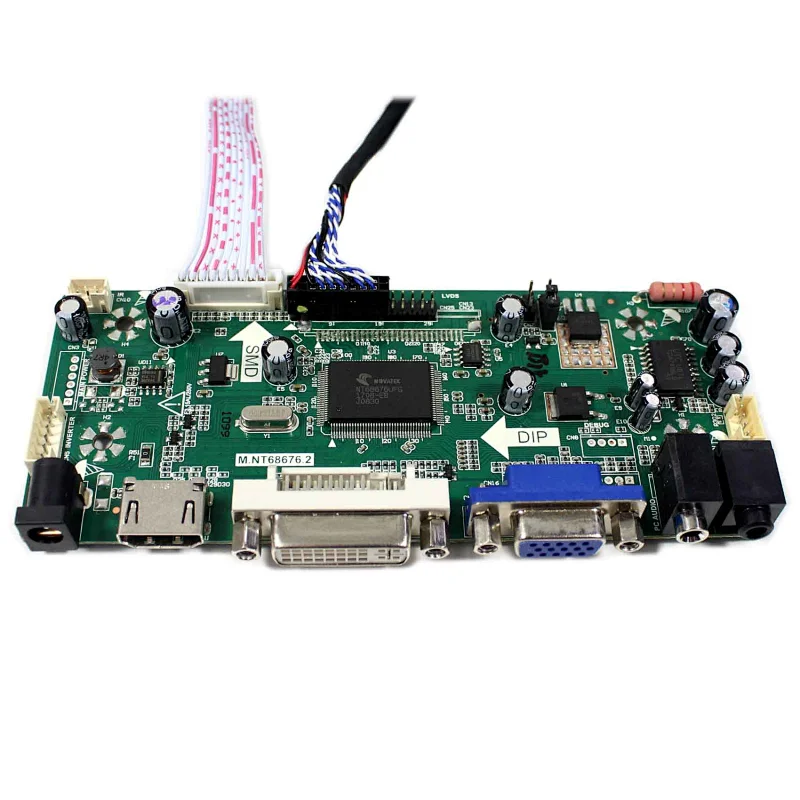

LCD Controller Board:

HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:125mm x 58mm x 17mm

8"AT080TN64 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800（RGB)×480
Outline Size 192.6 ×116.9×6.7 (H×V×D)
Display Area 176.64 ×99.36 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

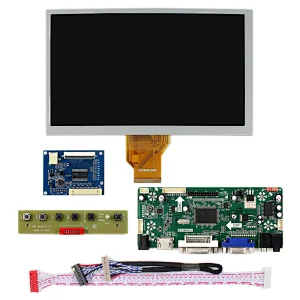

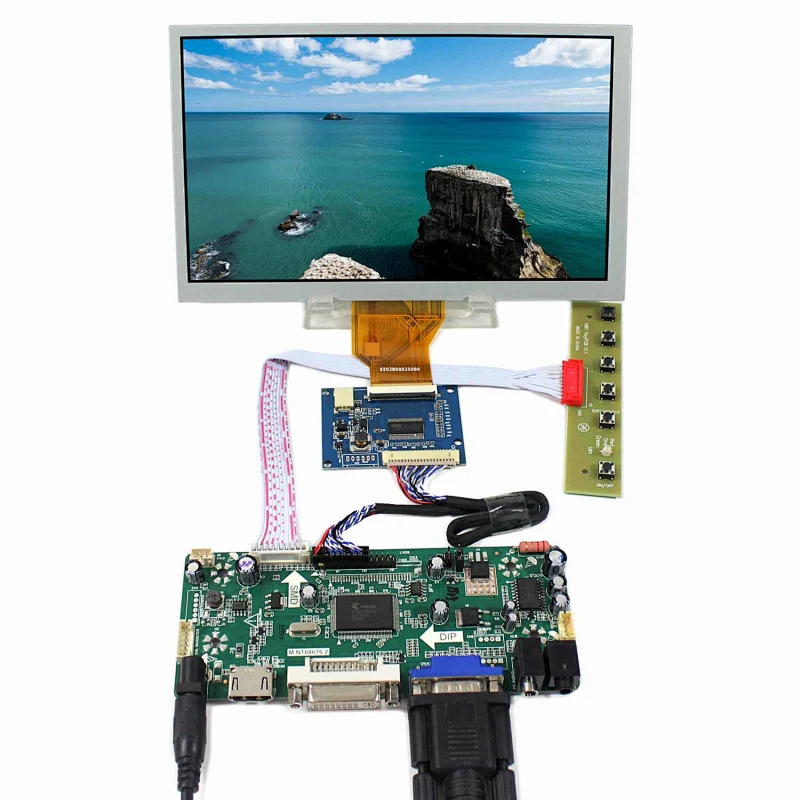

Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676
1×8inch AT080TN64 800X480 LCD Screen
1× LVDS Cable

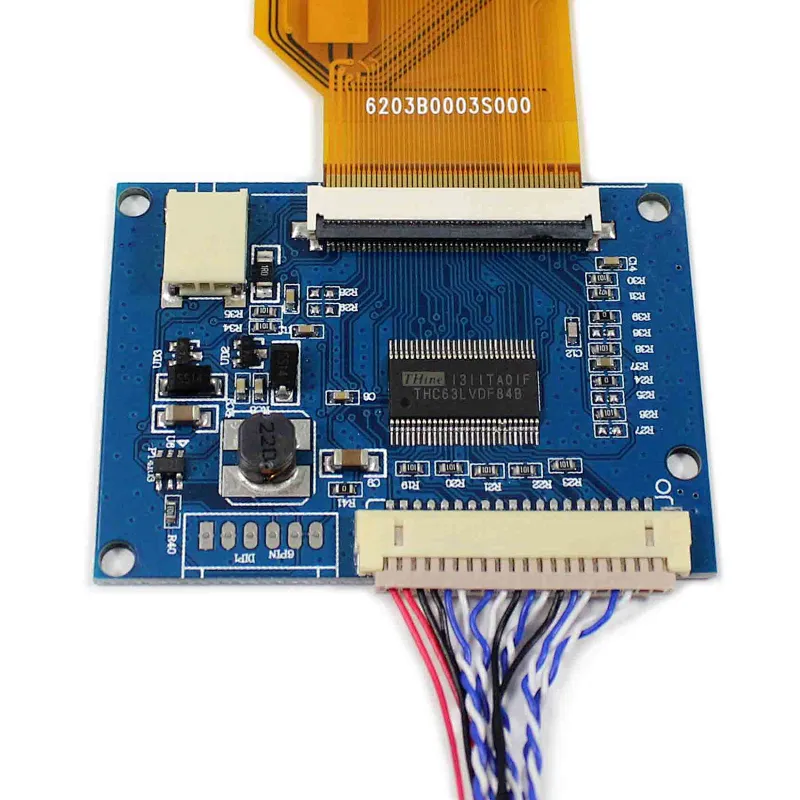

1× Tcon Board VS-TCON50-V1
1× Keyboard With Cable
