Model NO.
K002231-VS-RTD2556HM-V1+VVX09F035M10 8.9inch 1920x1200
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

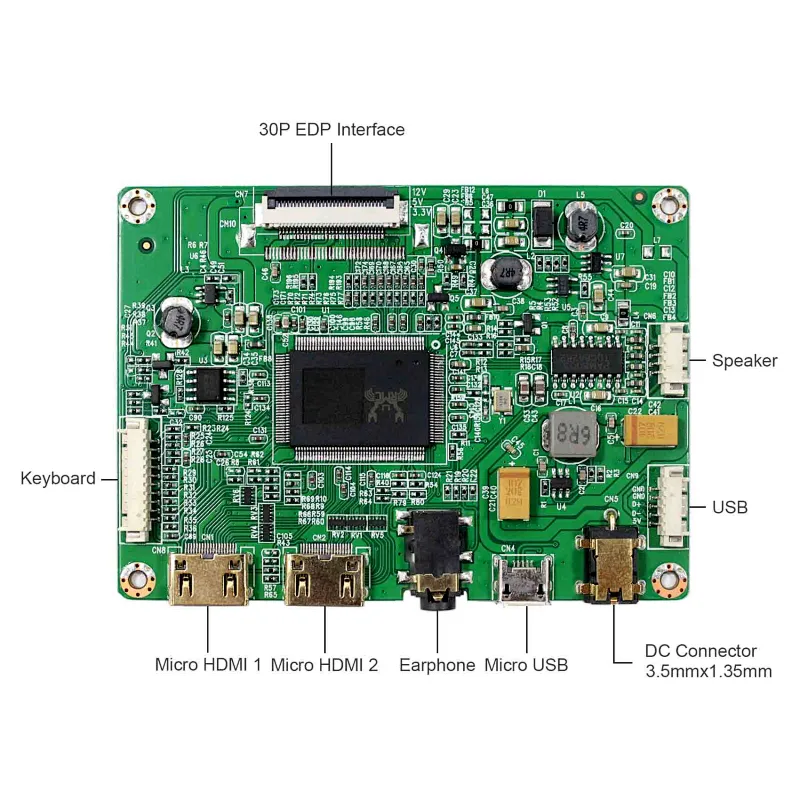

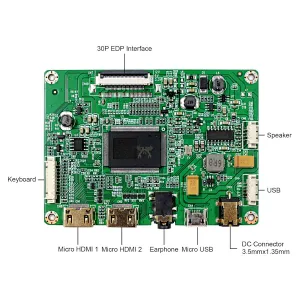

LCD Controller Board:
HDMI Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2HDMI Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size: 82mm x 60mm x 5mm

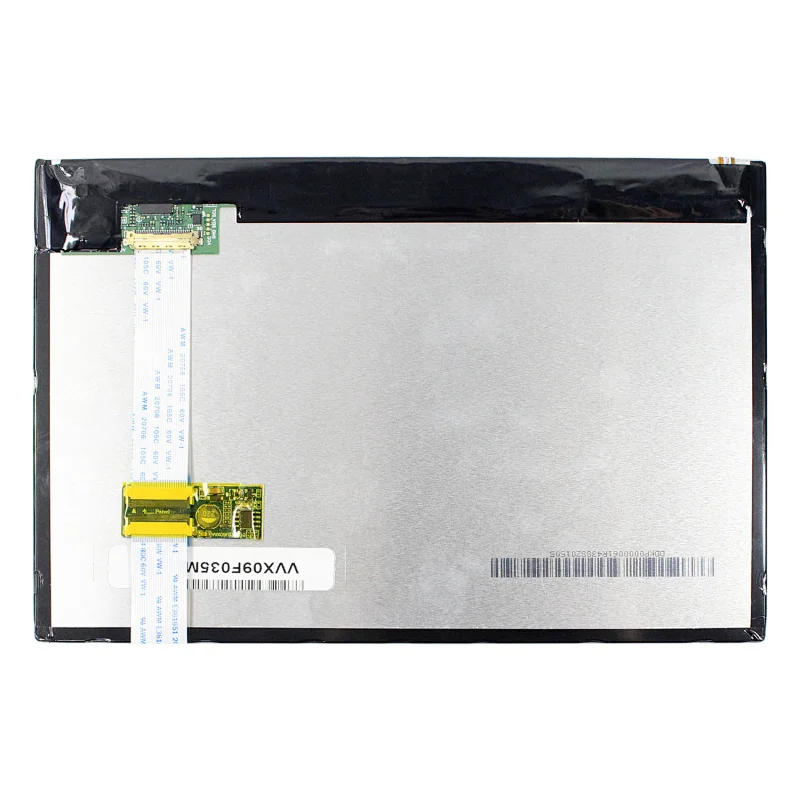

8.9"LCD Screen VVX09F035M10
Display Mode  IPS-Pro, Normally Black, Transmissive
Resolution 1920RGB)×1200
Outline Size 203.5(W)×135.9(H) ×4.8(D) mm
Display Area 191.52(W)×119.7(H) mm
Brightness350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage  3.3V (Typ.)

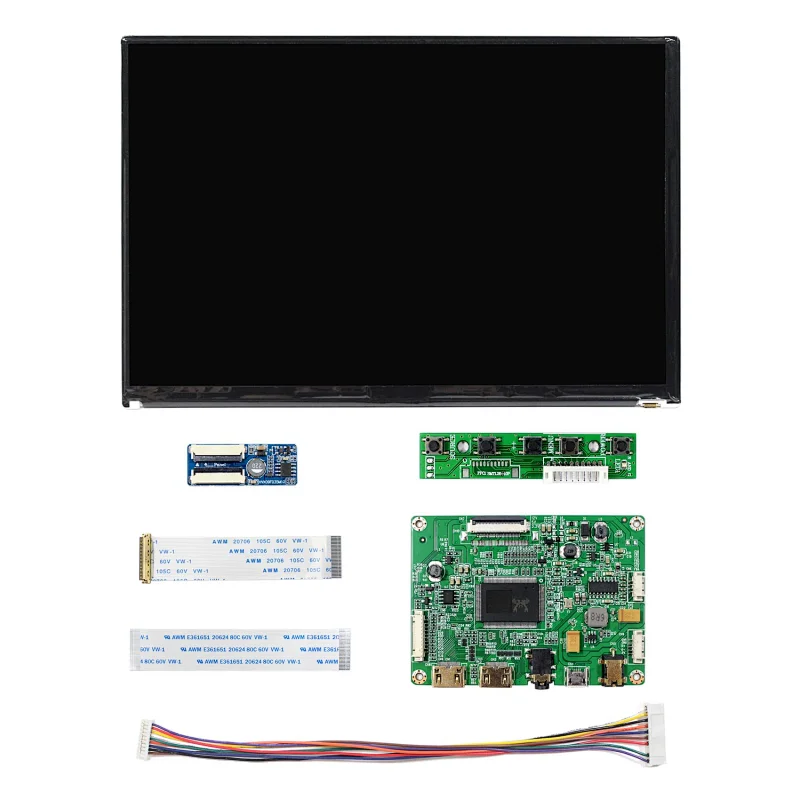

Packing list :
1× 2 HDMI Mini LCD Controller VS-RTD2556HM-V1
1× 8.9inchVVX09F035M101920X1200 IPS LCD Screen
1×Converter Board
1× Signal Cable
1× Keyboard With Cable
When use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc.
Micro USB output 5Vdc 500mA.
When use Micro USB as input. Power Supply Input Voltage 5Vdc.
When use 5Vdc as input. Power Supply Input current more than 2A.
When use 12Vdc as input. Power Supply Input current more than 1A.
