9inch AT090TN10 800X480 TFT-LCD 9inch CapacitiveTouch Panel with HDMI LCD Controller Board 9inch AT090TN10 800X480 9inch AT090TN10 AT090TN10 lcd panel controller board 800x480 touch screen panel

9inch AT090TN10 800X480 TFT-LCD 9inch CapacitiveTouch Panel with HDMI LCD Controller Board 9inch AT090TN10 800X480 9inch AT090TN10 AT090TN10 lcd panel controller board 800x480 touch screen panel

Model NO.: K001956-VS-TY50-V2+AT090TN10+VS090TC01-C1 T000068
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

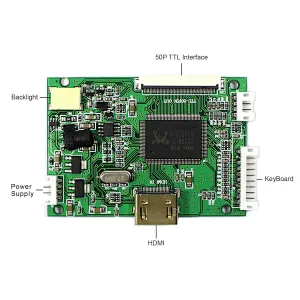

LCD Controller Board:
HDMI LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter: 5Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 70mm x 50mm x 8mm

9"AT090TN10 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 211.1× 126.5×5.7 (H×V×D)
Display Area 198 ×111.7 (H×V)
Brightness450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

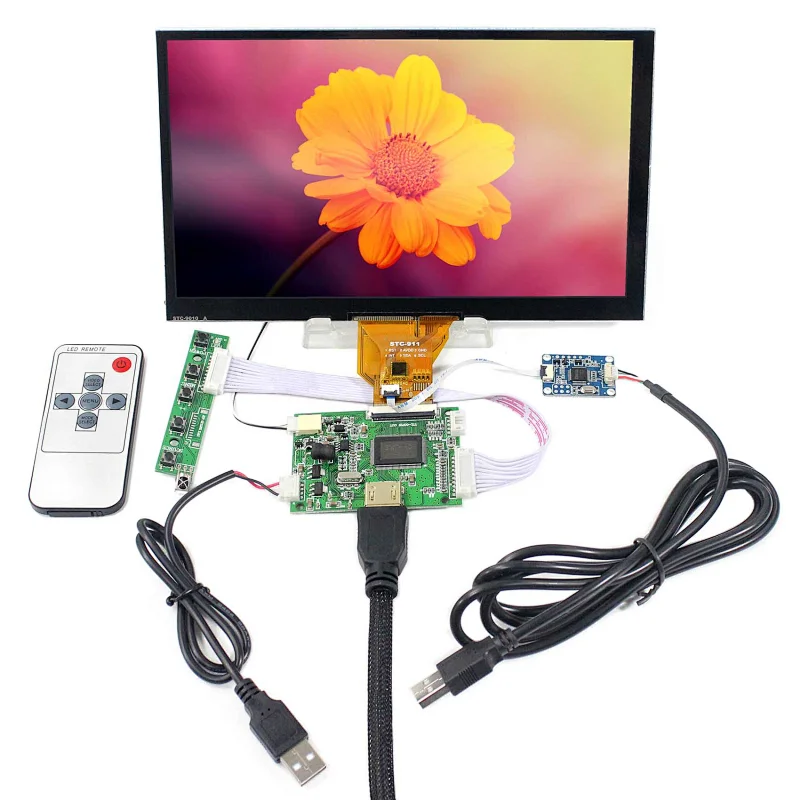

Packing list :
1× HDMI LCD Controller Board VS-TY50-V2
1×9inch AT090TN10 800X480 LCD With CapacitiveTouch Panel VS090TC01-C1
1× USB Controller Card
1× USB Cable
1× Power Supply Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
