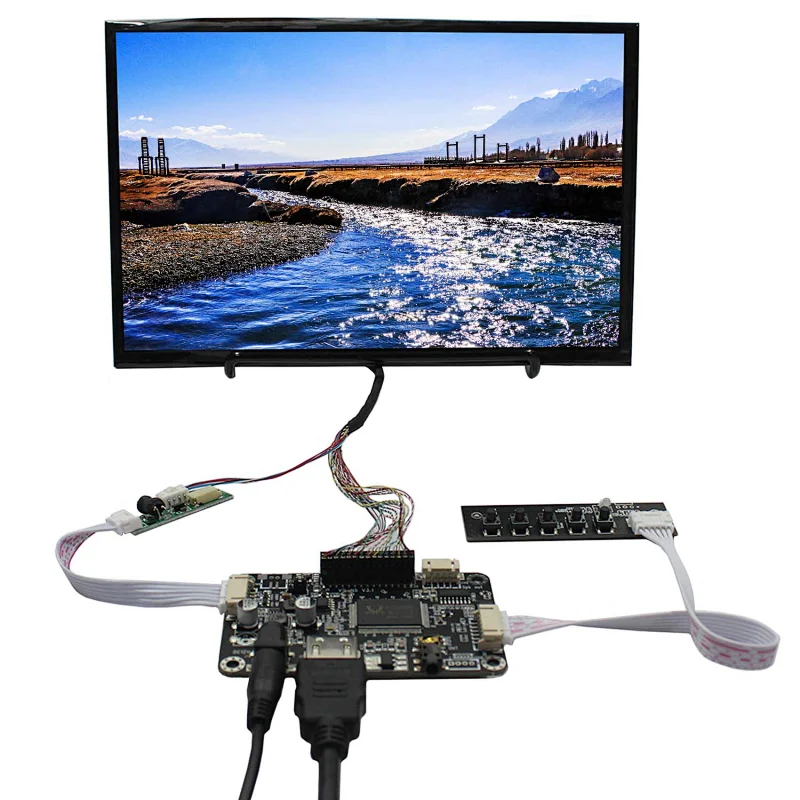

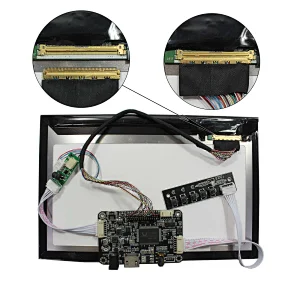

10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200
10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200

10.1inch B101UAN02.1 1920×1200 TFT-LCD screen with HD-MI Audio LCD Controller Board 10.1inch B101UAN02.1 1920×1200 10.1inch B101UAN02.1 B101UAN02.1 B101UAN02.1 1920×1200

Model NO.
K002769-VS-N5V3.1H+B101UAN02.1 1920x1200
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

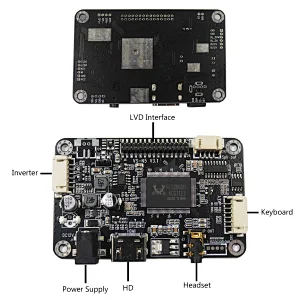

LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

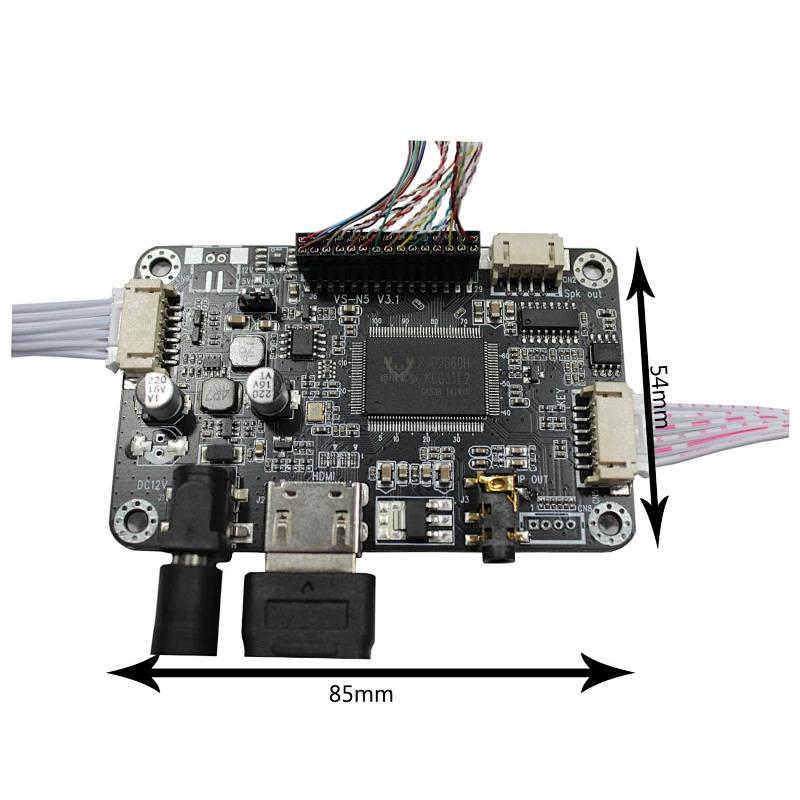

Board Size: 85mm x 54mm x 14mm

10.1"B101UAN02.1 1920X1200 LCD Screen:
DisplayMode AHVA, Normally Black Transmissive
Resolution 1920RGB)×1200
Outline Size 229.45 × 149.2×5 (H×V×D)
Display Area 216.81 × 135.5 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit) , Connector , 50 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

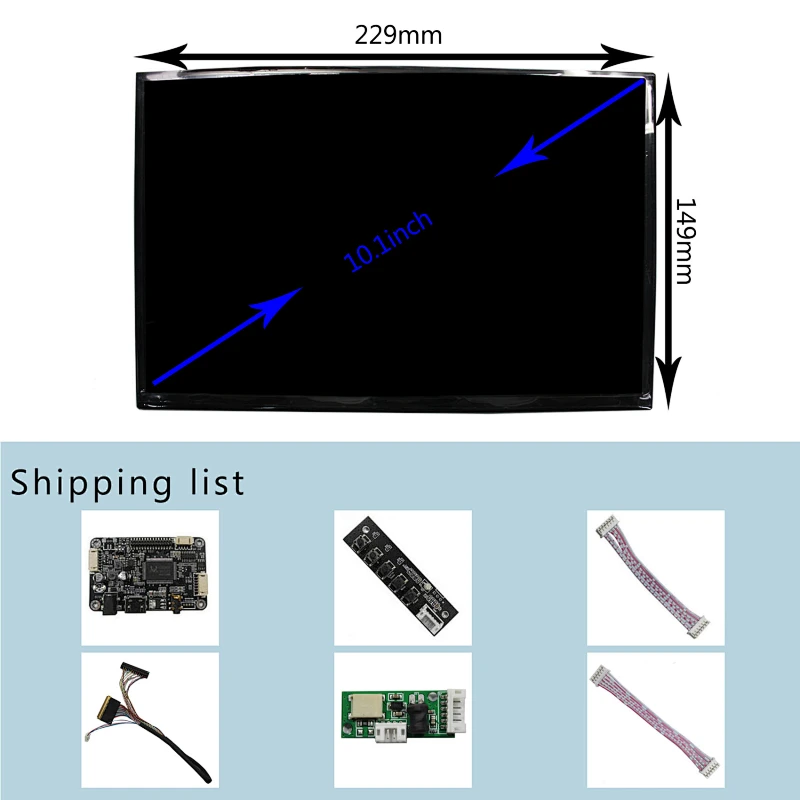

Packing list :
1× HD-MI Audio LCD Controller Board VS-N5V3.1H
1× 10.1inch B101UAN02.1 1920×1200 LCD Screen
1× Inverter Board
1× LVDS Cable
