Model NO.: K001863-VS-TY2660H-V1+M101NWWB+VS101TP-A4
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

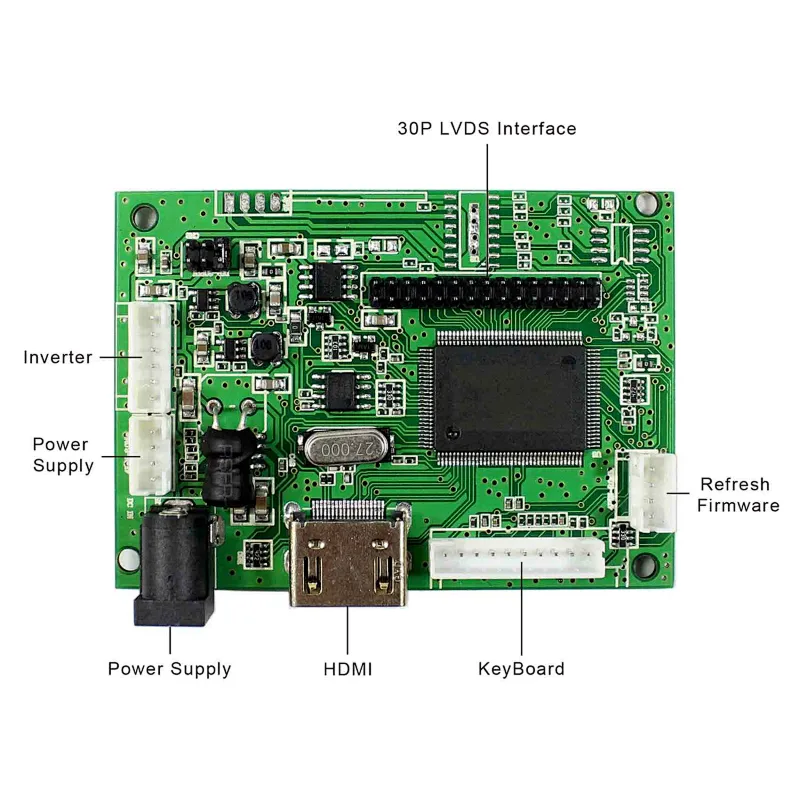

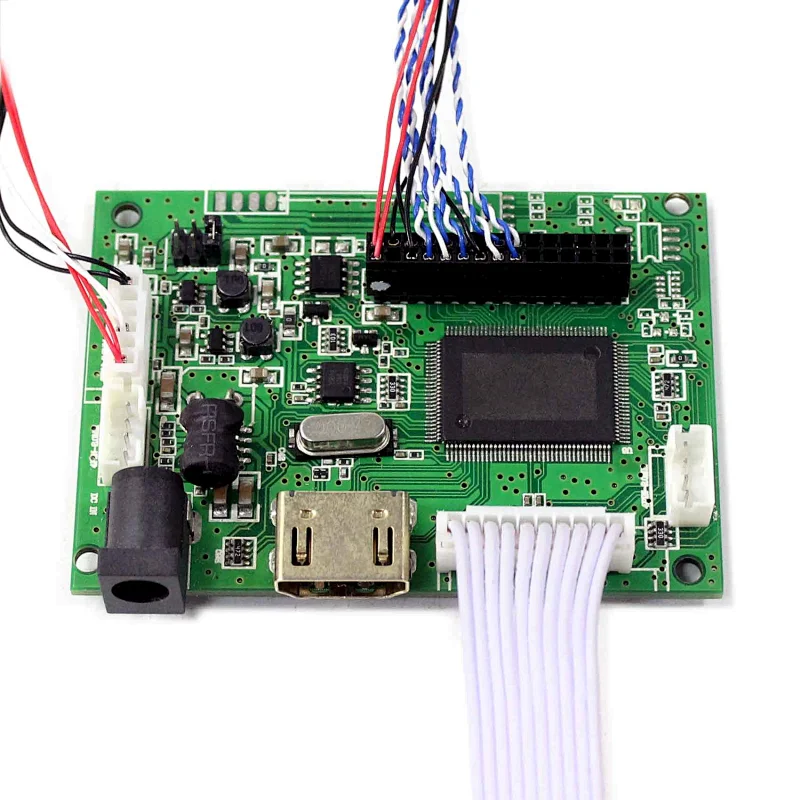

LCD Controller Board:

HDMI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm

10.1"M101NWWB 1280X800 LCD Screen:
Display Mode MVA, Normally Black, Transmissive
Resolution 1280RGB)×800
Outline Size 229.46 × 149.1×4.56(H×V×D)
Display Area 216.96× 135.6 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

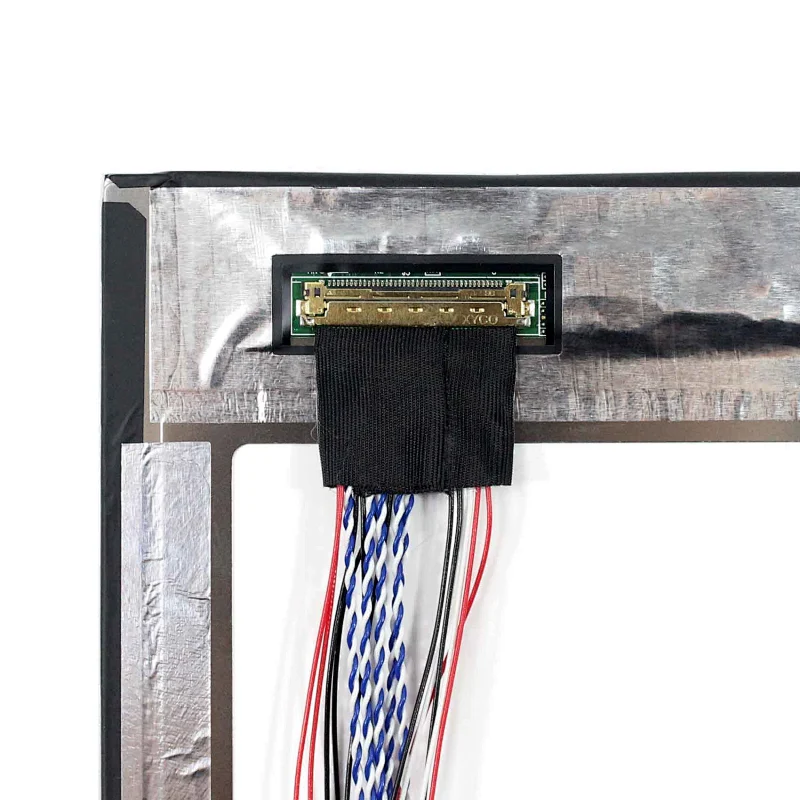

Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

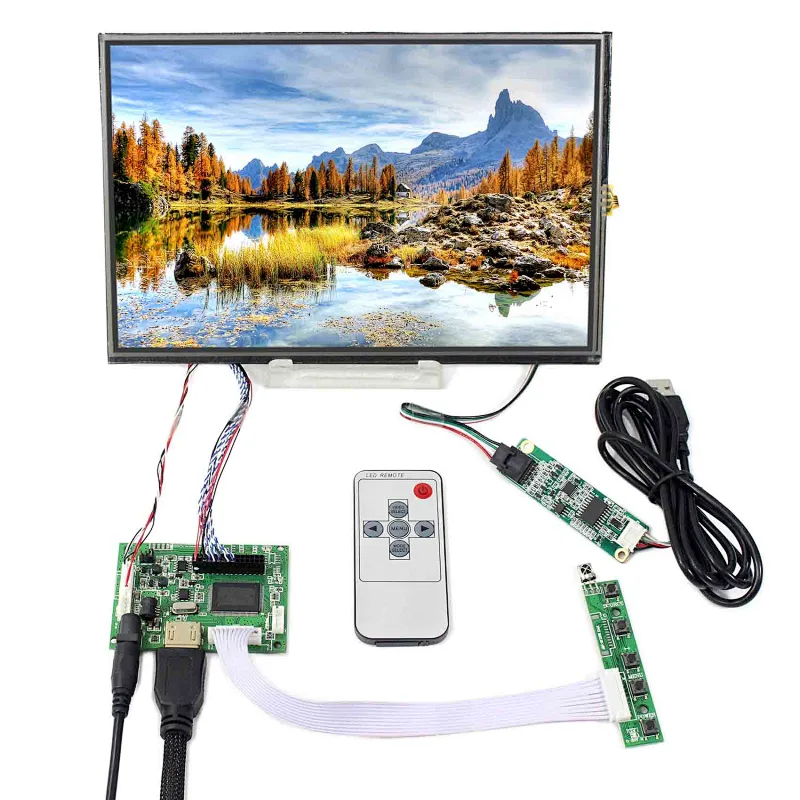

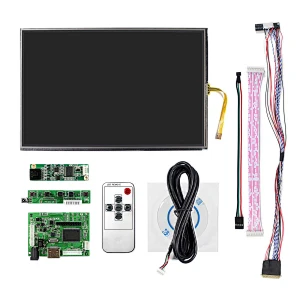

Packing list :
1× HDMI LCD Controller Board VS-TY2660H-V1
1×10.1inch M101NWWB 1280X800 LCD Screen With Resistive Touch Panel VS101TP-A4
1× LVDS Cable
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
