VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board
VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board
VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board
VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board
VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board
VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board
VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board
VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board
VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board
VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board
VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board

VGA LCD Controller Board Work for 1366x768 LVDS Interface LCD Screen VGA LCD Controller Board VGA Board for 1366x768 lvds lcd 1366x768 lvds lcd LCD Controller board

Model NO.
K000404 RTMC1-A+IPEX40P 0.5mm 2ch 6bit for 1366x768
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

LCD Controller Board:

VGA LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: VGA

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

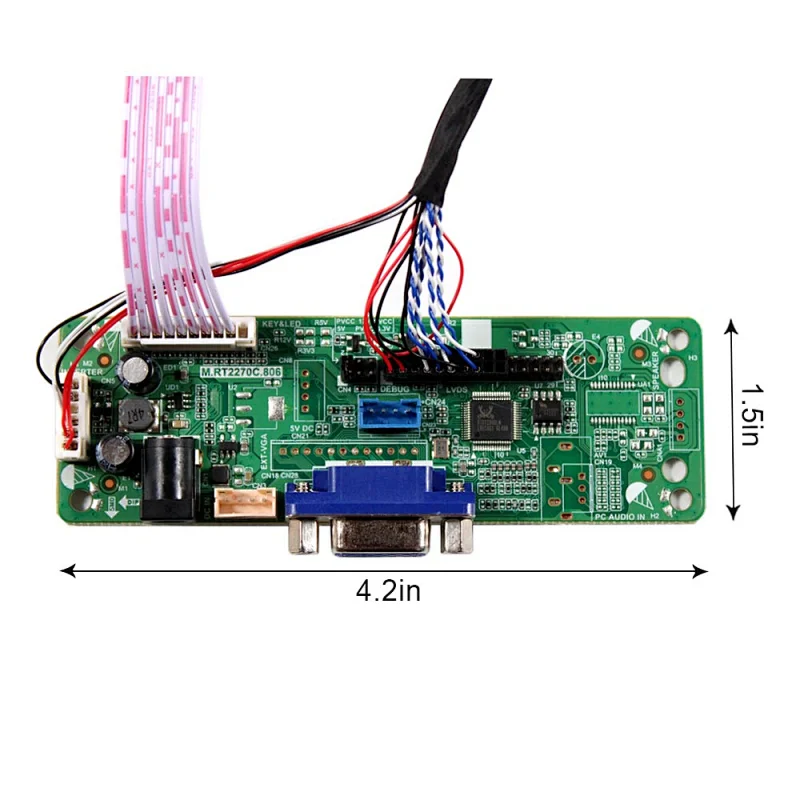

Board Size:107mm x 35mm x 18mm

Compatible Work With:

14inch 1366x768:

LTN140AT02 LTN140AT07 LP140WH1 BT140XW02 HT140WXB HSD140PHW1

N140B6 B140XW01 B140XW02 B140XW03 LP140WH1 LP140WH3 LP140WH4

15.6inch 1366x768:

LTN156AT17 LTN156AT02 LTN156AT24 LP156WH2 LP156WH4 BT156GW02

N156B6 B156XTN03 B156XW02 B156XW04 B156XTN02.1

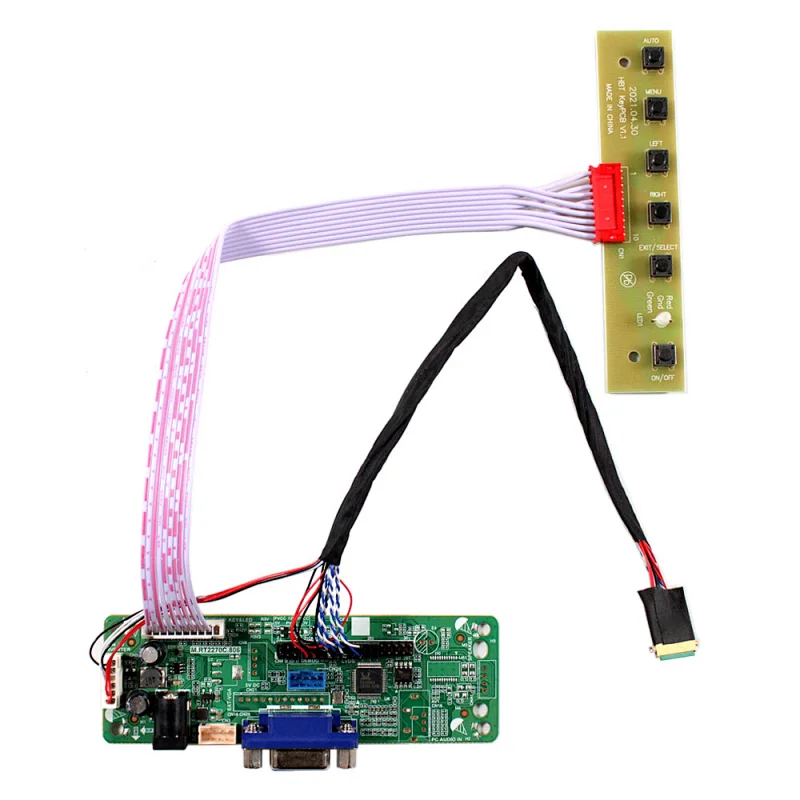

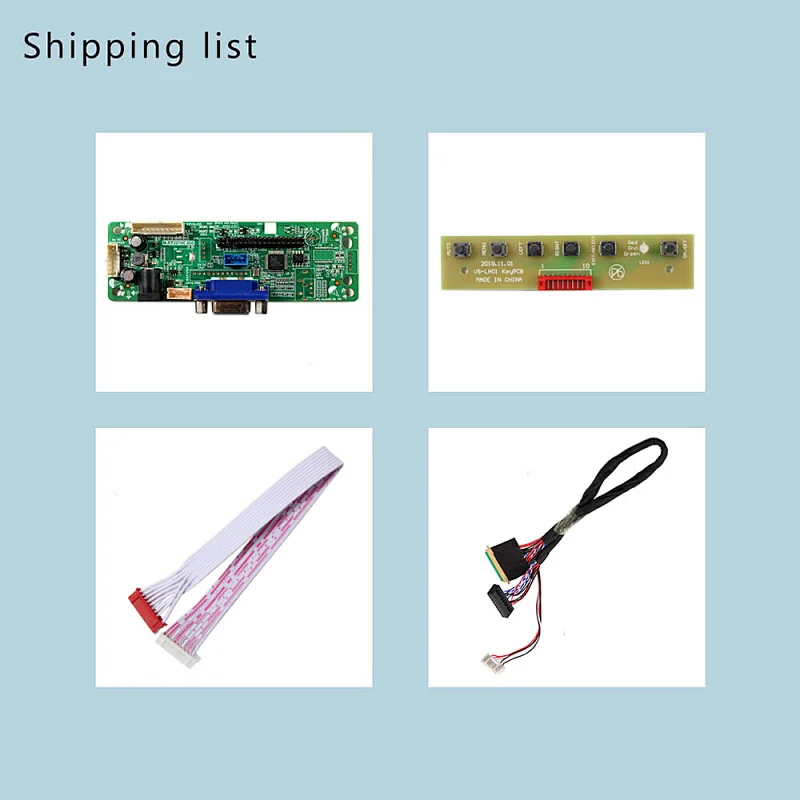

Packing list :

1× VGA LCD Controller Board RTMC1-A

1× 40Pin Signal Cable

1× Keyboard With Cable
