HDMI LCD Controller Board Compatible with 10.1inch 1920 x 1200 G101UAN01.0 lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi
HDMI LCD Controller Board Compatible with 10.1inch 1920 x 1200 G101UAN01.0 lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi
HDMI LCD Controller Board Compatible with 10.1inch 1920 x 1200 G101UAN01.0 lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi
HDMI LCD Controller Board Compatible with 10.1inch 1920 x 1200 G101UAN01.0 lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi
HDMI LCD Controller Board Compatible with 10.1inch 1920 x 1200 G101UAN01.0 lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi
HDMI LCD Controller Board Compatible with 10.1inch 1920 x 1200 G101UAN01.0 lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi
HDMI LCD Controller Board Compatible with 10.1inch 1920 x 1200 G101UAN01.0 lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi
HDMI LCD Controller Board Compatible with 10.1inch 1920 x 1200 G101UAN01.0 lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi
HDMI LCD Controller Board Compatible with 10.1inch 1920 x 1200 G101UAN01.0 lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi

HDMI LCD Controller Board Compatible with 10.1inch 1920 x 1200 G101UAN01.0 lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi

Model NO.
K002073-VS-TYEDP-V807 For 1920x1200 G101UAN01.0
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
LCD Controller Board:
HDMI LCD Board Work for 30Pin eDP Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI Version 1.4
Audio Output: Support Speaker 4ohm 2W or 8ohm 1.5W
Firmware Change via Jumper Position
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 72mm x 51mm x 6mm

Compatible Work With:
10.1inch 1920 x 1200:
G101UAN01.0

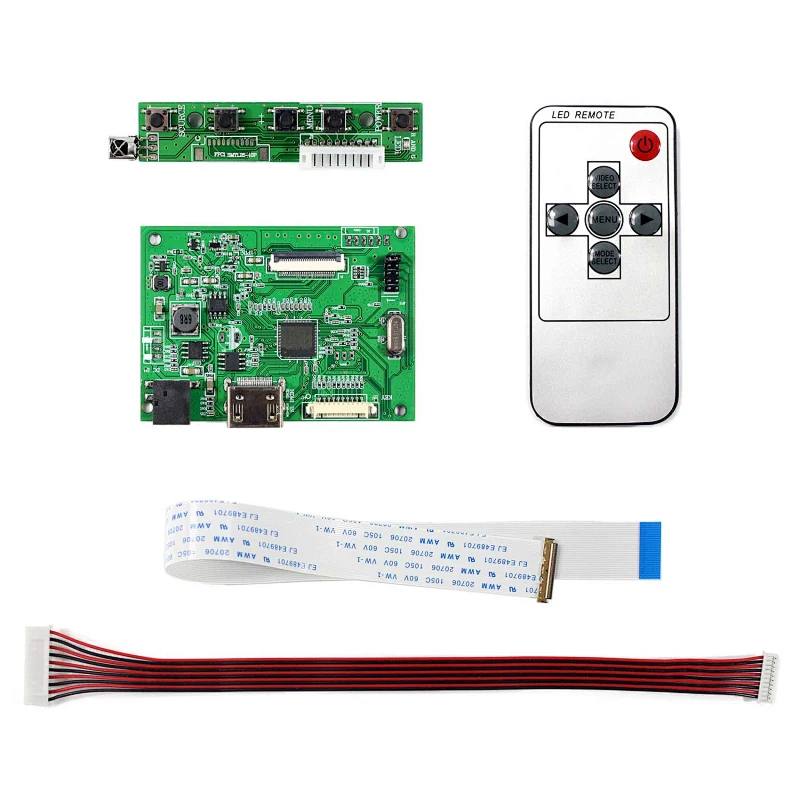

Packing list :
1× HDMI LCD Controller Board VS-TYEDP-V807
1× 30Pin Signal Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
