Model NO.: K002245-VS-RT2795T4K-V5 For 3860x2140 4K LCD Screen
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

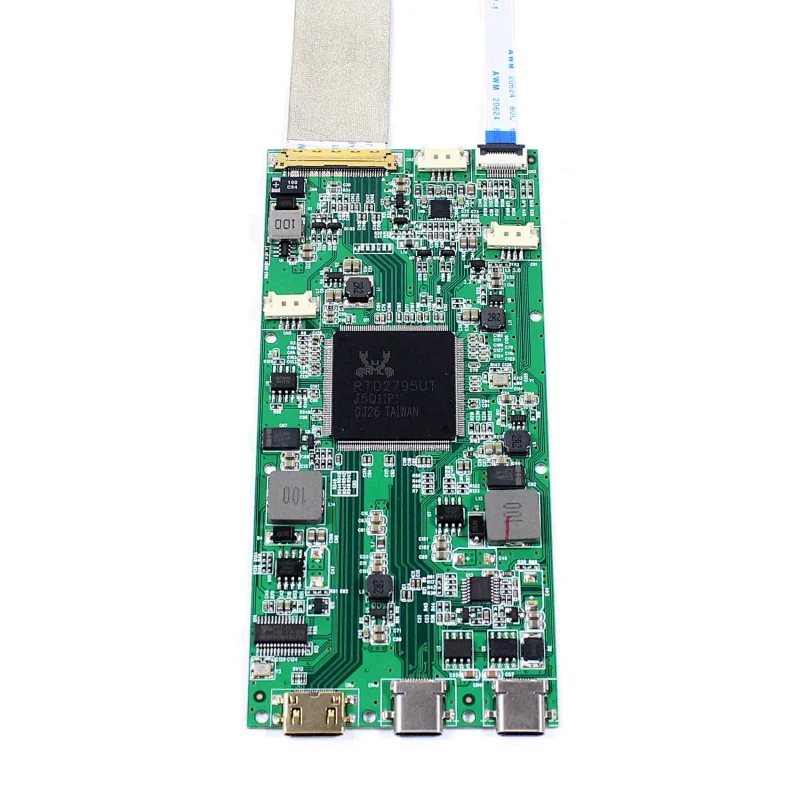

LCD Controller Board:
Type C HDMI Board For4 Lane eDP Support Max 4096x2160 60Hz LCD Screen
Input Power Adapter: 5Vdc Type C
Come In Standby Model When Not Input Signal
Standby Model <1.2W
HDR: Support

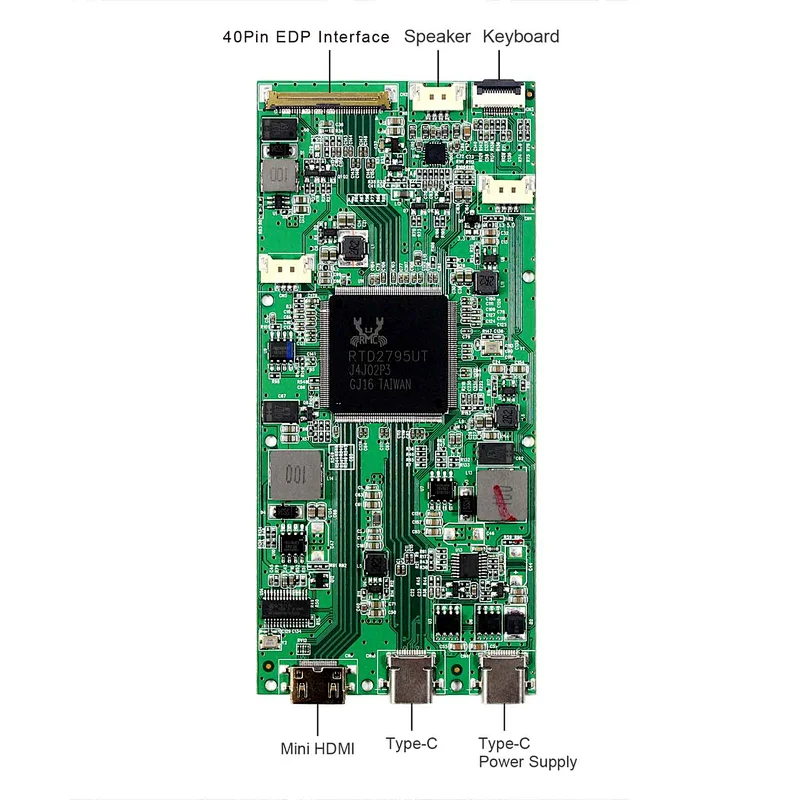

Video Input
HDMI (HDMI 2.0 max 3840x2160 60Hz Support HDCP2.2)
Type-C (Data Transmission Image Display 5V Max 3A output)
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size: 56.5mm x 125mm x 5mm

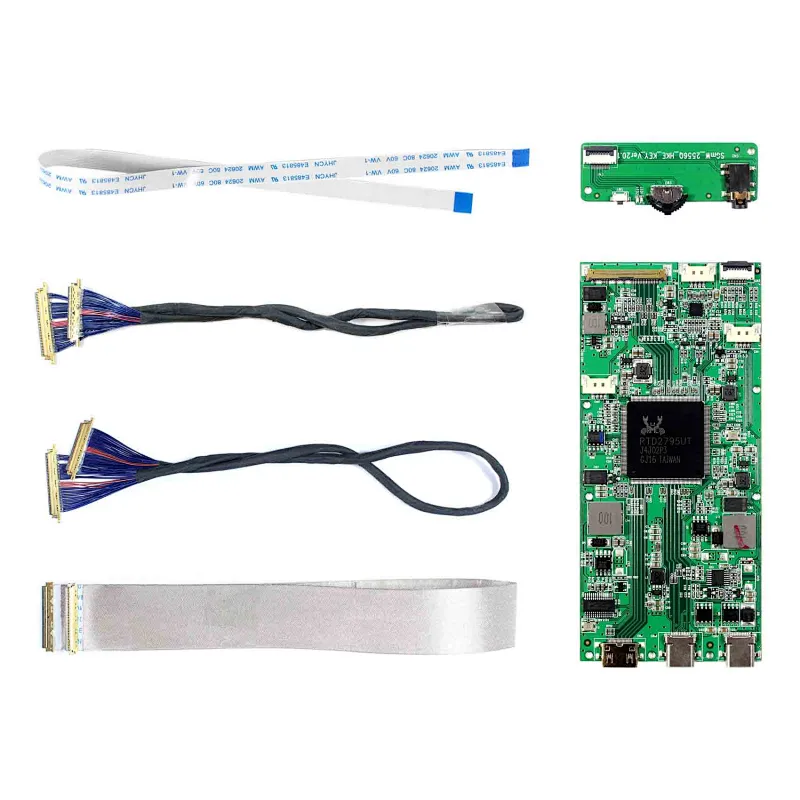

Compatible Work With:

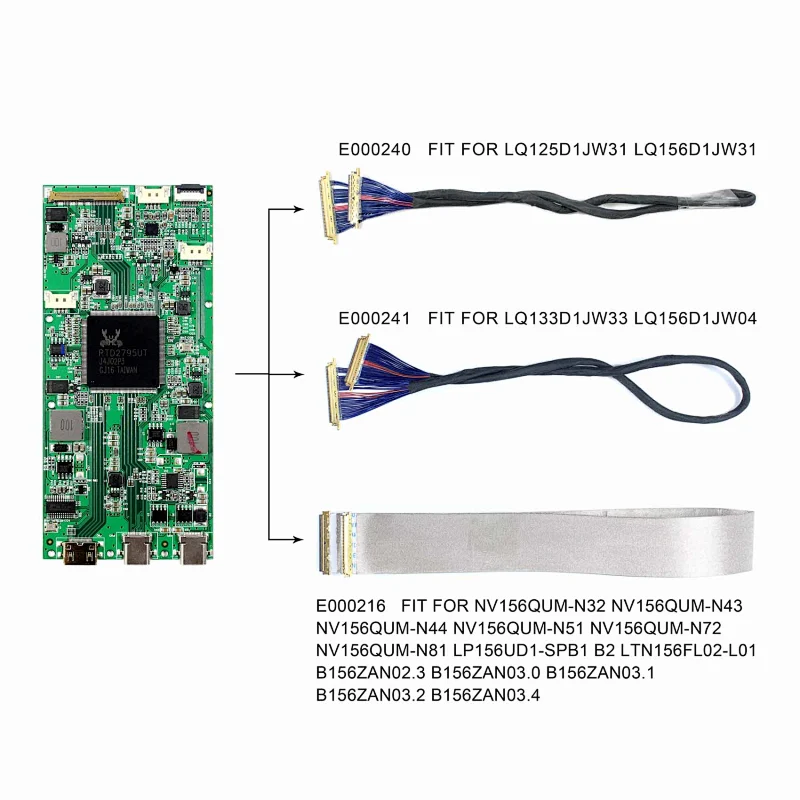

E000216 Fit For NV156QUM-N32 NV156QUM-N43 NV156QUM-N44 NV156QUM-N51
NV156QUM-N72 NV156QUM-N81 LP156UD1-SPB1 B2 LTN156FL02-L01 B156ZAN02.3
B156ZAN03.0 B156ZAN03.1 B156ZAN03.2 B156ZAN03.4
E000240 Fit For LQ125D1JW31 LQ156D1JW31
E000241 Fit For LQ133D1JW33 LQ156D1JW04
