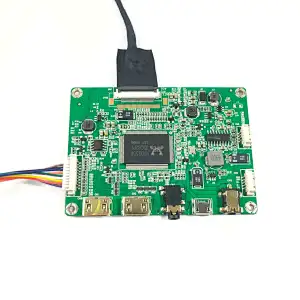

HDMI Mini LCD Controller board Compatible With 15.6inch 1920X1080 120Hz N156HHE-GA1 N156HCE-GA2 lcd controller board edp driver board mini lcd controller board
HDMI Mini LCD Controller board Compatible With 15.6inch 1920X1080 120Hz N156HHE-GA1 N156HCE-GA2 lcd controller board edp driver board mini lcd controller board
HDMI Mini LCD Controller board Compatible With 15.6inch 1920X1080 120Hz N156HHE-GA1 N156HCE-GA2 lcd controller board edp driver board mini lcd controller board
HDMI Mini LCD Controller board Compatible With 15.6inch 1920X1080 120Hz N156HHE-GA1 N156HCE-GA2 lcd controller board edp driver board mini lcd controller board
HDMI Mini LCD Controller board Compatible With 15.6inch 1920X1080 120Hz N156HHE-GA1 N156HCE-GA2 lcd controller board edp driver board mini lcd controller board
HDMI Mini LCD Controller board Compatible With 15.6inch 1920X1080 120Hz N156HHE-GA1 N156HCE-GA2 lcd controller board edp driver board mini lcd controller board
HDMI Mini LCD Controller board Compatible With 15.6inch 1920X1080 120Hz N156HHE-GA1 N156HCE-GA2 lcd controller board edp driver board mini lcd controller board
HDMI Mini LCD Controller board Compatible With 15.6inch 1920X1080 120Hz N156HHE-GA1 N156HCE-GA2 lcd controller board edp driver board mini lcd controller board
HDMI Mini LCD Controller board Compatible With 15.6inch 1920X1080 120Hz N156HHE-GA1 N156HCE-GA2 lcd controller board edp driver board mini lcd controller board

HDMI Mini LCD Controller board Compatible With 15.6inch 1920X1080 120Hz N156HHE-GA1 N156HCE-GA2 lcd controller board edp driver board mini lcd controller board

Model NO.
K002317-VS-RTD2556HM-V2-N156HHE N156HCE b156han04.2 1920X1080
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

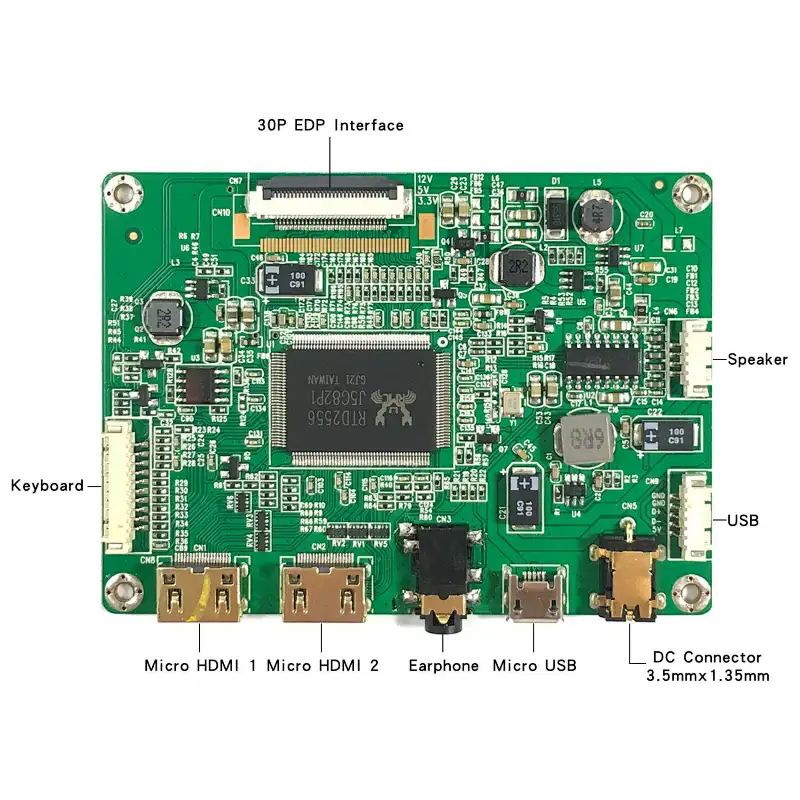

LCD Controller Board:
HDMI Board Work for 40Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2HDMI Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size: 82mm x 60mm x 5mm

Compatible Work With:
15.6inch 1920X1080 120Hz
N156HHE-GA1 N156HCE-GA2

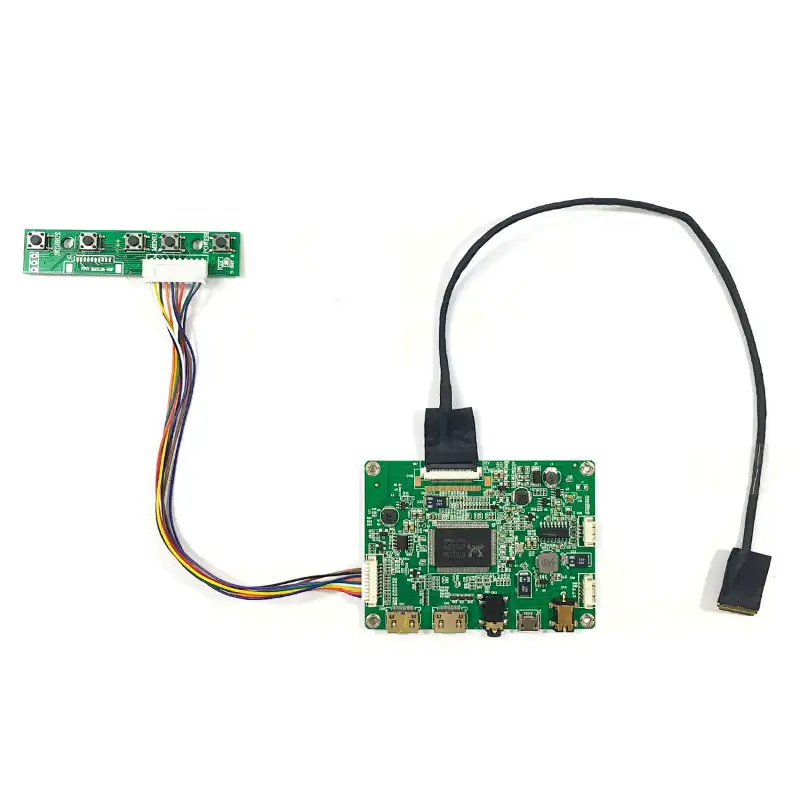

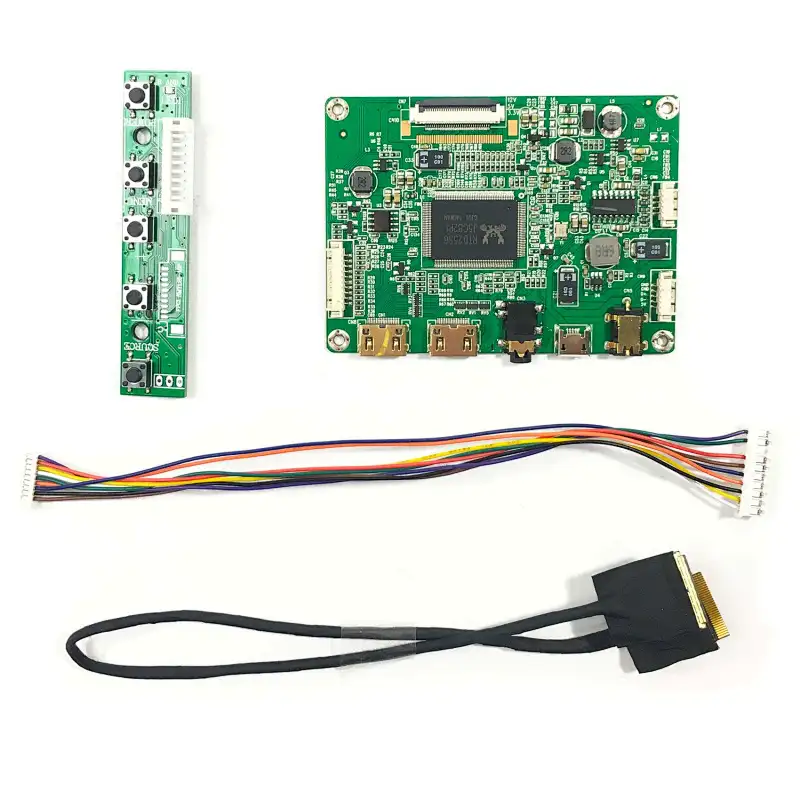

Packing list :
1× HDMI Mini LCD Controller VS-RTD2556HM-V2
1× Signal Cable
1× Keyboard With Cable
