Model NO.: K002984-ME.RT2525.EB818+10.4inch 800x600 VS104T-001A
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

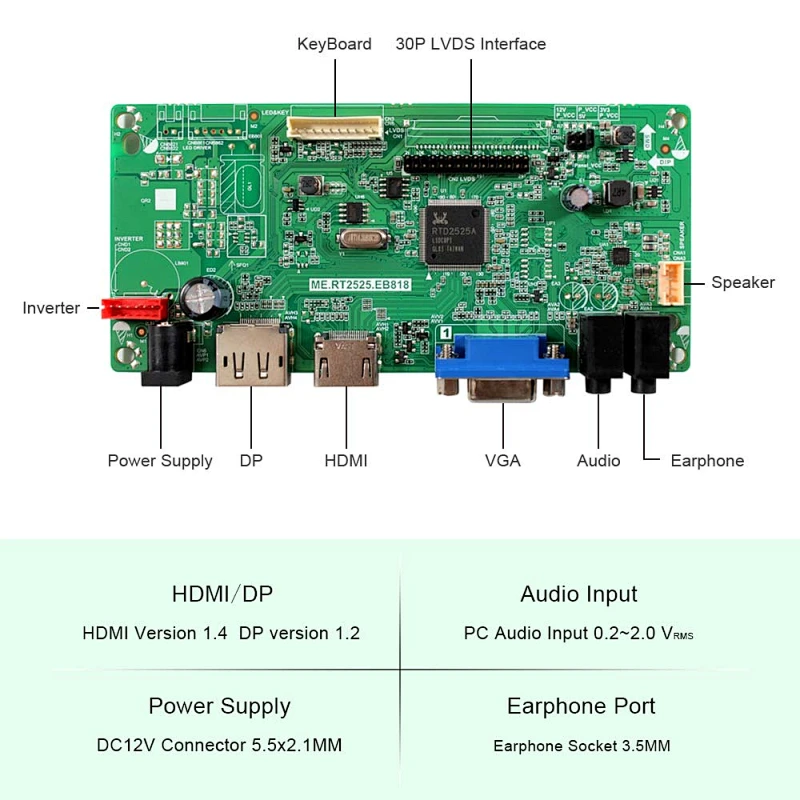

LCD Controller Board:
HDMI DP VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DP VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

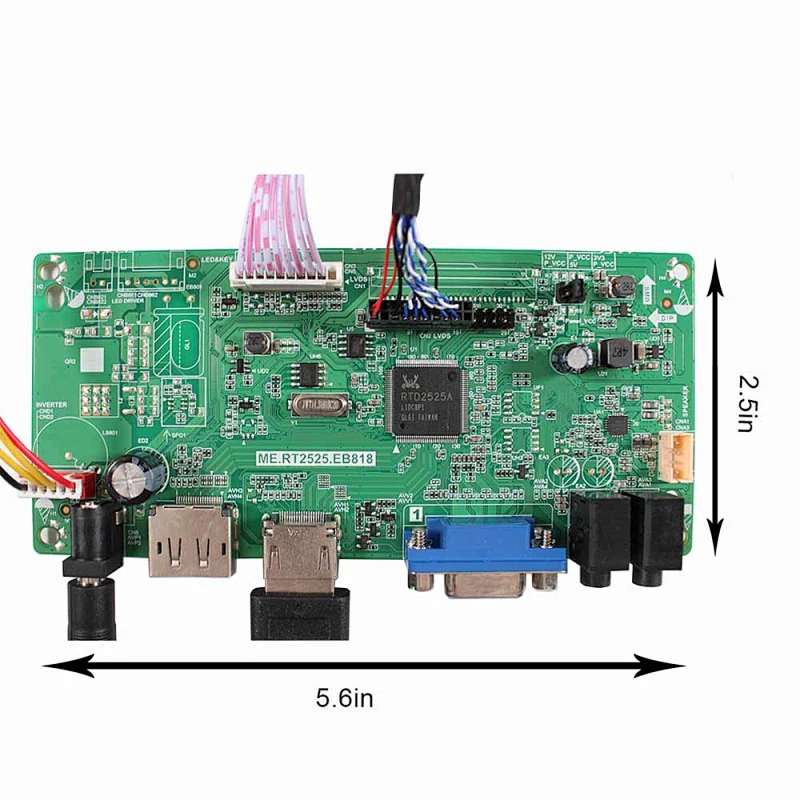

Board Size: 139mm x60mm x 17mm

10.4" VS104T-001A 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 236 ×174.3×4.9 (H×V×D)
Display Area 211.2 ×158.4 (H×V)
Brightness500 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

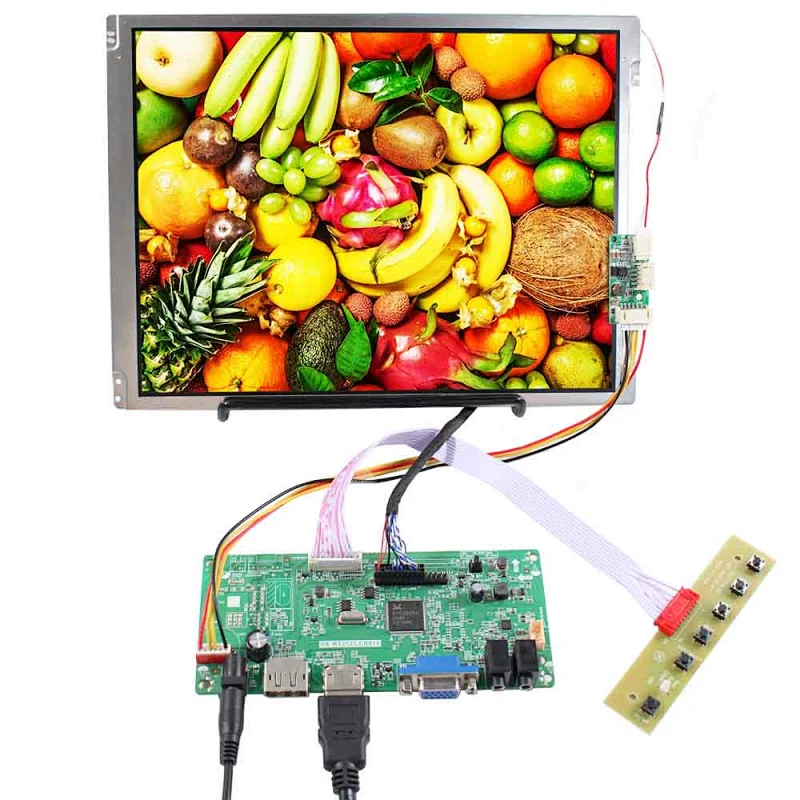

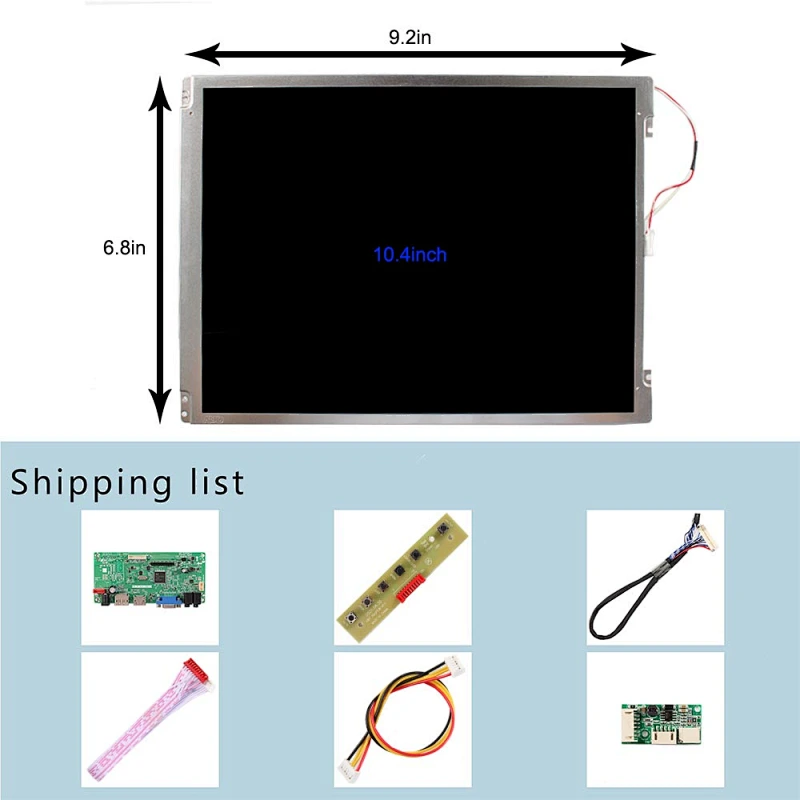

Packing list :
1× HDMI DP VGA LCD Controller Board RT2525.EB818
1×10.4inch VS104T-001A 800X600 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
