10.4inch VS104T-004 1024X768 TFT-LCD Screen with HD-MI VGA DVI LCD Controller Board 10.4inch VS104T-004 1024X768 10.4inch 1024x768 10.4

10.4inch VS104T-004 1024X768 TFT-LCD Screen with HD-MI VGA DVI LCD Controller Board 10.4inch VS104T-004 1024X768 10.4inch 1024x768 10.4" TFT LCD Screen

Model NO.: K002865 M.NT68676.3+VS104T-004A
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

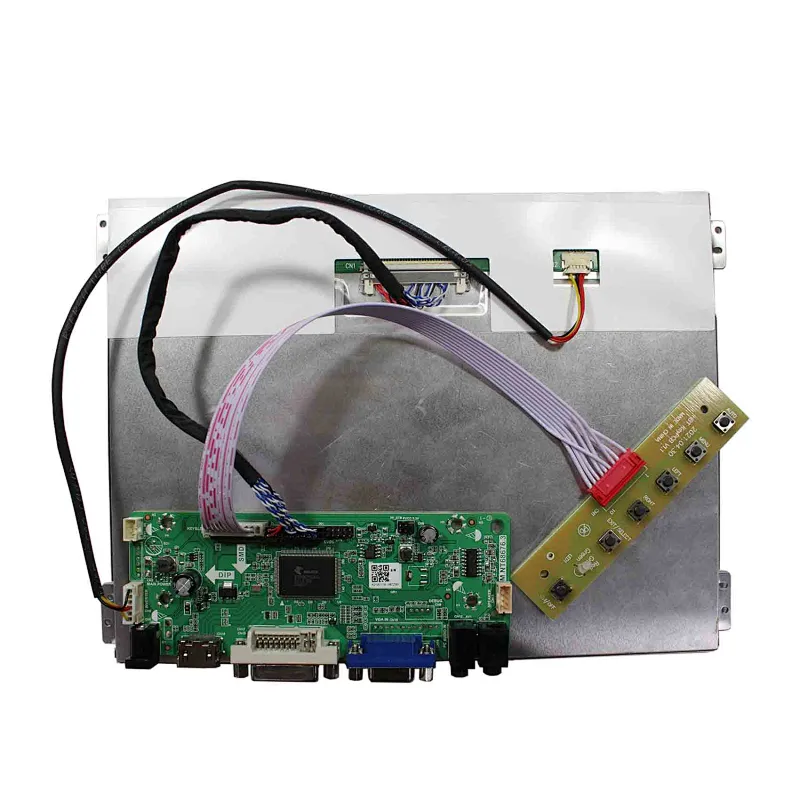

LCD Controller Board:
HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI DVI VGA
Audio Input: HD-MI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

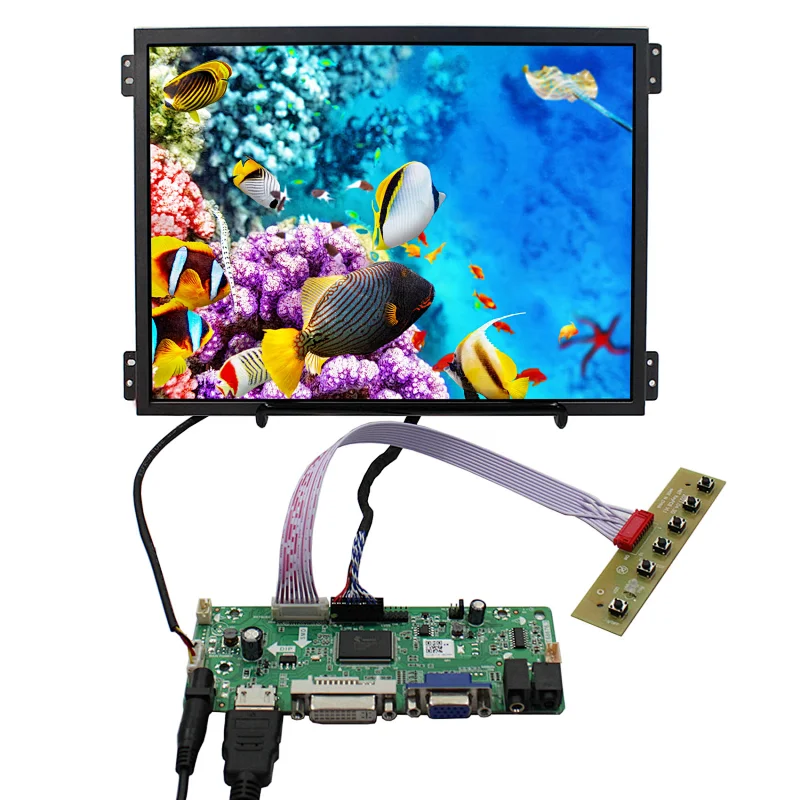

10.4"VS104T-004A 1024X768 LCD Screen:
Replacement screen for G104XVN01.0,G104X1-L03
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1024×768
Outline Size 227.00×175.80×7 (H×V×D)
Display Area 210.43 × 157.824 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

Packing list :
1× HD-MI VGA DVI LCD Controller Board M.NT68676
1×10.4inch VS104T-004 1024X768 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
