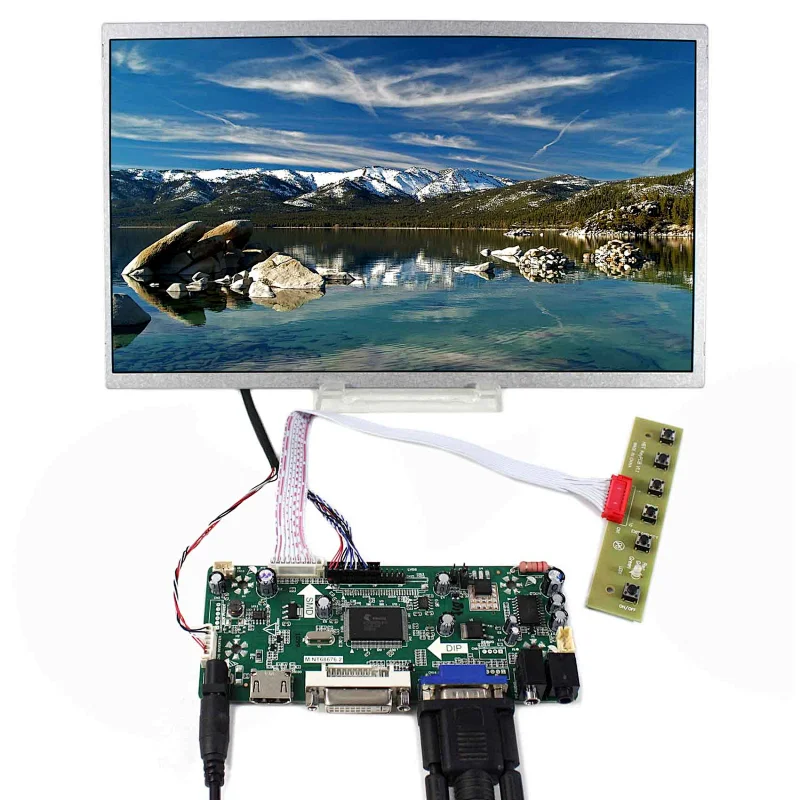

11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi
11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi

11.6inch 1366X768 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board dvi hdmi dvi vga lcd lcd controller board hdmi hdmi lcd controller board vga hdmi dvi

Model NO.
K000317-M.NT68676.2A+11.6 lcd
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

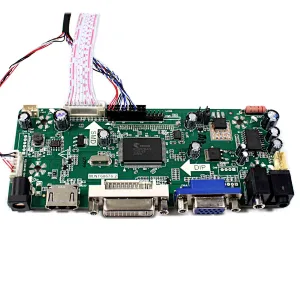

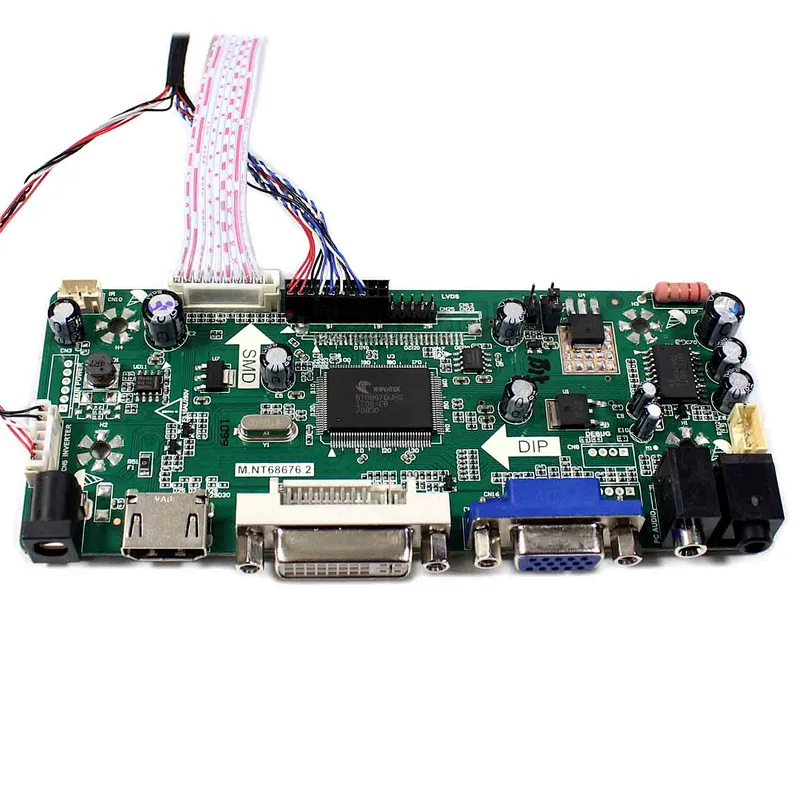

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

11.6"B116XW02/N116B6/LP116WH1 1366X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1366RGB)×768
Outline Size 268 × 161.5×5.2(H×V×D)
Display Area 256.125× 144 (H×V)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 40 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

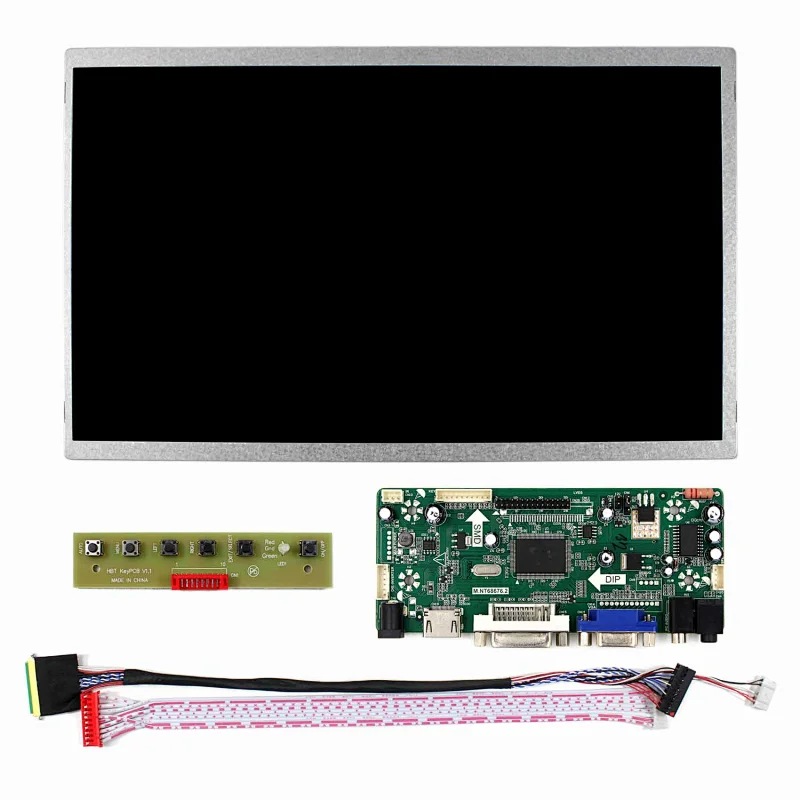

Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676
1×11.6inch 1366X768 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
