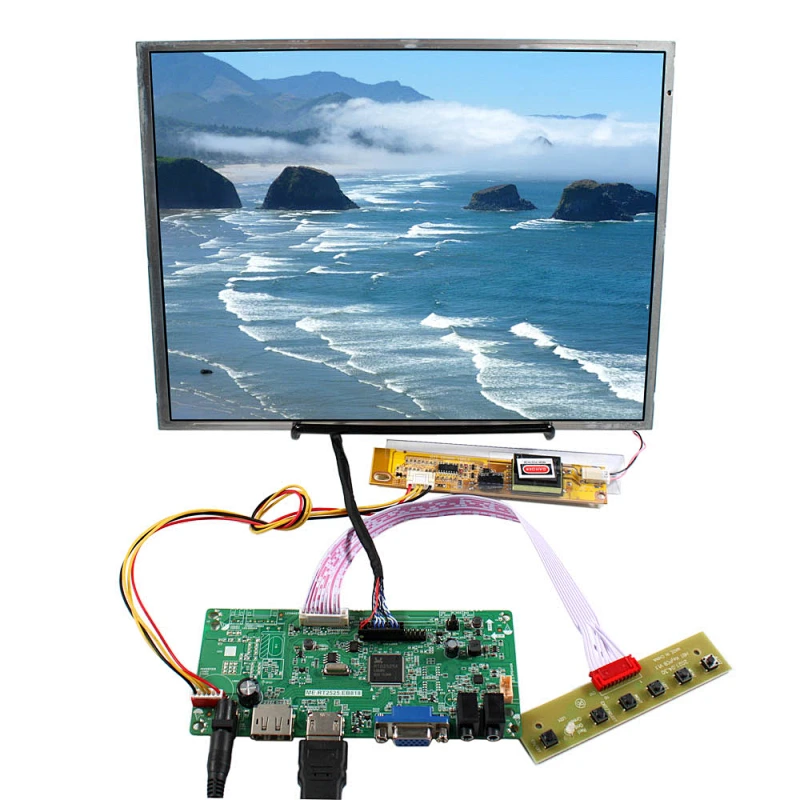

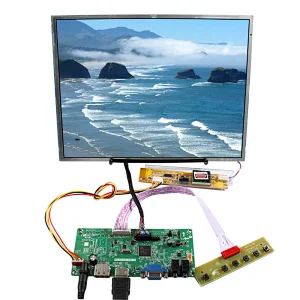

12.1inch 1024x768 TFT-LCD Screen With HDMI DP VGA LCD Controller Board 12.1inch 1024x768 12.1inch 1024x768 lcd vga lcd controller lcd controller board hdmi hdmi lcd controller board DP Controller board
12.1inch 1024x768 TFT-LCD Screen With HDMI DP VGA LCD Controller Board 12.1inch 1024x768 12.1inch 1024x768 lcd vga lcd controller lcd controller board hdmi hdmi lcd controller board DP Controller board
12.1inch 1024x768 TFT-LCD Screen With HDMI DP VGA LCD Controller Board 12.1inch 1024x768 12.1inch 1024x768 lcd vga lcd controller lcd controller board hdmi hdmi lcd controller board DP Controller board
12.1inch 1024x768 TFT-LCD Screen With HDMI DP VGA LCD Controller Board 12.1inch 1024x768 12.1inch 1024x768 lcd vga lcd controller lcd controller board hdmi hdmi lcd controller board DP Controller board
12.1inch 1024x768 TFT-LCD Screen With HDMI DP VGA LCD Controller Board 12.1inch 1024x768 12.1inch 1024x768 lcd vga lcd controller lcd controller board hdmi hdmi lcd controller board DP Controller board
12.1inch 1024x768 TFT-LCD Screen With HDMI DP VGA LCD Controller Board 12.1inch 1024x768 12.1inch 1024x768 lcd vga lcd controller lcd controller board hdmi hdmi lcd controller board DP Controller board
12.1inch 1024x768 TFT-LCD Screen With HDMI DP VGA LCD Controller Board 12.1inch 1024x768 12.1inch 1024x768 lcd vga lcd controller lcd controller board hdmi hdmi lcd controller board DP Controller board
12.1inch 1024x768 TFT-LCD Screen With HDMI DP VGA LCD Controller Board 12.1inch 1024x768 12.1inch 1024x768 lcd vga lcd controller lcd controller board hdmi hdmi lcd controller board DP Controller board
12.1inch 1024x768 TFT-LCD Screen With HDMI DP VGA LCD Controller Board 12.1inch 1024x768 12.1inch 1024x768 lcd vga lcd controller lcd controller board hdmi hdmi lcd controller board DP Controller board

12.1inch 1024x768 TFT-LCD Screen With HDMI DP VGA LCD Controller Board 12.1inch 1024x768 12.1inch 1024x768 lcd vga lcd controller lcd controller board hdmi hdmi lcd controller board DP Controller board

Model NO.
K002982-ME.RT2525.EB818+12.1inch 1024x768 N121X5 LTN121XT
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

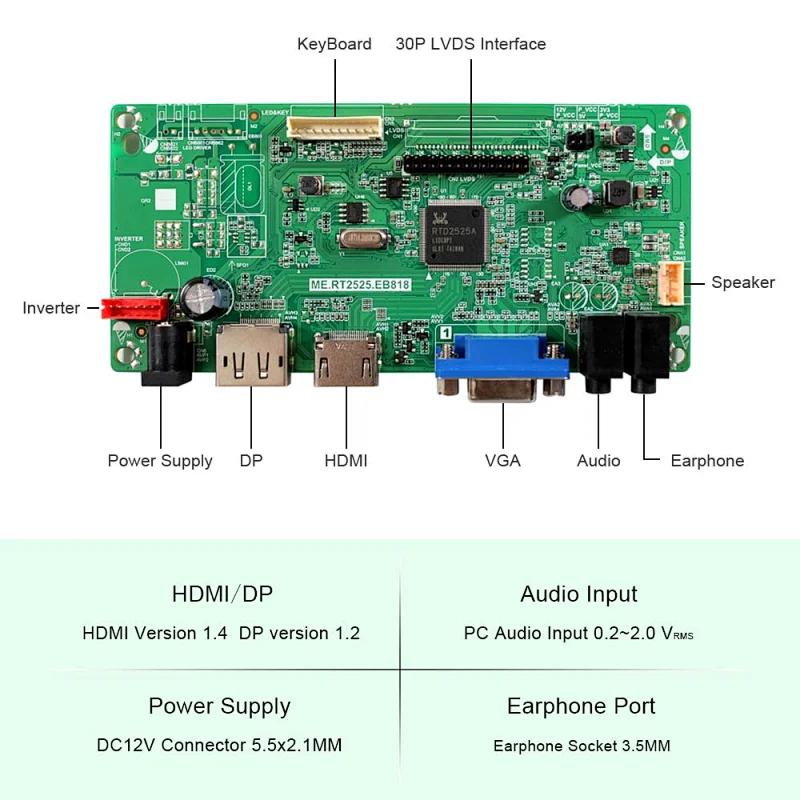

LCD Controller Board:
HDMI DP VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DP VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

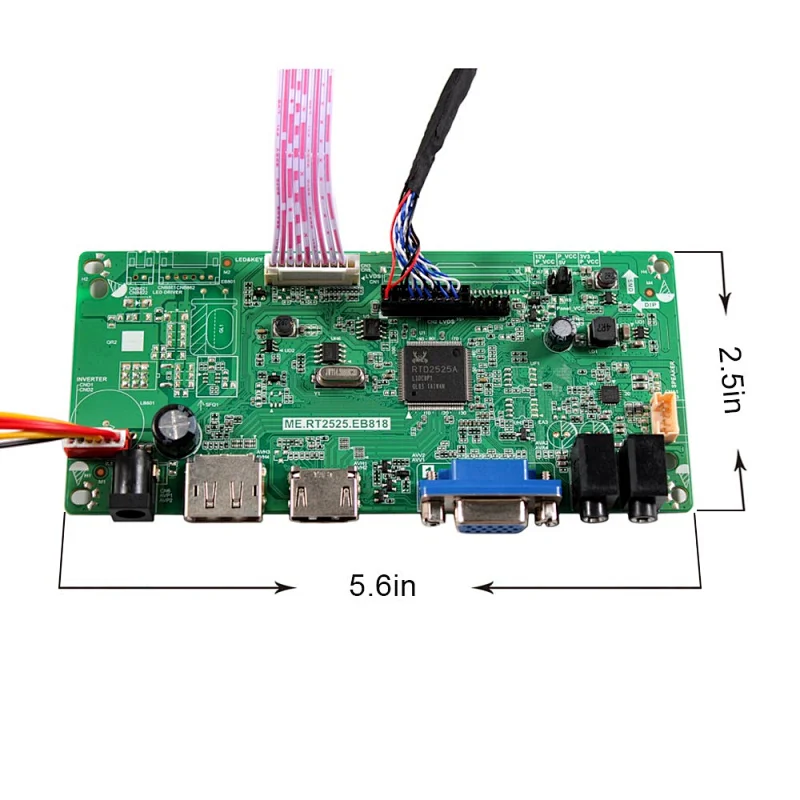

Board Size: 139mm x60mm x 17mm

12.1" 1024X768 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 261× 198×5 (H×V×D)
Display Area 246 ×184.5 (H×V)
Brightness200 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 45/45/15/45 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight1 CCFL
Input Voltage 3.3V (Typ.)

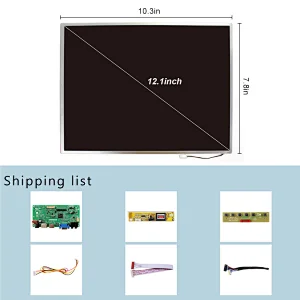

Packing list :
1× HDMI DP VGA LCD Controller Board RT2525.EB818
1×12.1inch 1024x768LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
