14inch 1600X900 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board 1600x900 screen 14inch screen and controller board

14inch 1600X900 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board 1600x900 screen 14inch screen and controller board

Model NO.: K000744-VS-V59AV-V1+14inch 1600x900
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

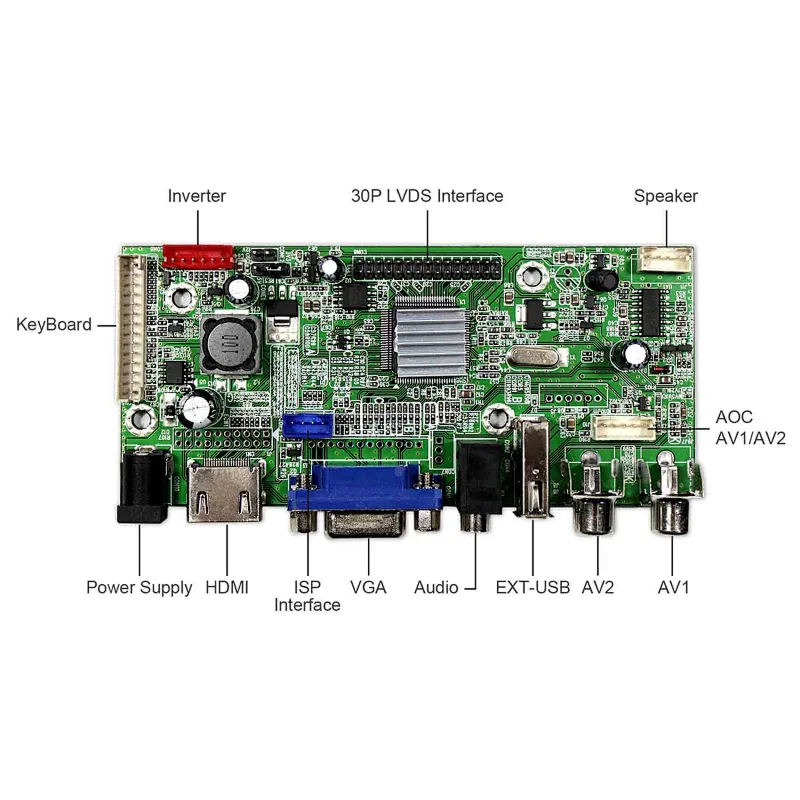

LCD Controller Board:
HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HDMI VGA AV USB RF
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 188mm x 43mm x 17mm

14"1600X900 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1600RGB)×900
Outline Size 320.4 × 205.1× 5.4(H×V×D)
Display Area 309.6×174.2 (H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 65/65/55/55 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

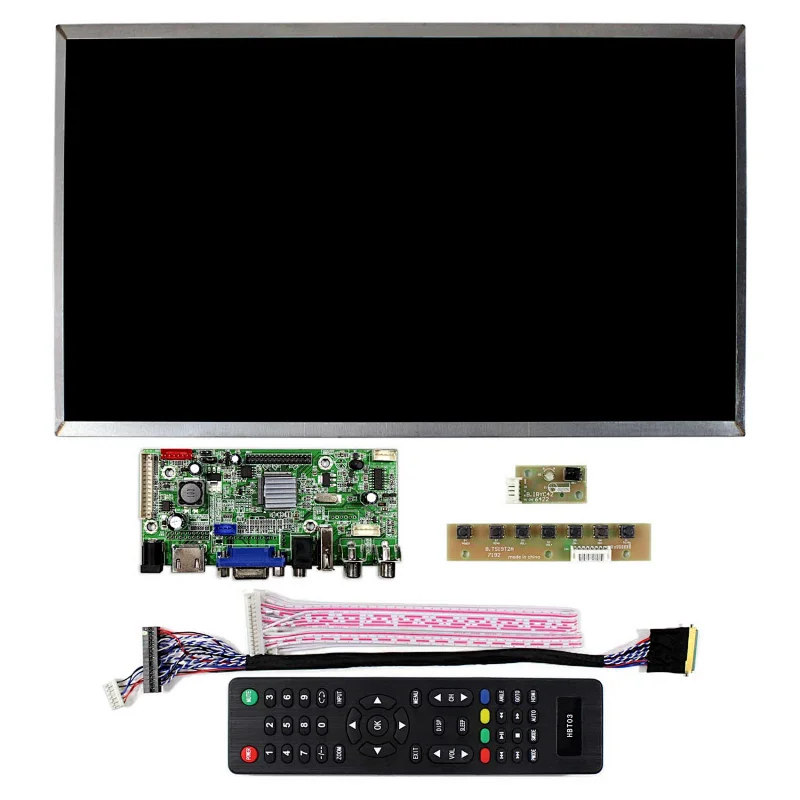

Packing list :
1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
1× 14inch 1600X900 LCD Screen (One of LTN140KT01 B140RW01 LP140WD1)
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
