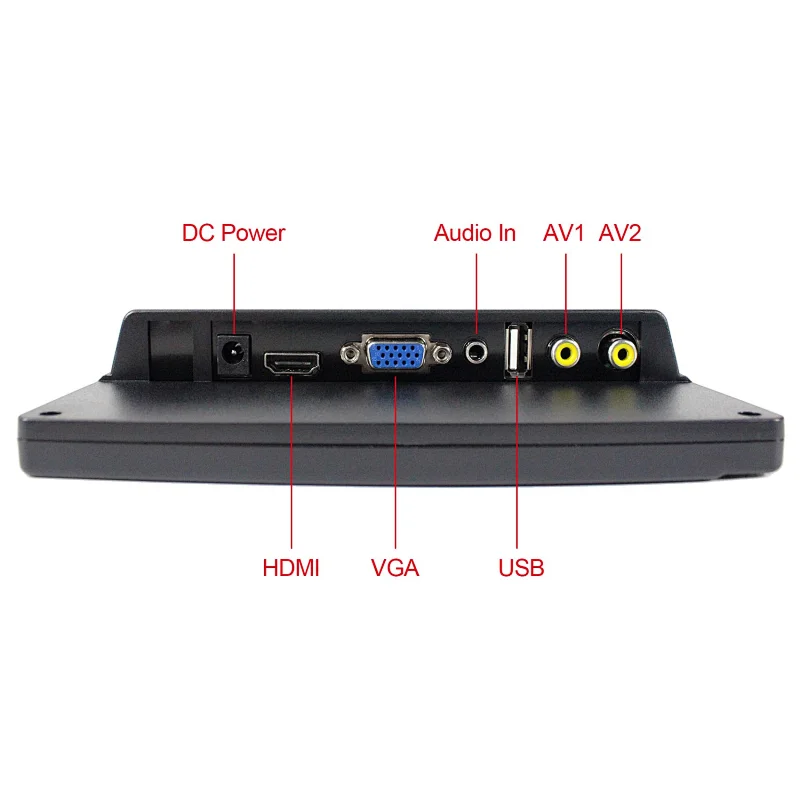

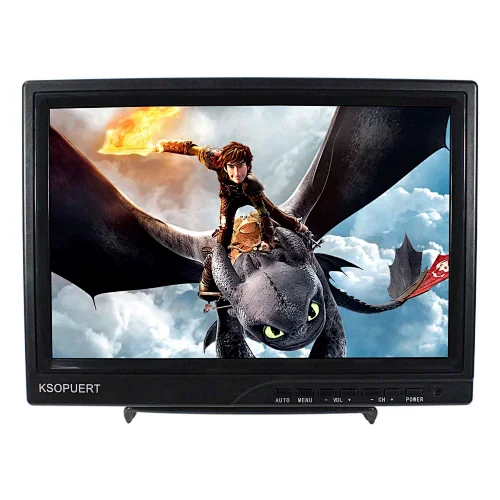

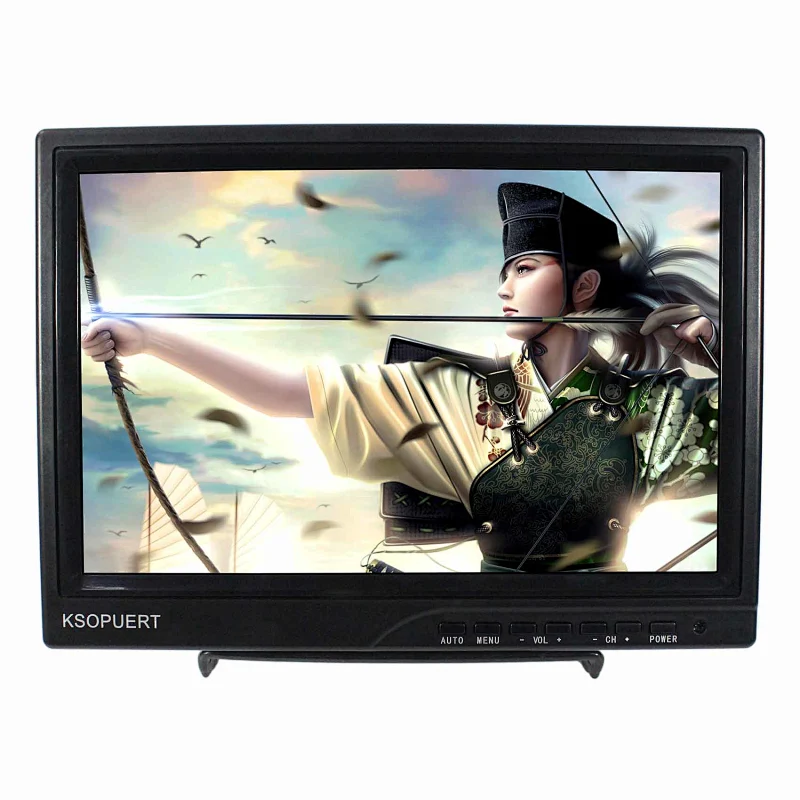

Bullet Points: Plastic Shell LCD Monitor HDMI VGA CVBS USB video input, Screen resolution: 1366(H) x768(V) pixels, screen contrast: 800:1, screen brightness: 400 cd/m². It can also be used as a monitor for PC monitor and indoor security use. Suitable for game playing, computer using and so on IPS LCD Screen, the video monitor screen with view full angle: H-85 degree, V-85 degree. Multi Menu Language: English, French, German, Chinese, Italian, Spanish, Portuguese ,Japanese, Korean Specifications:
English / French / German / Chinese Simplified / Italian / Spanish / Portuguese /Russian and so on
Operating Temperature :
0 ~ 45 degree
Power Supply :
- Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 1A -Standby Model：≤0.3W（Only Board）
Material :
ABS

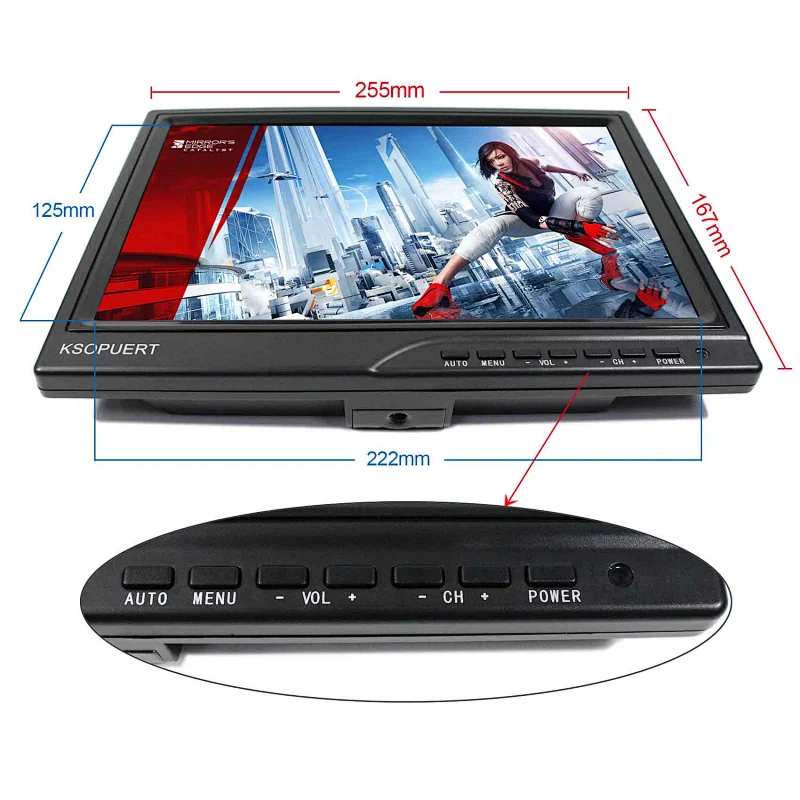

Dimensions :
- approx. 255 (H) x 167 (W) x 43 (D) mm - approx. 10"(H) x 6.6"(W) x 1.7"(D) inch
N.W:
- approx.700g - approx.1.5lb
USB MULTIMEDIA PLAYBACK FORMAT
Media
File Ext
Codec
Remark
Video
Audio
Movie
.avi
MJPEG
MP3,WMA,ACC, MP2,PCM.AC3
Max Resolution And Frame Rate 640x480@30fps Max Date Rate:10Mbps
.mp4
Xvid,MPEG-2,MPRG-4,DivX,H.264
Max Resolution And Frame Rate 1920x1080@30fps Max Date Rate:20Mbps
.ts/trp
MPEG-2,H.264
.mkv/.mov
MPEG-4,H.264
.mpg
MPEG-1, MPEG-2
.dat
MPEG-1
MP2
Max Resolution:352x288 Max Date Rate:20Mbps
.vob
MPEG-2
Max Resolution:720x576 Max Date Rate:20Mbps
.rm/.rmvb
RV8,RV9.RV10
COOK
Max Resolution And Frame Rate 1280x720@30fps Max Date Rate:10Mbps
Music
.mp3
--
MP3
Sample Rate:32K-48KHz Bit Rate:32K-320Kbps Channel:Mono/Stereo
.wma
--
WMA
Sample Rate:8K-48KHz Bit Rate:128K-320Kbps Channel:Mono/Stereo
.m4a/.aac
--
AAC
Sample Rate:8K-48KHz Bit Rate:128K-442Kbps Channel:Mono/Stereo
.jpg/.jpeg
Progressive JPEG
Max Resolution:1024x768
Baseline JPEG
Max Resolution:15360x8640
.bmp
--
Max Resolution:9600x6400
.png
Non-Interlaced
Max Resolution:9600x6400
Interlaced
Max Resolution:1200x800
Tex
.tet
ANSI/UNICODE GB/UTF8
File Size:Max 1MB
File System: Hi Speed FS,FAT32,FAT16,NTFS(NTFS compressed file is not supported)
Note: 1.Licenses involved in specifications above are supposed to be obtained by customers themselves Eg:AC3 and DivX. 2.MP4 can’t support GMC

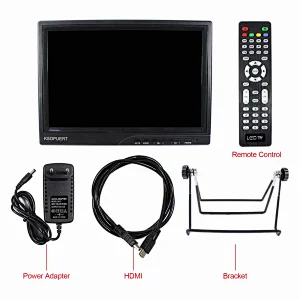

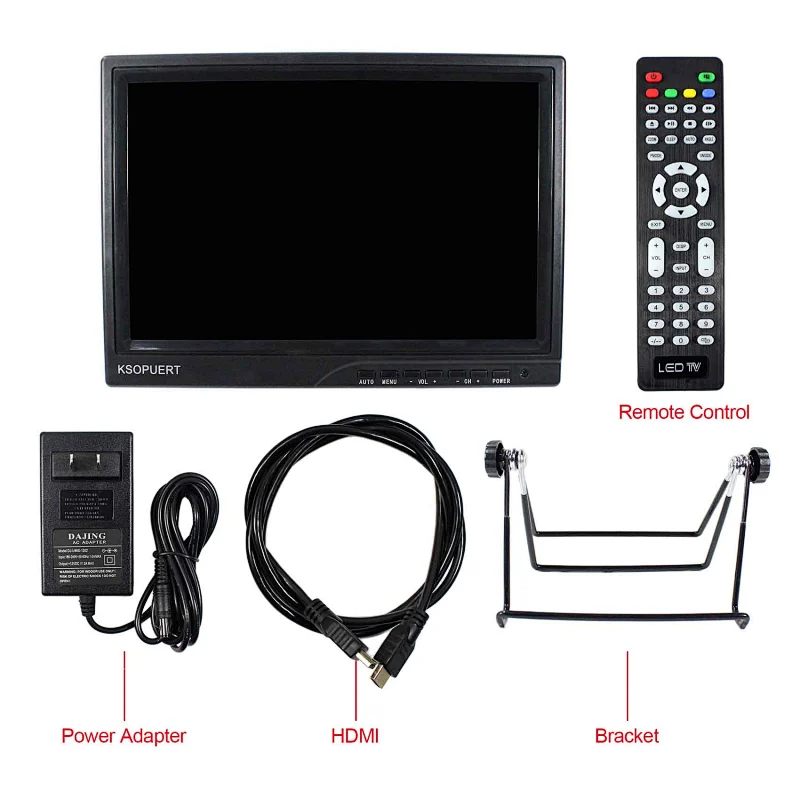

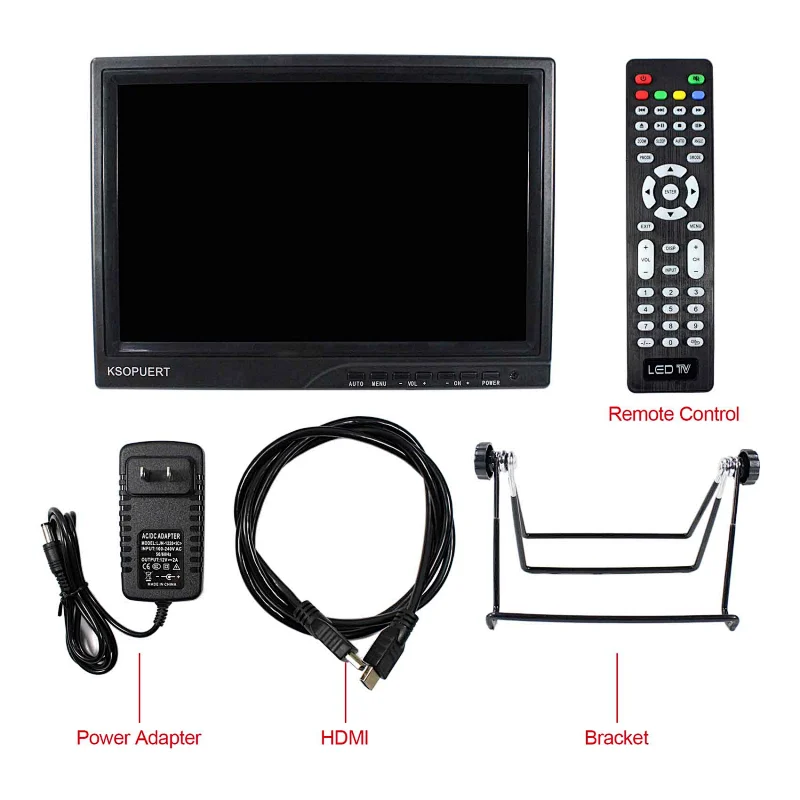

Packing list :

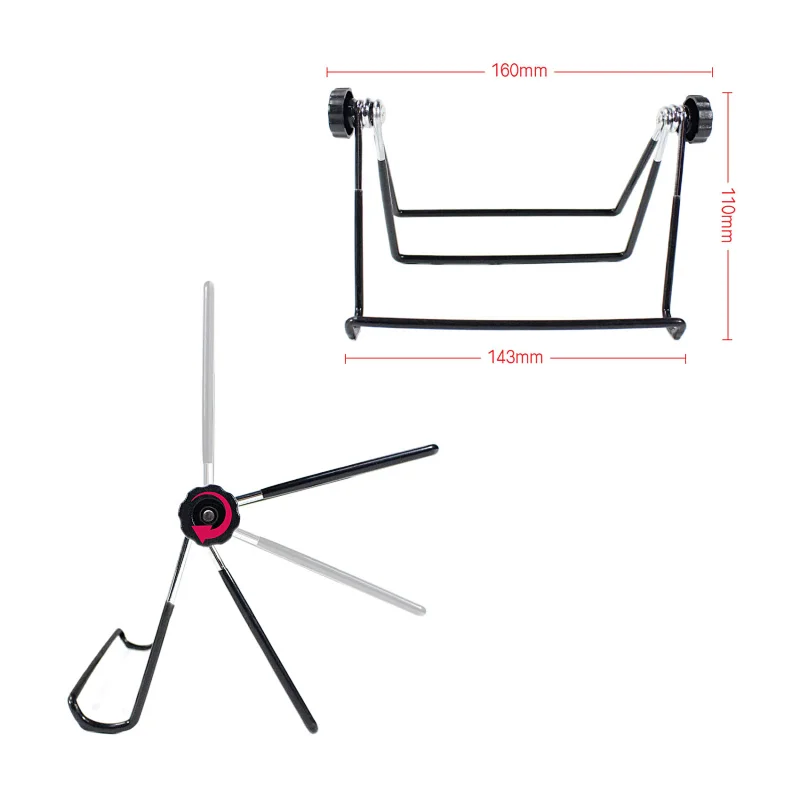

1× 10.1inch 1366x768 IPS LCD Monitor VS101LM1PB2 1× Bracket 1× HDMI Cable 1× User Manual 1× Remote Control (Battery Not included) 1× 12V 1A adapter power supply (One of above picture. We will send according to your country)
