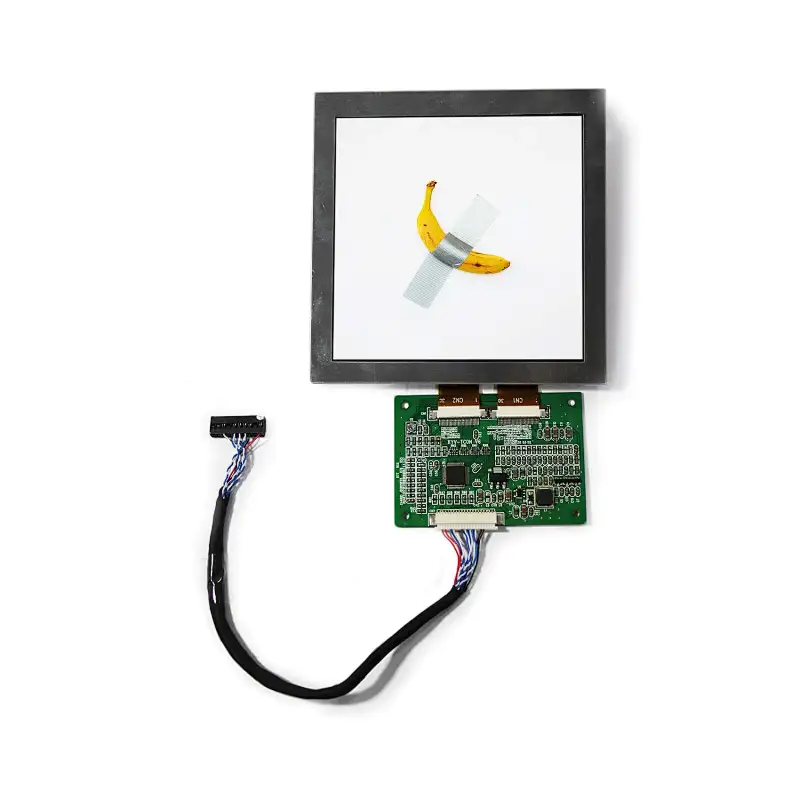

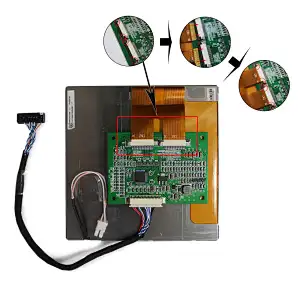

5.0" PD050OX5 480×480 LCD Screen with Tcon Board tcon board tcon lcd tcon touch screen lcd board lcd screen board 5" tft lcd screen PD050OX5

Model NO.
K002610 PD050OX5 + TCON V6
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

5.0"PD050OX5 480×480  LCD Screen:

Resolution 480(RGB)×480   135PPI

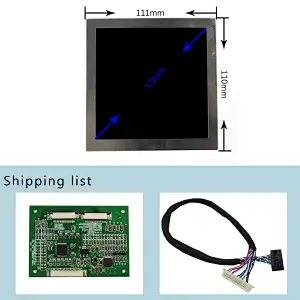

Outline Size 111.5 × 110 × 7.5 mm (H×V×D)

Display Area 90 × 90 mm (H×V)

Brightness 900 (Typ.)

Contrast Ratio 400 : 1 (Typ.) (TM)

Viewing Angle 60/60/40/55 (Typ.)(CR≥10)

Signal Interface TTL (1 ch, 6-bit) , FPC , 60 pins

Backlight 1 pcs CCFL , 40K hours , No Driver

Input Voltage  3.3/3.3/9.7/17.0V (Typ.)(VDD1/VCC/VDD2/VGG)

Packing list :

1×5.0" PD050OX5 480×480  LCD Screen

1× Inverter Board
