13.3" 30pin EDP LCD Screen LQ133D1JW33 with HDMI Board 13.3inch LQ133D1JW33 IPS LCD Screen HDMI Control Board 3840×2160 lcd screen edp lcd screen 30pin lcd adapter hdmi lcd board lcd controller board hdmi

Model NO.
K002174 VS-RT2795T4K-V1+LQ133D1JW33
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

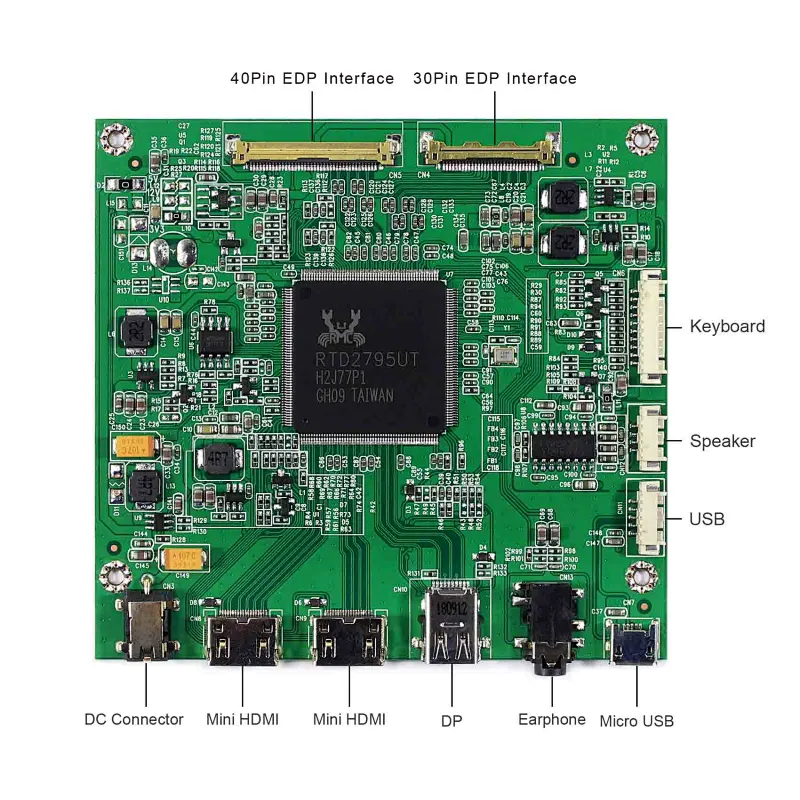

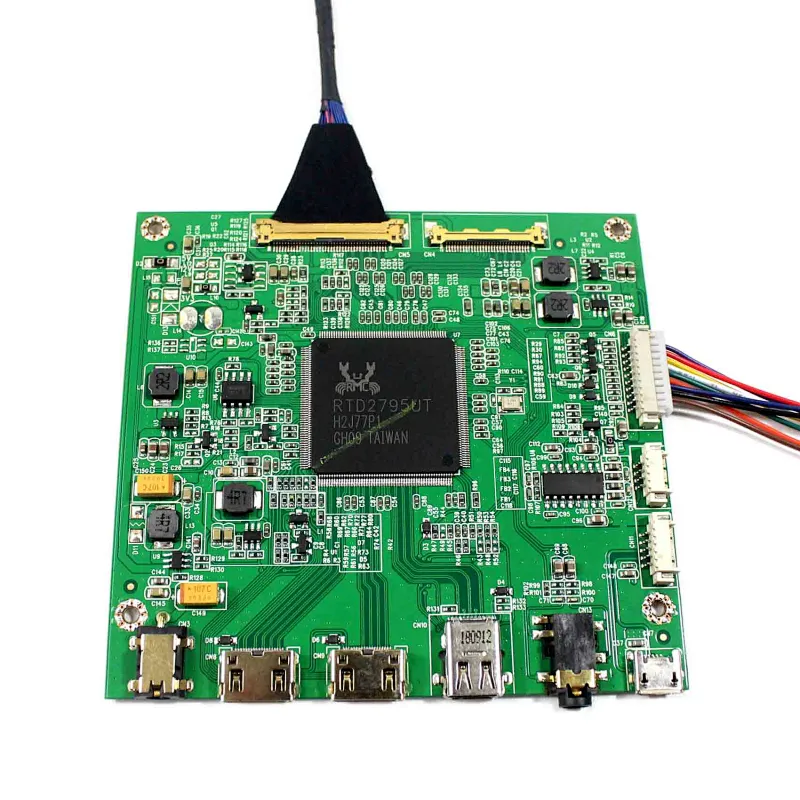

  • LCD Controller Board:

    HDMI Board Work for 30Pin EDP LCD Screen

    Input Power Adapter: 12Vdc More than 2A.

    Come In Standby Model When Not Input Signal

    Standby Model <0.3W

    Video Input: 2HDMI Mini DP Support HDMI 2.0

    Audio Output: Earphone

    OSD: Brightness Contrast VOL+ VOL- Language And So On

    Language: English French German Spanish Italian And So On

    Board Size: 89mm x 84mm x 5mm

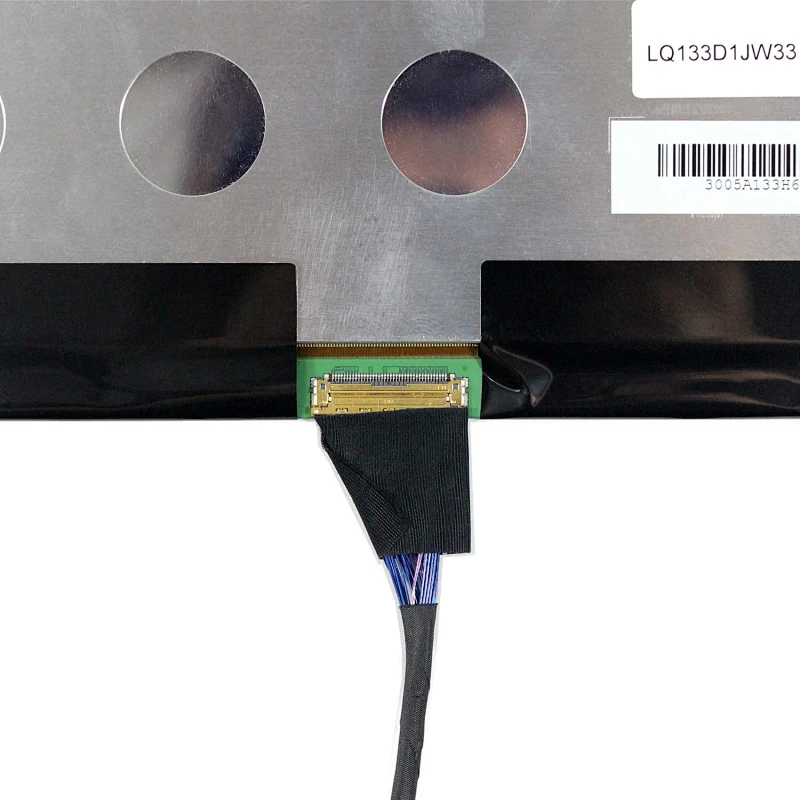

  • 13.3"LCD Screen LQ133D1JW33:

    Display Mode  AAS, Normally Black, Transmissive

    Resolution  3840 (RGB)×2160 (UHD)

    Outline Size 297.66(W)×185.74 (H) ×3.41(D) mm

    Display Area 293.76(W)×165.24(H) mm

    Brightness 400 cd/m² (Typ.)

    Contrast Ratio 1500:1 (Typ.) (TM)

    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

    Signal Interface eDP (4 Lanes) , Connector ,40 pins

    Backlight WLED

    Input Voltage  3.3V (Typ.)

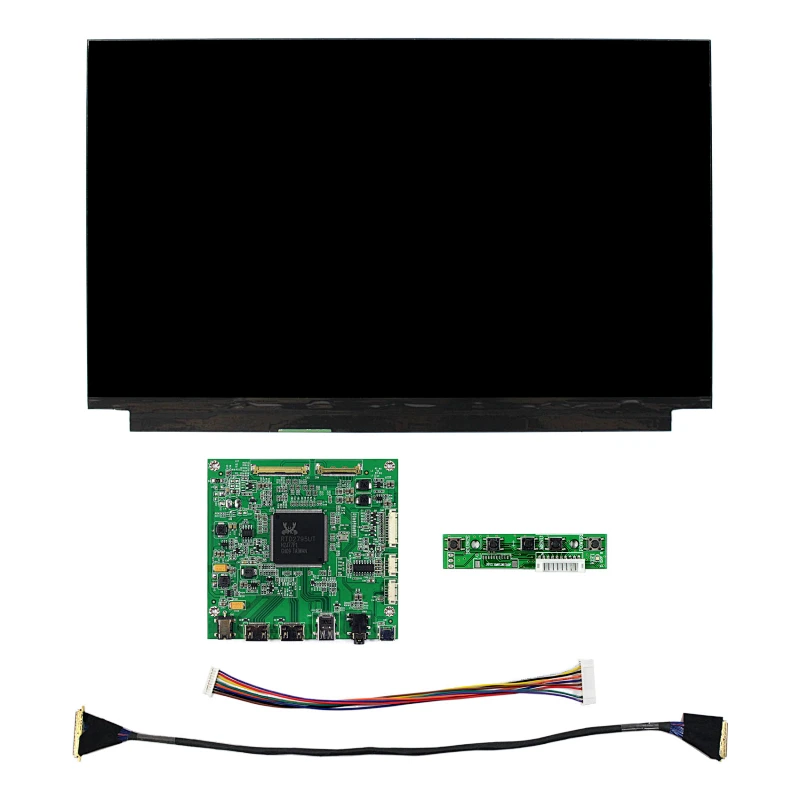

  • Packing list:

    1× Mini HDMI Type C LCD Controller VS-RT2795T4K-V1

    1× 13.3inch LQ133D1JW33 3840X2160 IPS LCD Screen

    1× Signal Cable

    1× Keyboard With Cable
