VGA AV LCD Driver Board With 6.2" HSD062IDW1 800x480 LCD Screen

Model NO.
K000867- KYV-N2 V1+HSD062IDW1
Minimum order quantity:
1
Quantity:

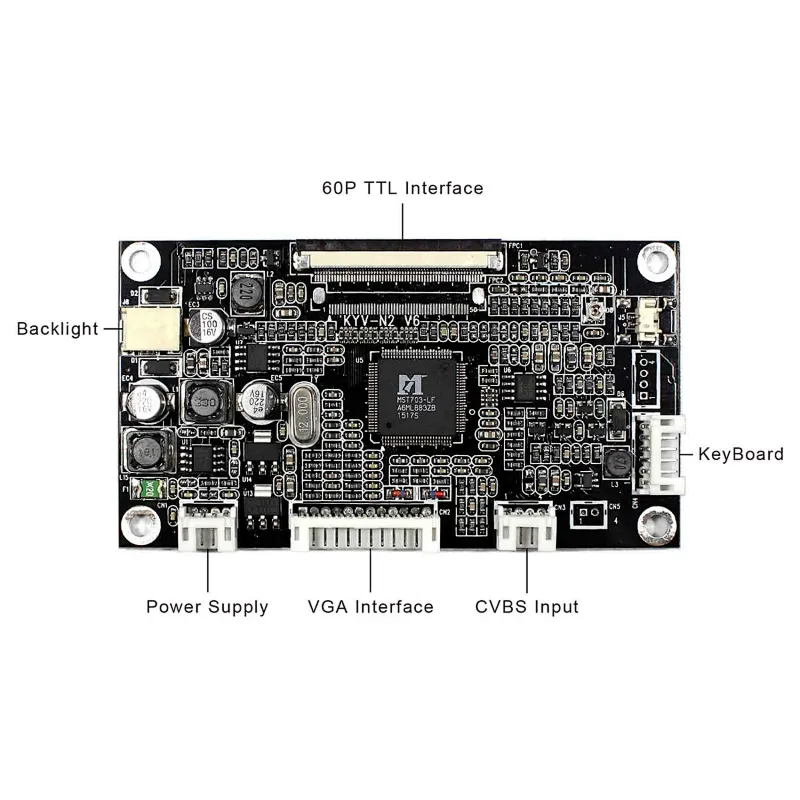

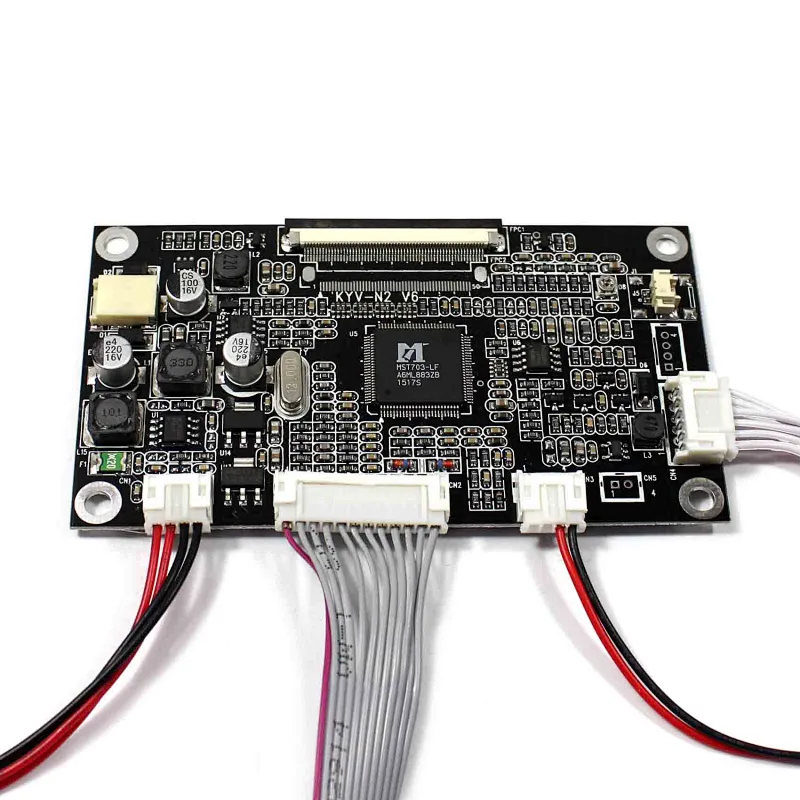

LCD Controller Board:
VGA AV LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Video Input: VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:100mm x 55mm x 10mm
6.2"HSD062IDW1 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800（RGB)×480
Outline Size 155.2x88.2x5.3 (H×V×D)
Display Area 137.5 ×77.2 (H×V)
Brightness400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 75/75/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6/8-bit) + SPI , FPC , 60 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

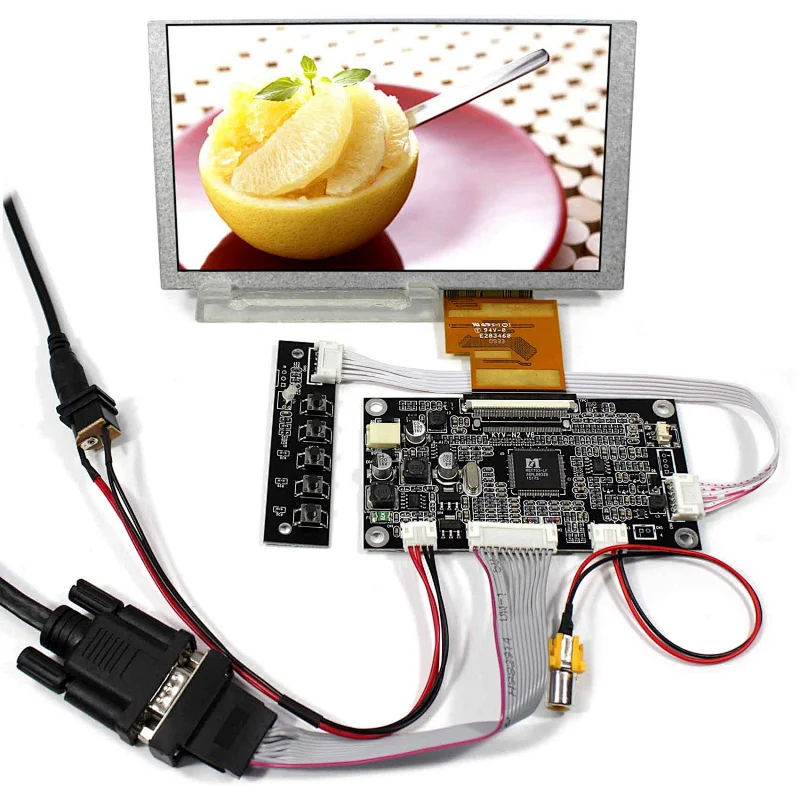

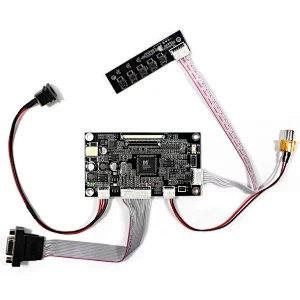

Packing list :
1× VGA+AVLCD Controller Board KYV-N2 V6
1×6.2inch HSD062IDW1 800X480 LCD Screen
1× Power Supply Cable
1× VGA Cable
1× AV Cable
1× Keyboard With Cable
