Model NO.
K000503 T.V56.03+1680x1050 lcd panel
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • LCD Controller Board:
    HD-MI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    HDMI Port Support Transform Audio Compatible With HD-MI 1.3/1.4HDCP 1.2
    USB Support Video
    AV Compatible With PAL And NTSC

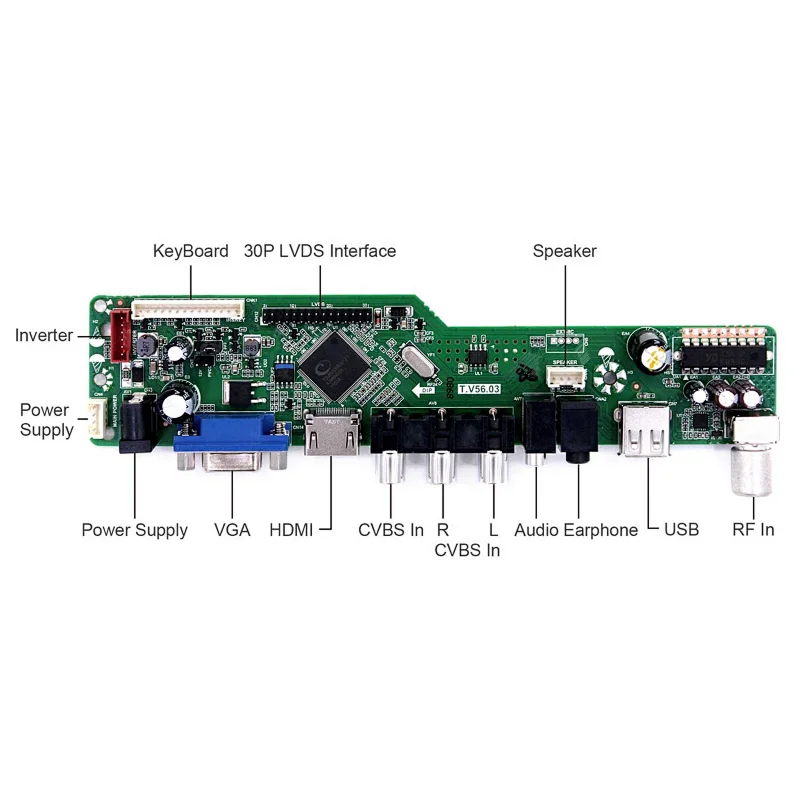

    Video Input: HD-MI VGA AV USB RF
    Audio Input: HD-MI PC-Audio
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:188mm x 43mm x 17mm
  • Compatible Work With:
    15.4inch 1680x1050:
    LTN154P1-L01 LTN154P1-L02 LTN154P1-L03 LTN154P2-L04 LTN154P2-L05
    N154Z1-L02 B154SW01 LTN154MT02 LP154WE2 QD15AL02 LP154W02
    17inch 1680x1050:
    LTN170WP-L01 LTN170WP-L02 LTN170WP-L03 LTN170P2-L01 LP171W02 A4 LP171WE3
  • Packing list :

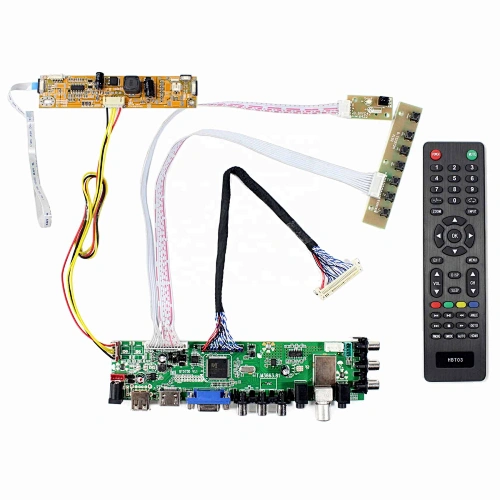

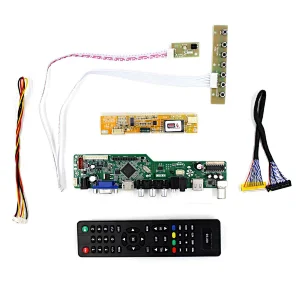

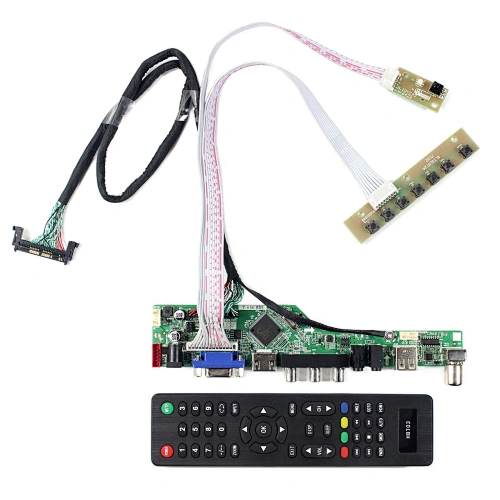

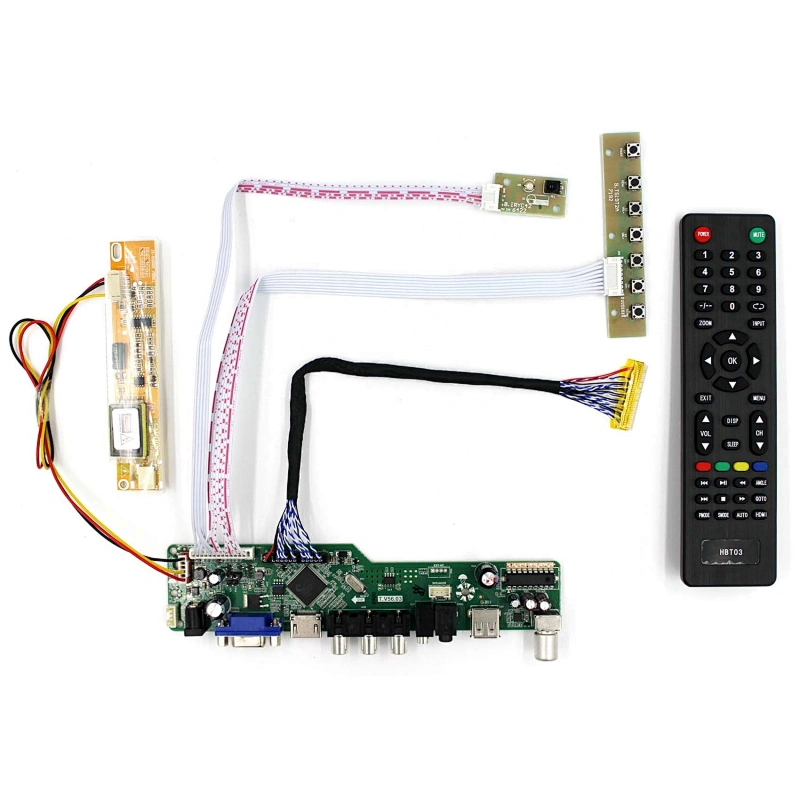

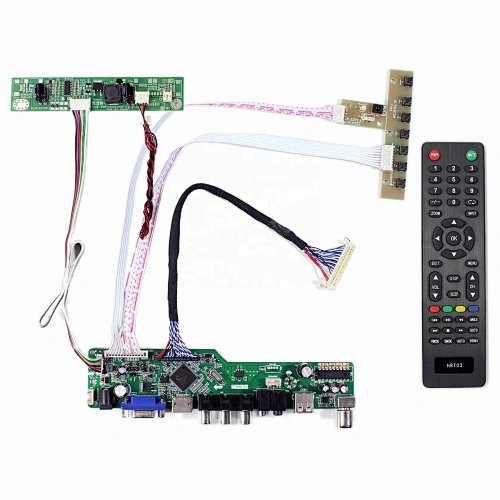

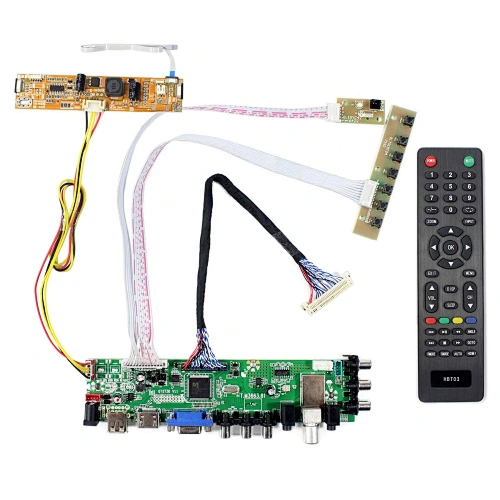

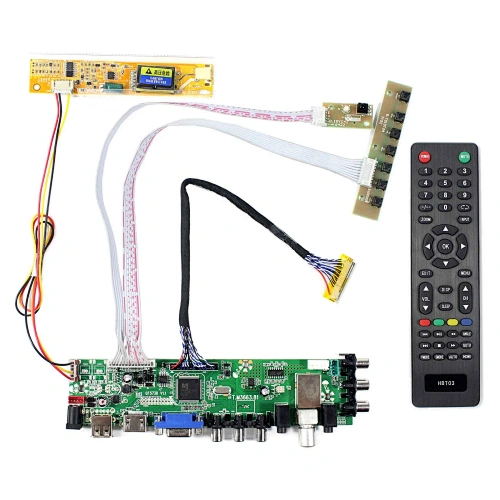

    1× HD-MI VGA AV USB RF LCD Controller Board T.V56.03
    1× 1 CCFL Inverter Board
    1× 30Pin Signal Cable
    1× Keyboard With Cable
