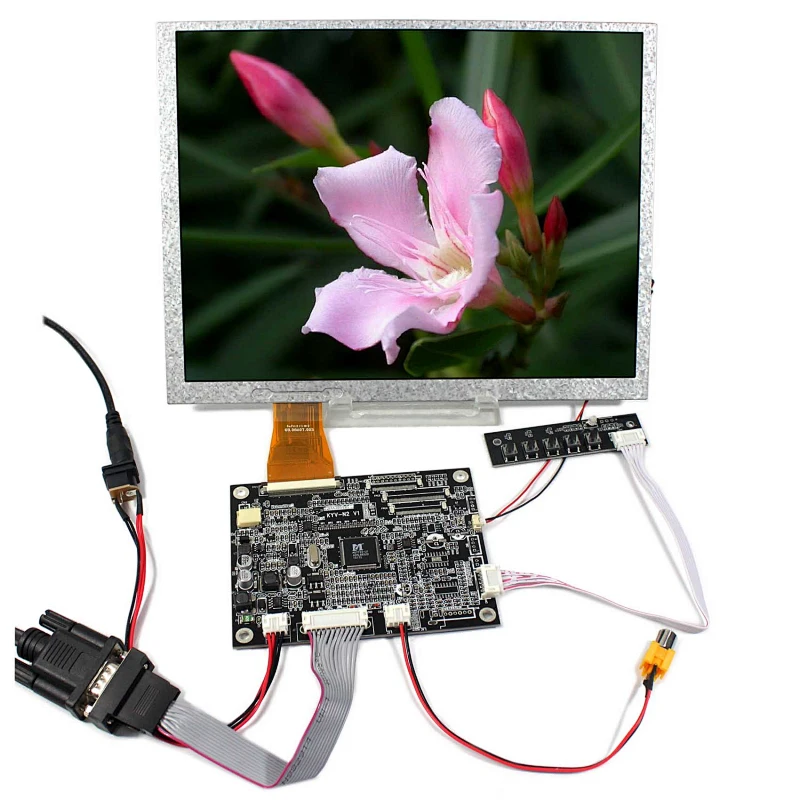

VGA AV LCD Controller Board with 10.4" A104SN03 V1 800x600 TTL LCD Screen

Model NO.
K000133 KYV-N2 V1+ A104SN03
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

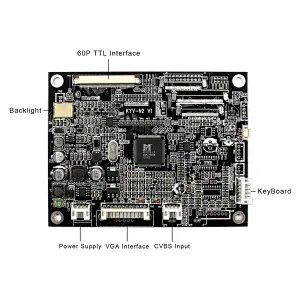

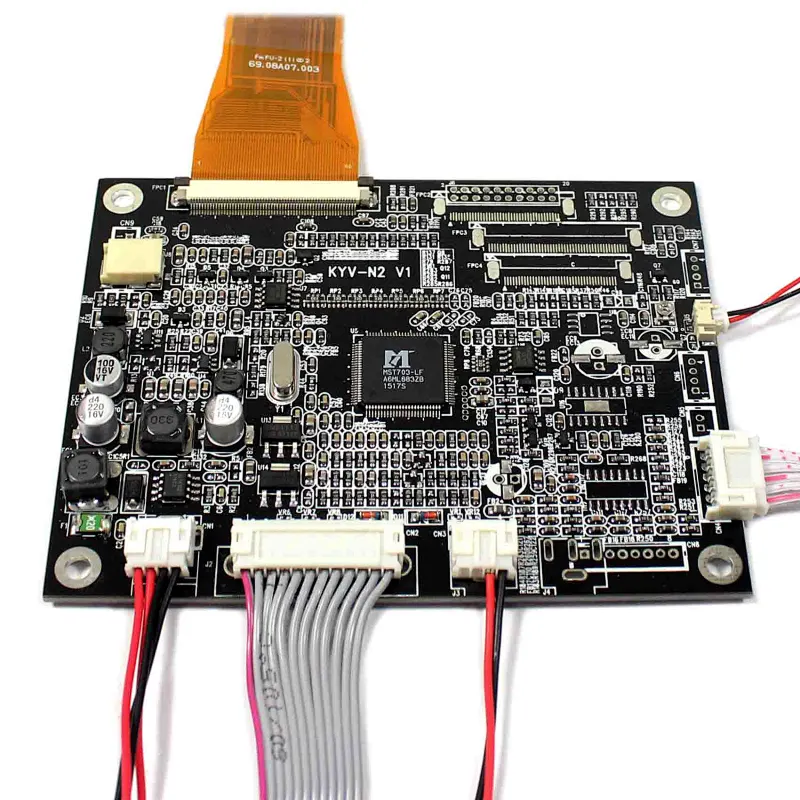

  • LCD Controller Board:
    VGA AV LCD Board Work for 60Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:110mm x 85mm x 10mm
  • 10.4"A104SN03 V1 800X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800（RGB)×600
    Outline Size 228.4 × 175.4×6.5 (H×V×D)
    Display Area 211.2 × 158.4 (H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 75/75/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface TTL (1 ch, 6/8-bit) + SPI , FPC , 60 pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

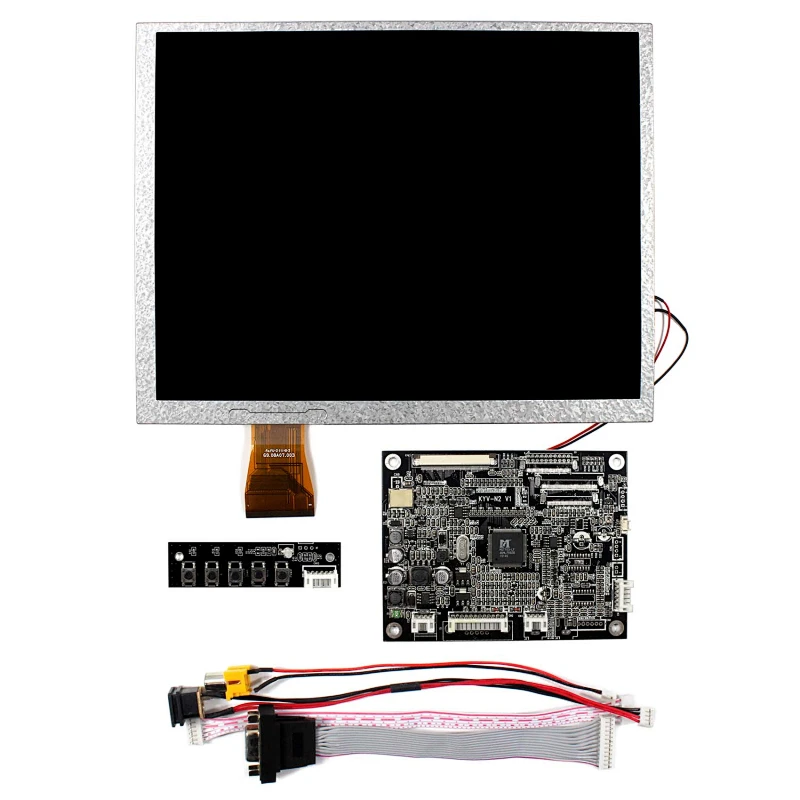

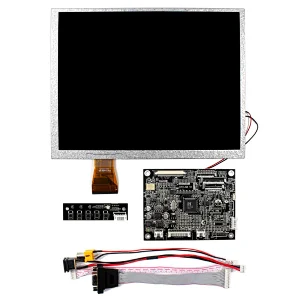

  • Packing list :
    1× VGA+AV LCD Controller Board KYV-N2 V1
    1× 10.4inch A104SN03 V1 800X600 LCD Screen
    1× Power Supply Cable
    1× VGA Cable
    1× AV Cable
    1× Keyboard With Cable
