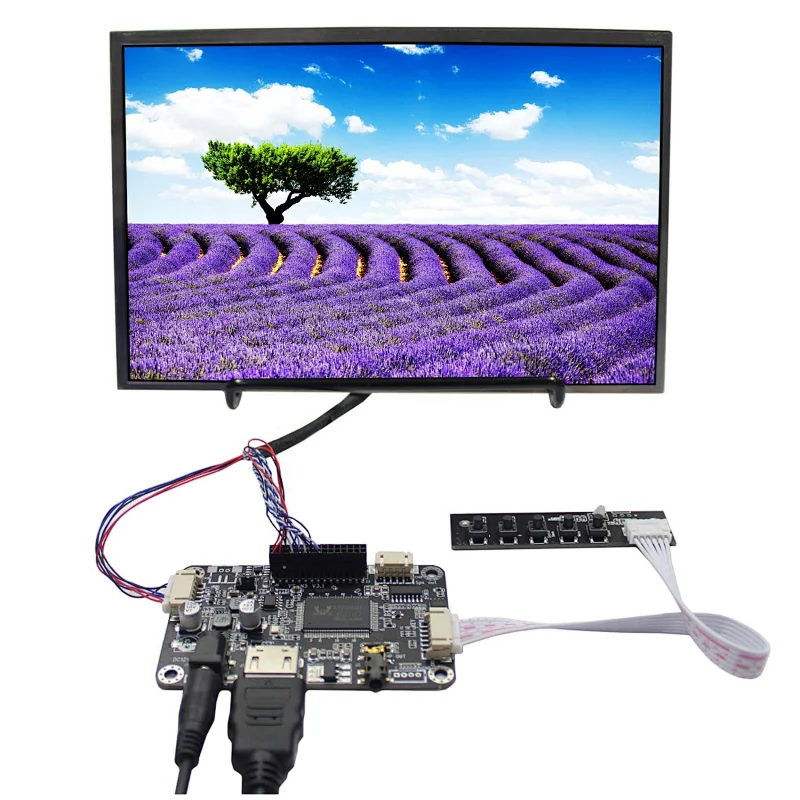

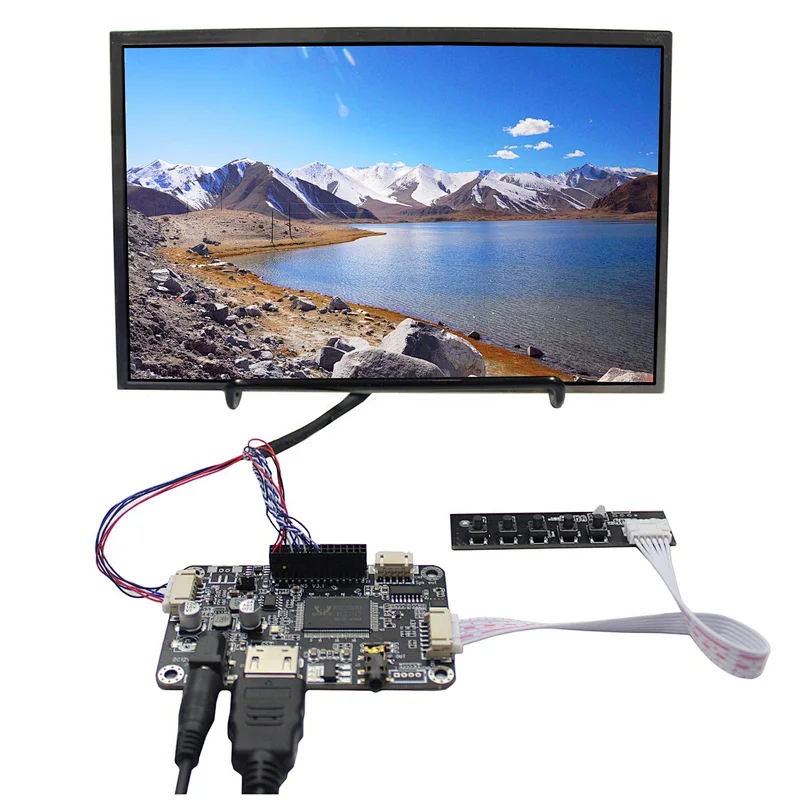

10.1" IPS B101EW05 1280X800 LCD Screen with HD-MI LCD Controller Board

Model NO.
K002766 VS-N5V3.1H+B101EW05
Quantity:
  • Type:IPS
  • OSD:Brightness Contrast Auto Language And So On
  • lcd panel:10.1inch
  • Resolution:1280*800
  • Product Name:B101EW05
  • Backlight:WLED
  • Interface:LVDS
  • Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
  • Place of Origin:CN;GUA
  • Type:IPS Screen
  • Display Size:10.1inch
  • Model Number:K002766 VS-N5V3.1H+B101EW05
  • Brand Name:VS
Product Description

10.1"B101EW05 1280X800 LCD Screen:

Display Mode N, ADS, Normally Black, Transmissive
Resolution 1280RGB)×800
Outline Size 229.46 × 149.1× 5.2 (H×V×D)
Display Area 216.96 × 135.6 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

LCD Controller Board:

HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

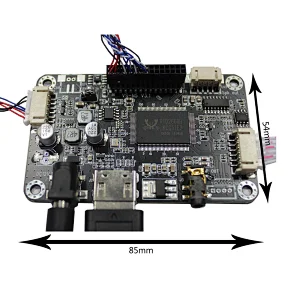

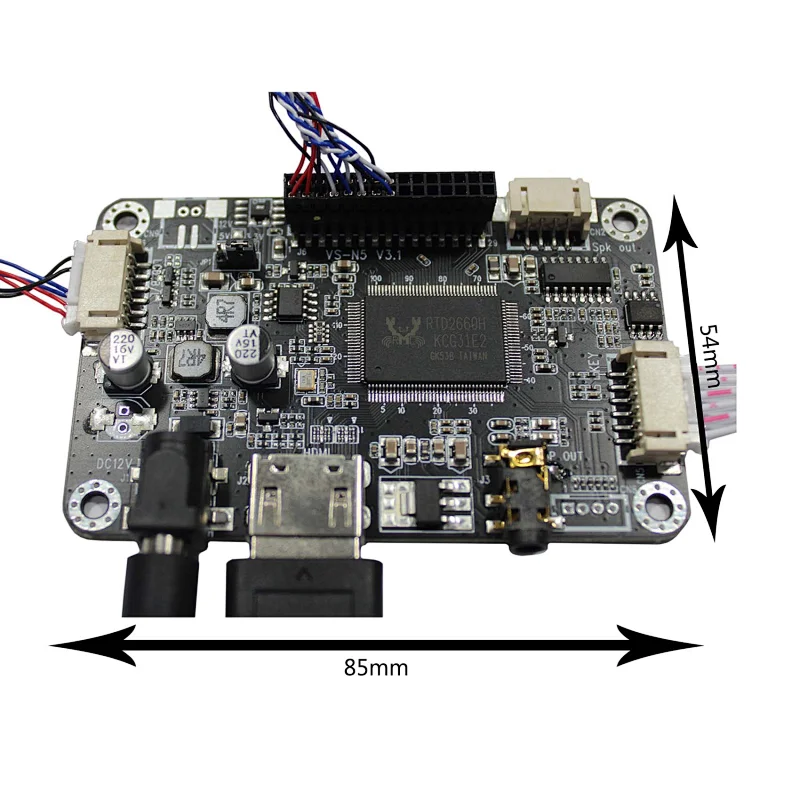

Board Size: 85mm x 54mm x 14mm

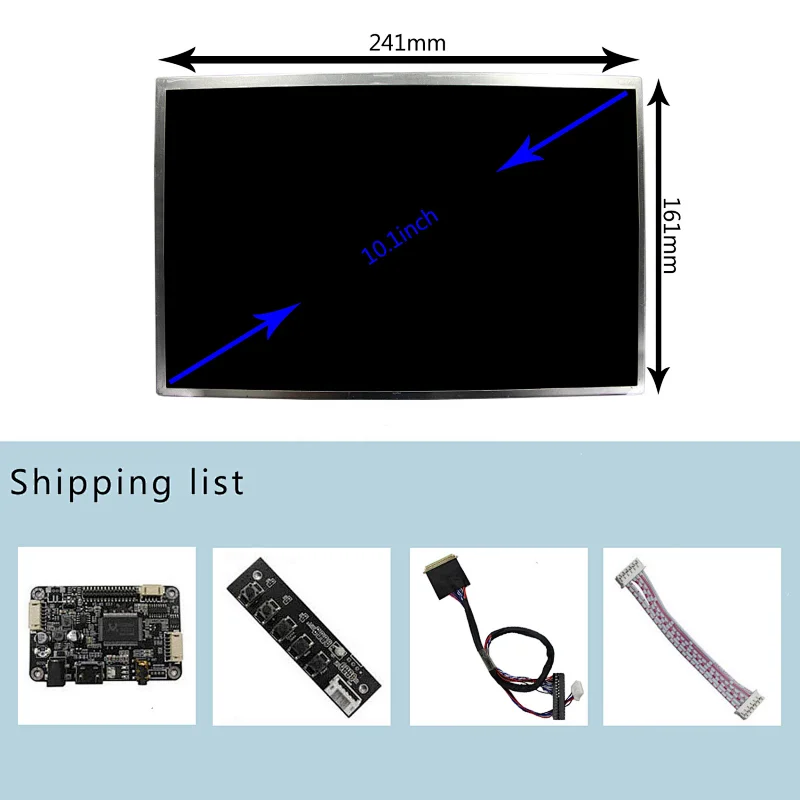

Packing list :

1× HDMI Audio LCD Controller Board
1×10.1inch B101EW05 1280X800 IPS LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
Specification
item
value
Type
IPS Screen
Display Size
10.1inch
Place of Origin
China
Guangdong
Model Number
K002766 VS-N5V3.1H+B101EW05
Brand Name
VS
Type
IPS
OSD
Brightness Contrast Auto Language And So On
lcd panel
10.1inch
Resolution
1280*800
Product Name
B101EW05
Backlight
WLED
Interface
LVDS
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
