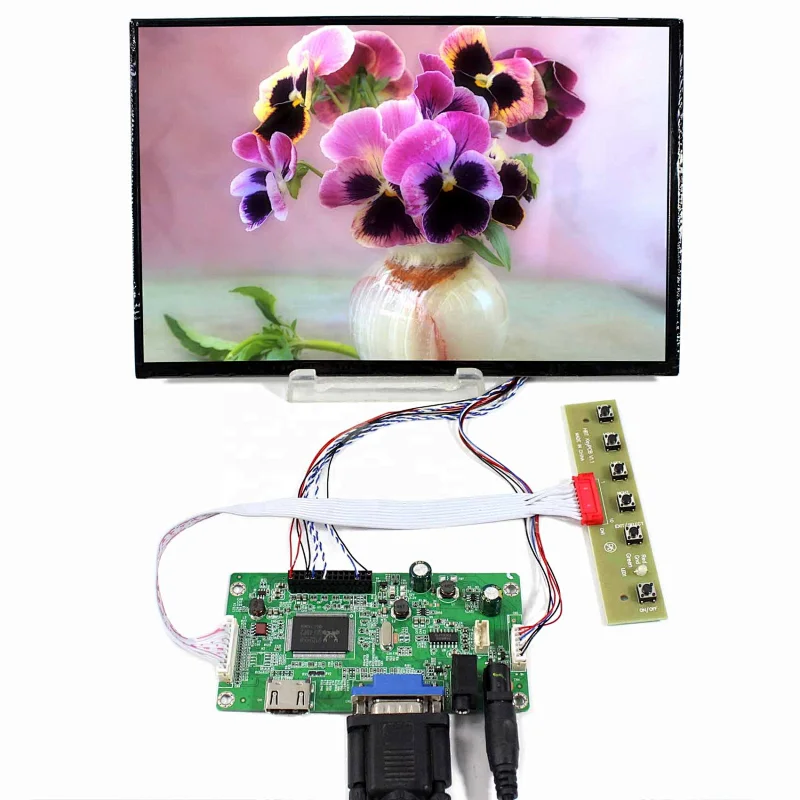

10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board

10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board

Model NO.
K001659 VS-RTD2556HV-V2+B101UAN01.A
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

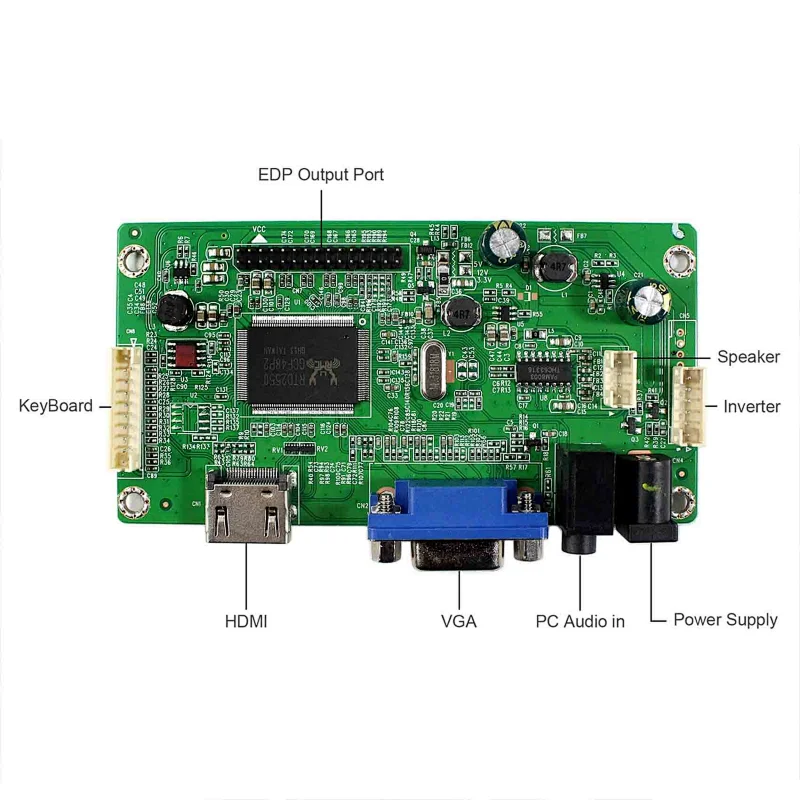

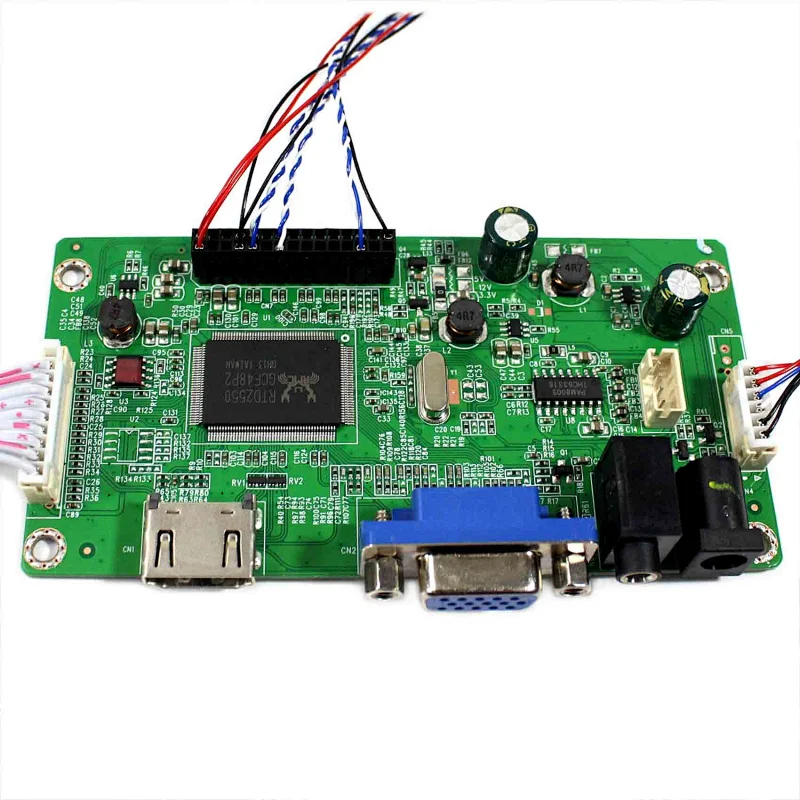

  • LCD Controller Board:
    HDMI VGA Board Work for 30Pin EDP LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Audio Input: HDMI PC-Audio In
    Audio Output: Speaker
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English
    Board Size: 107mm x 55mm x 16mm

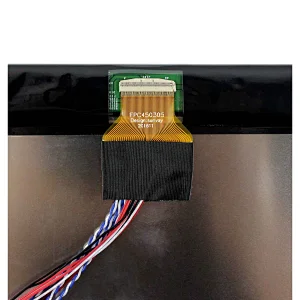

  • 10.1"B101UAN01.A 1920X1200 LCD Screen:
    Display Mode AHVA, Normally Black, Transmissive
    Resolution 1920RGB)×1200
    Outline Size 229.45 × 149.2×5 (H×V×D)
    Display Area 216.81 × 135.5 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface 40 pins  eDP (2 Lanes) , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× HDMI VGA LCD Controller Board VS-RTD2556HV-V2
    1× 10.1inch B101UAN01.A 1920X1200 LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
