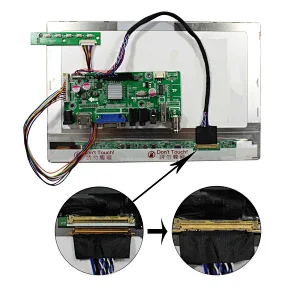

10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board

10.1inch B101EW05 1280X800 IPS LCD Screen with HD-MI VGA AV USB LCD Controller Board

Model NO.
K002827 VS-V59AV-V2+B101EW05
Delivery:
EXW or FOB Shenzhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Quantity:
  • LCD Controller Board:
    HD-MI VGA AV USB LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    HDMI Port Support Transform Audio Compatible With HD-MI 1.3/1.4HDCP 1.2
    USB Support Video
    AV Compatible With PAL And BNC
    Video Input: HD-MI VGA  AV USB
    Audio Input: HD-MI PC-Audio
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On

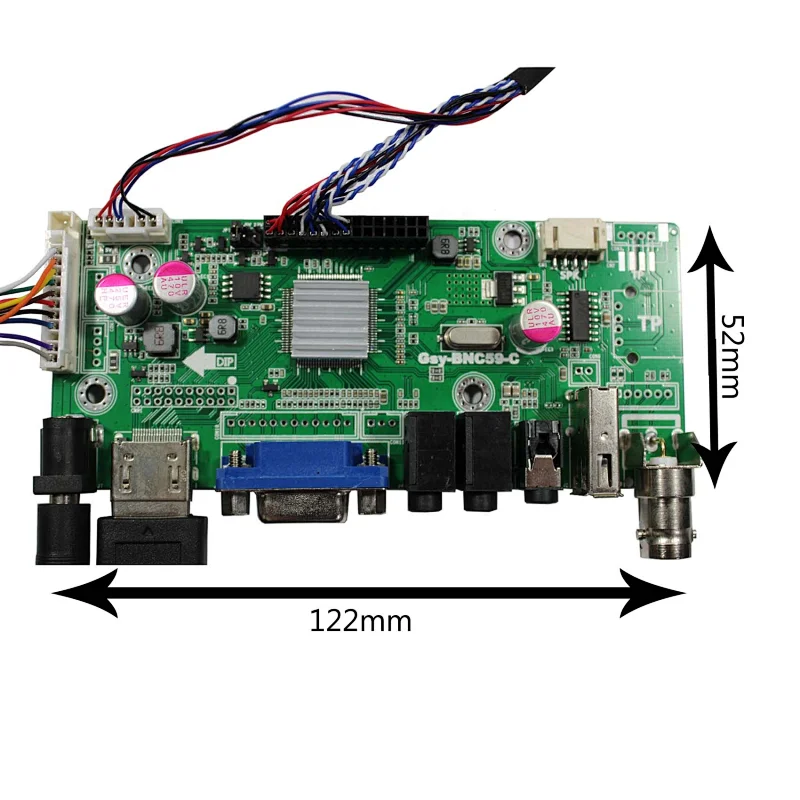

    Board Size:118mm x 54mm x 17mm
  • 10.1"B101EW05 1280X800 LCD Screen:
    Display Mode N, ADS, Normally Black, Transmissive
    Resolution 1280RGB)×800
    Outline Size 229.46 × 149.1× 5.2 (H×V×D)
    Display Area 216.96 × 135.6 (H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 1300:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
    Backlight WLED
    Input Voltage  3.3V (Typ.)
  • Packing list :
    1× HD-MI+VGA+AV+USB LCD Controller Board VS-V59AV-V2
    1×10.1inch B101EW05 1280X800 IPS LCD Screen
    1× Converter Board
    1× LVDS Cable
    1× Keyboard With Cable
