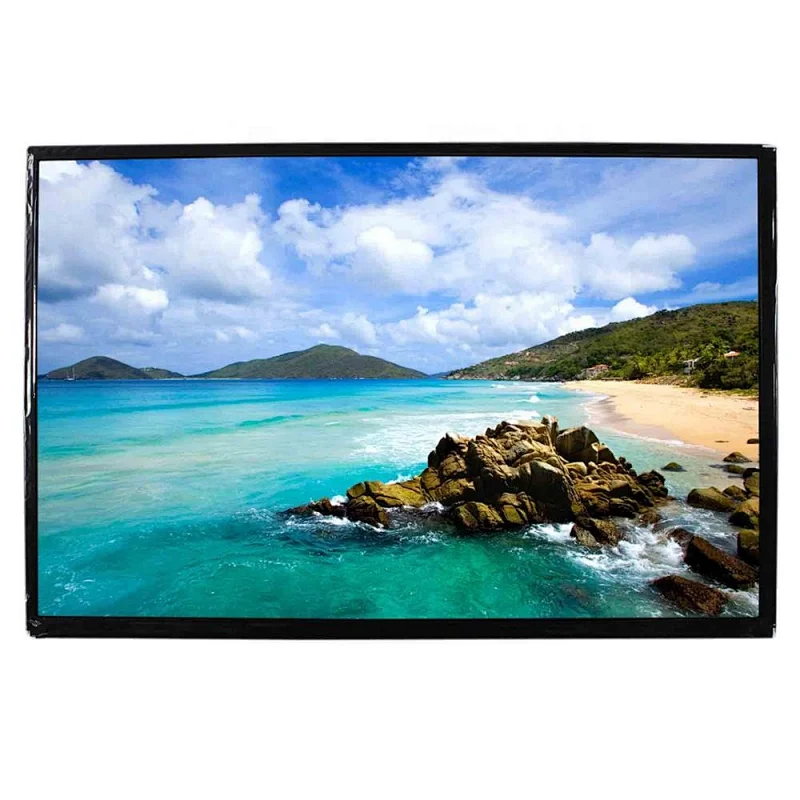

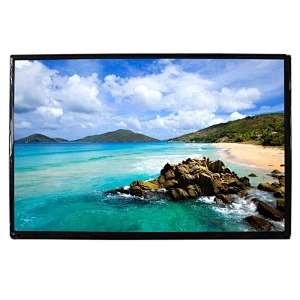

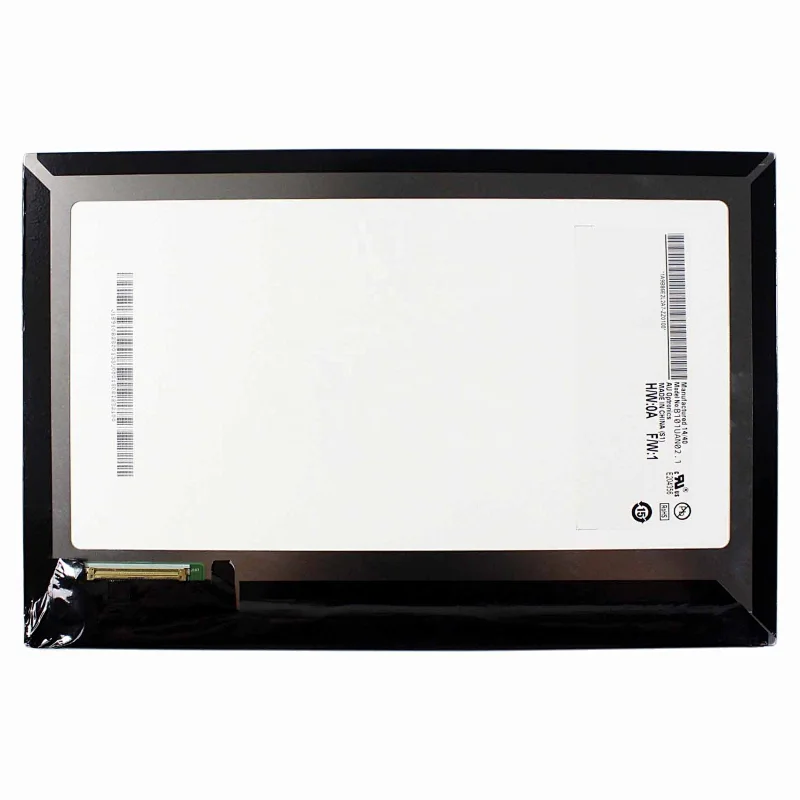

10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel
10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel

10.1inch LED LCD Screen B101UAN02.1 1920X1200 HD LCD Screen AHVA LCD Panel

Model NO.

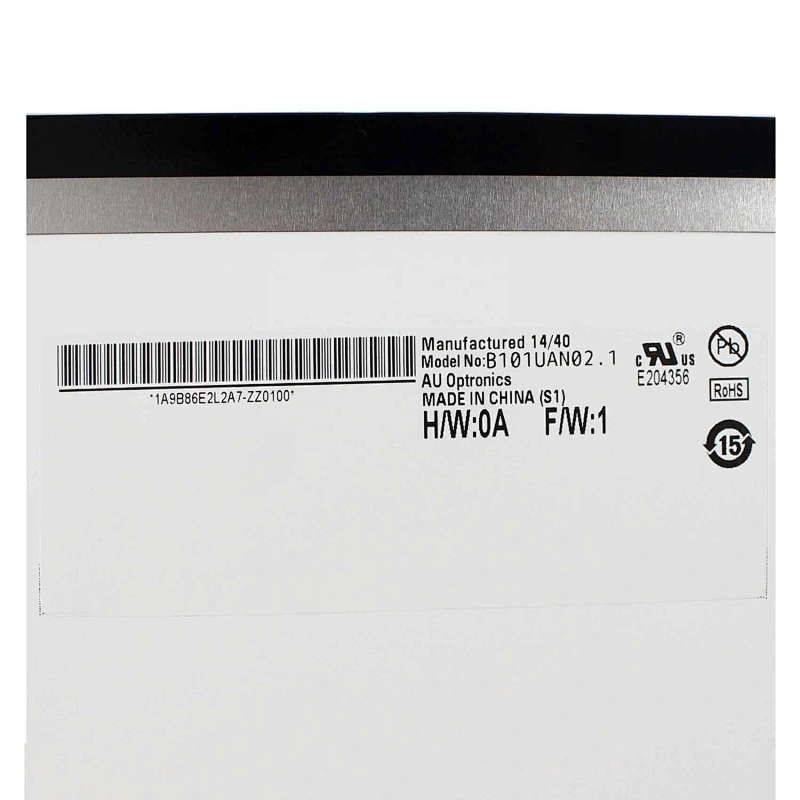

A000058 B101UAN02.1
Quantity:
  • 10.1"B101UAN02.1 1920X1200 LCD Screen:
    Display Mode  AHVA, Normally Black, Transmissive
    Resolution 1920RGB)×1200
    Outline Size 229.45 × 149.2×5 (H×V×D)
    Display Area 216.81 × 135.5 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (2 ch, 8-bit) , Connector , 50 pins
    Backlight  WLED
    Input Voltage  3.3V (Typ.)
  • Packing list :
    1× 10.1inch B101UAN02.1 1920X1200 LCD Screen
